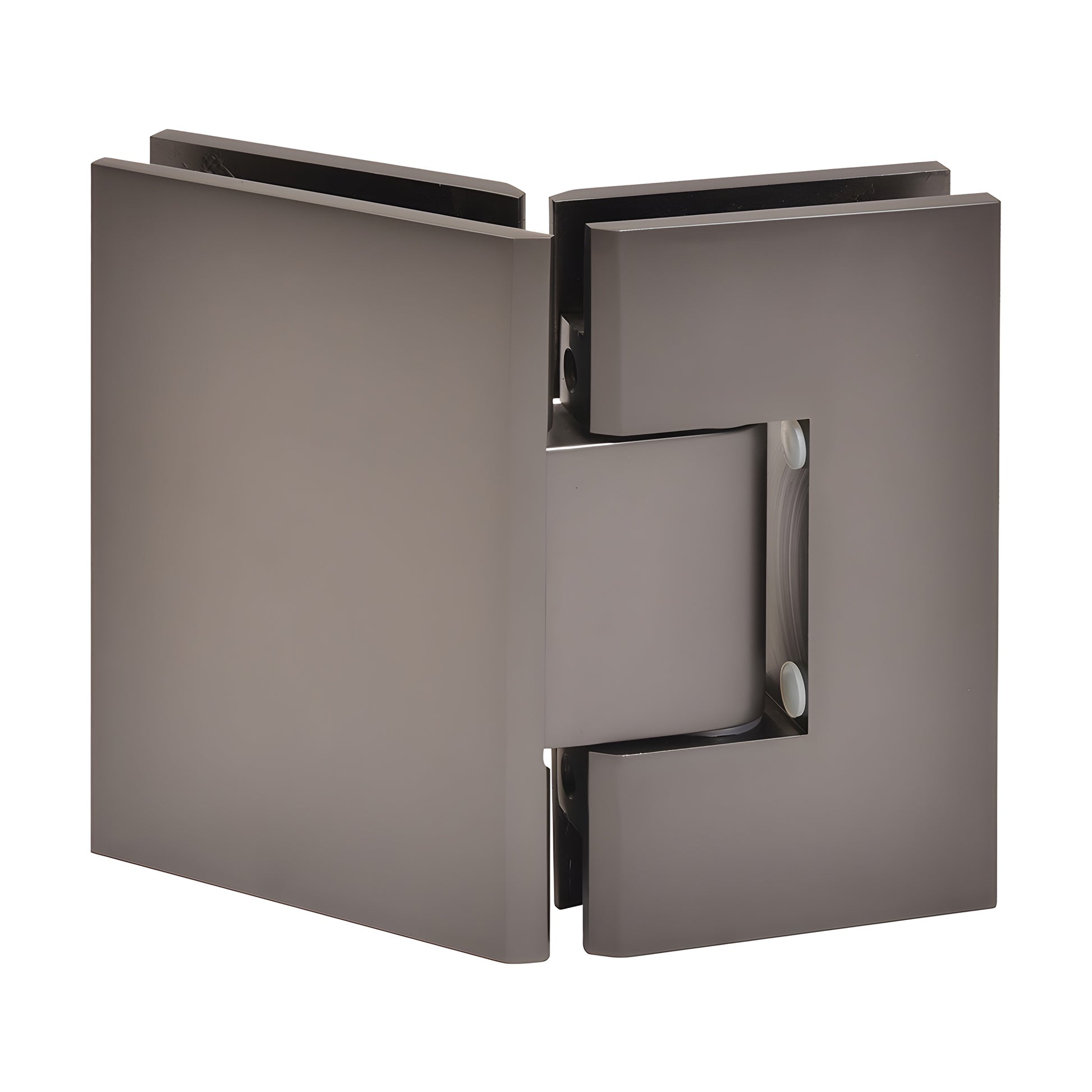

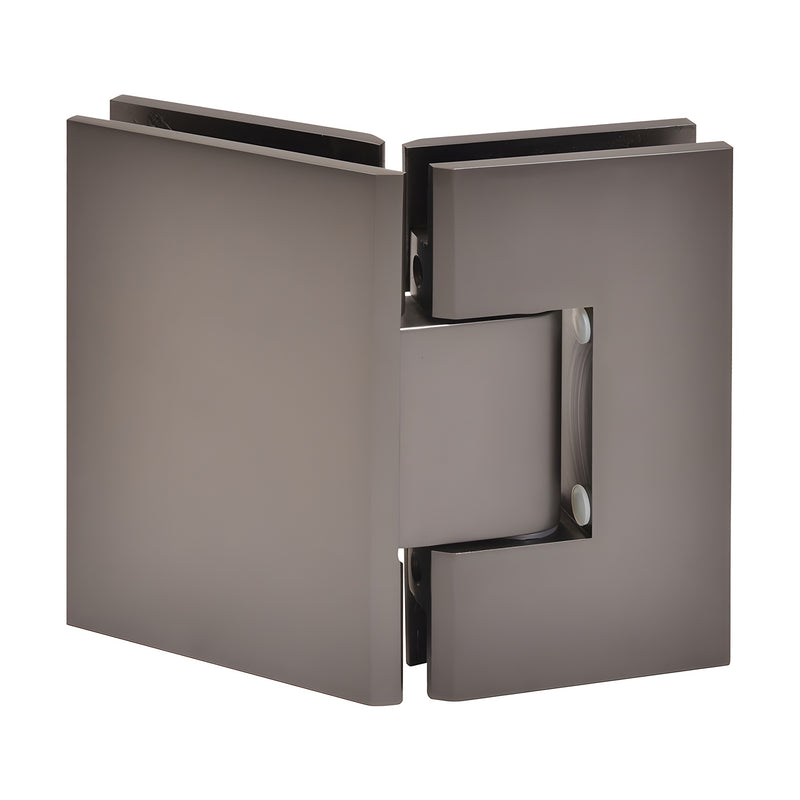

CRL Vienna 045 135° Matte Gunmetal Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 3 year warranty
• 135° glass-to-glass hinge for frameless shower doors
• Use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E045MGM) are engineered for wider, heavier frameless shower doors when standard hinges are not strong enough. Two internal steel pins provide mounting template options: leave both pins in place for compatibility with CRL "mouse-ears" cut-outs, or remove the pins to increase adjustability for CRL rectangular square-corner cut-outs and, in some cases, competitive rectangular cut-outs. These heavy glass shower door hinges are optimized for reliable performance and long-term durability.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models are set at 85° for a 5° tighter closure into the shower interior. Rotate (do not flip) the pin to activate the alternate angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify up to 45°) when the standard 5° adjustment does not achieve the desired door closing position.

Load Capacity:

• Using two hinges with 3/8"–1/2" glass: holds up to 110 lbs (50 kg); maximum door width 36" (914 mm).
• Using three hinges with 3/8"–1/2" glass: holds up to 140 lbs (63 kg); maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: See model-specific cut-out. (Except V1E092 which requires cut-out for door and two holes for fixed panel.)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request — contact CRL Technical Sales, Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; CRL cut-out dimensions may differ from other
