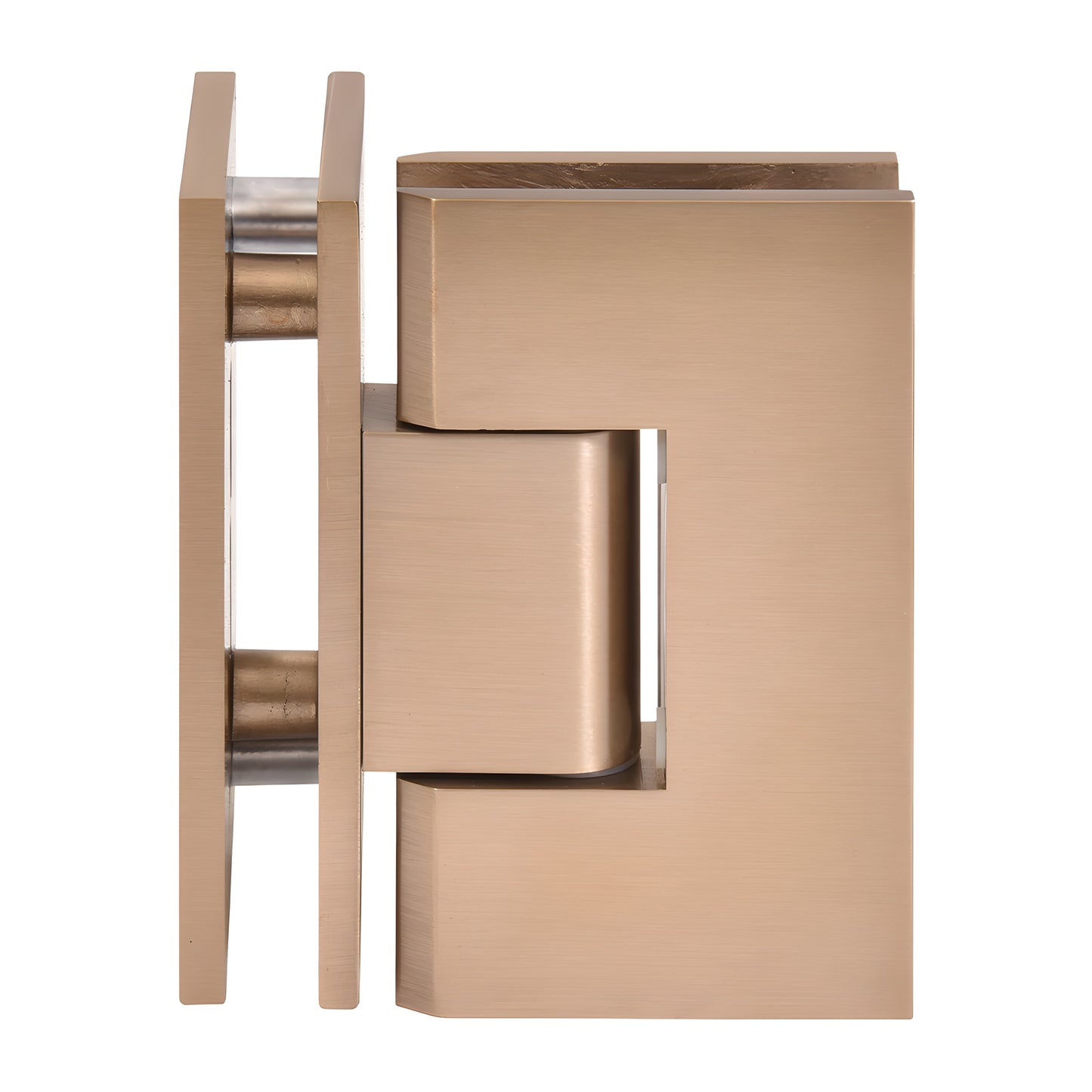

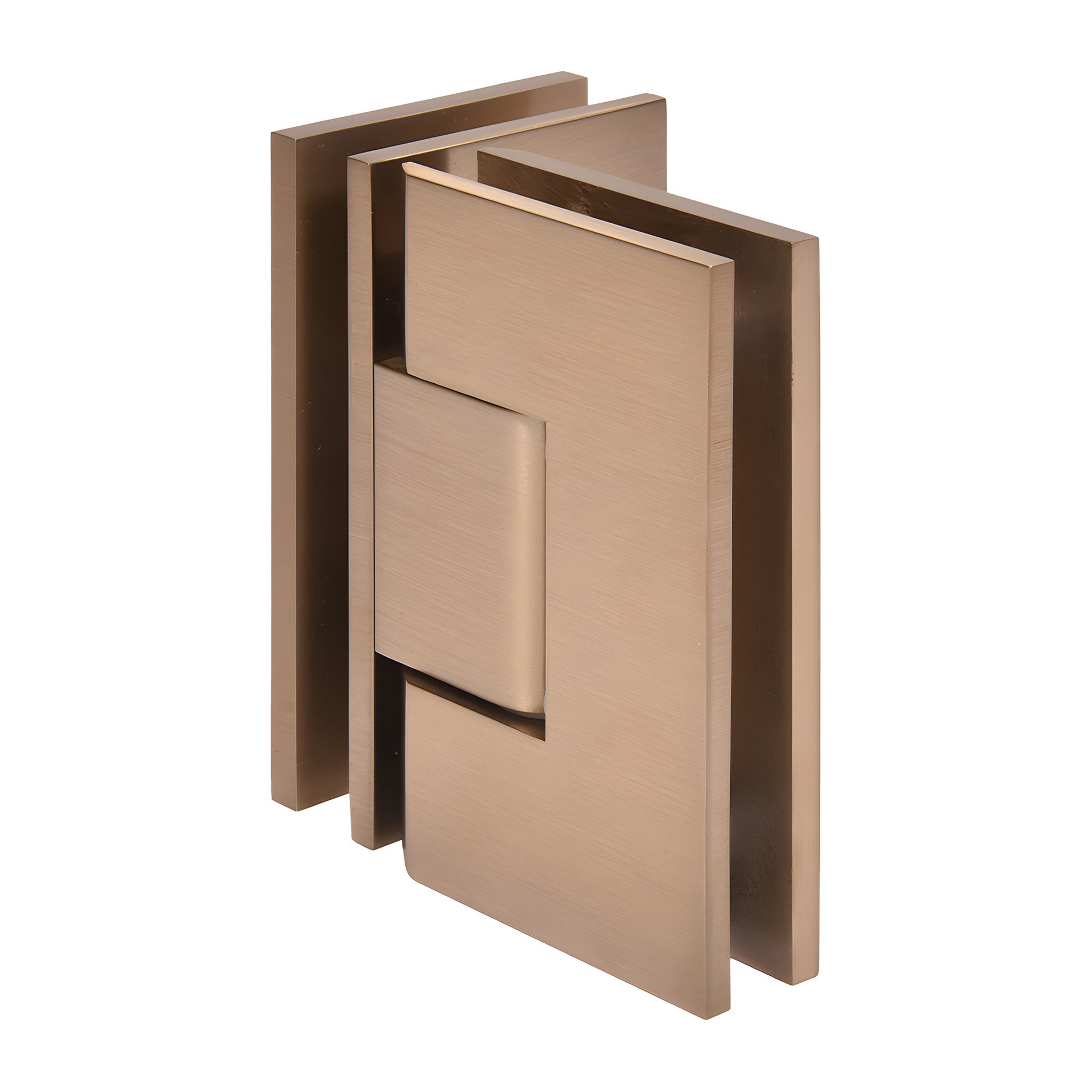

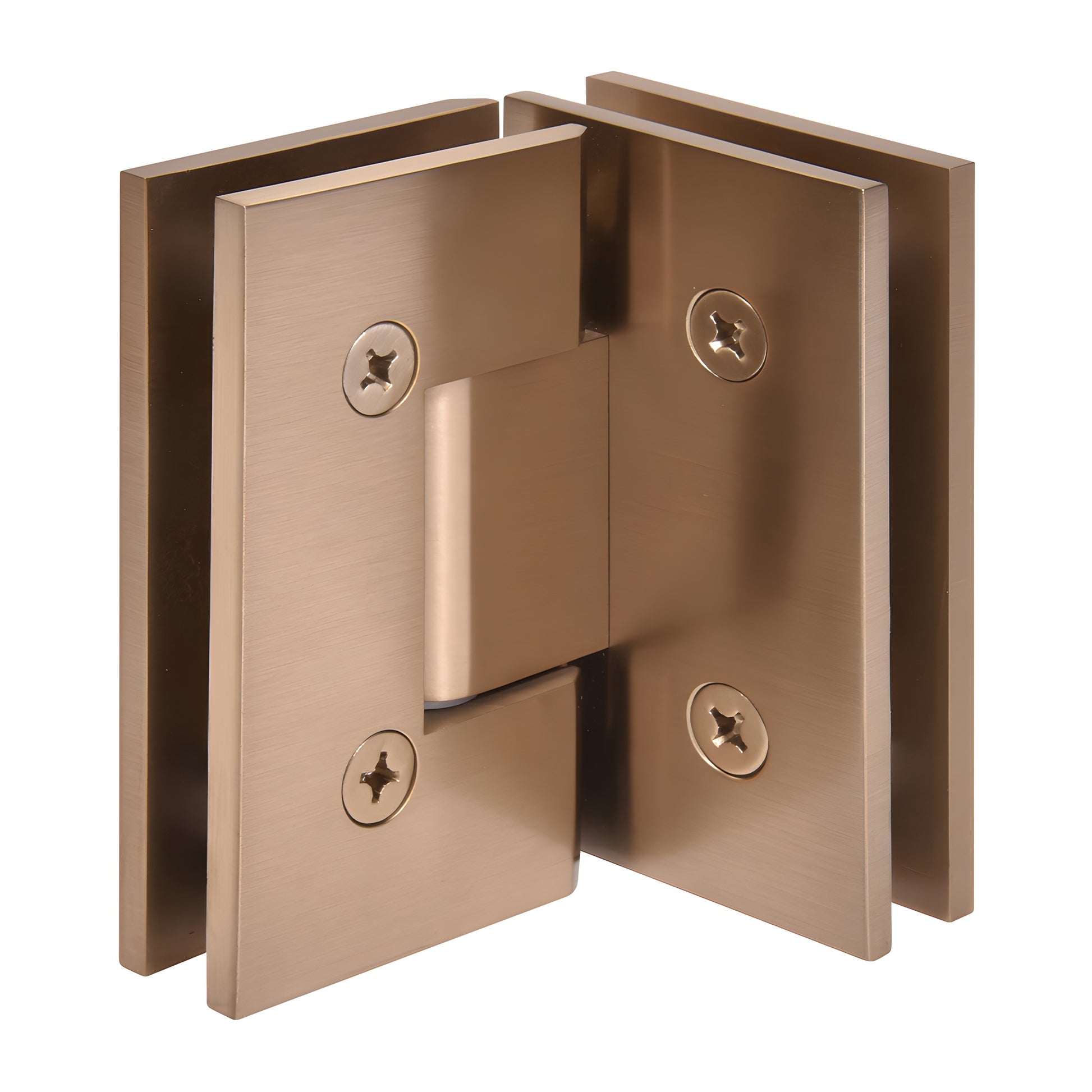

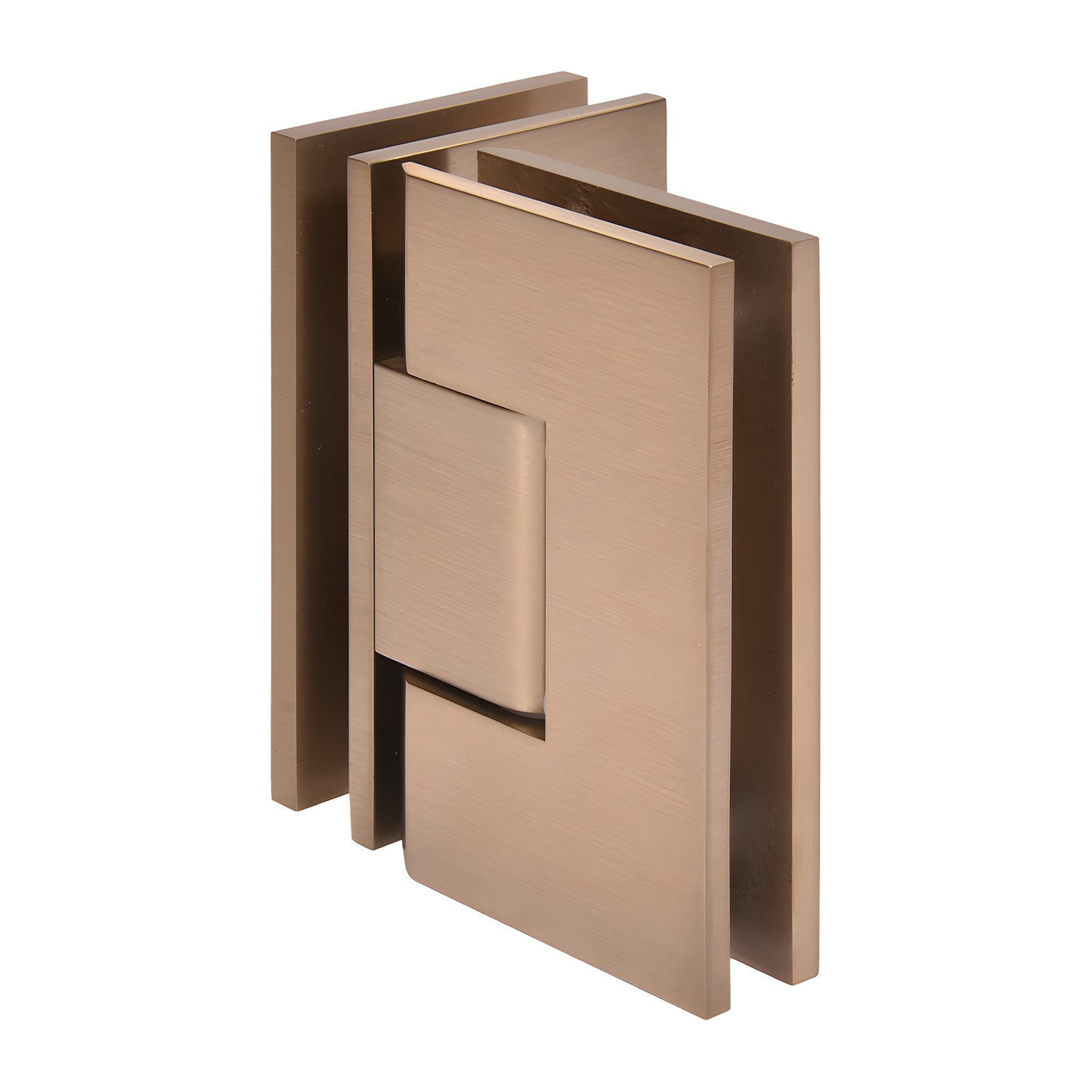

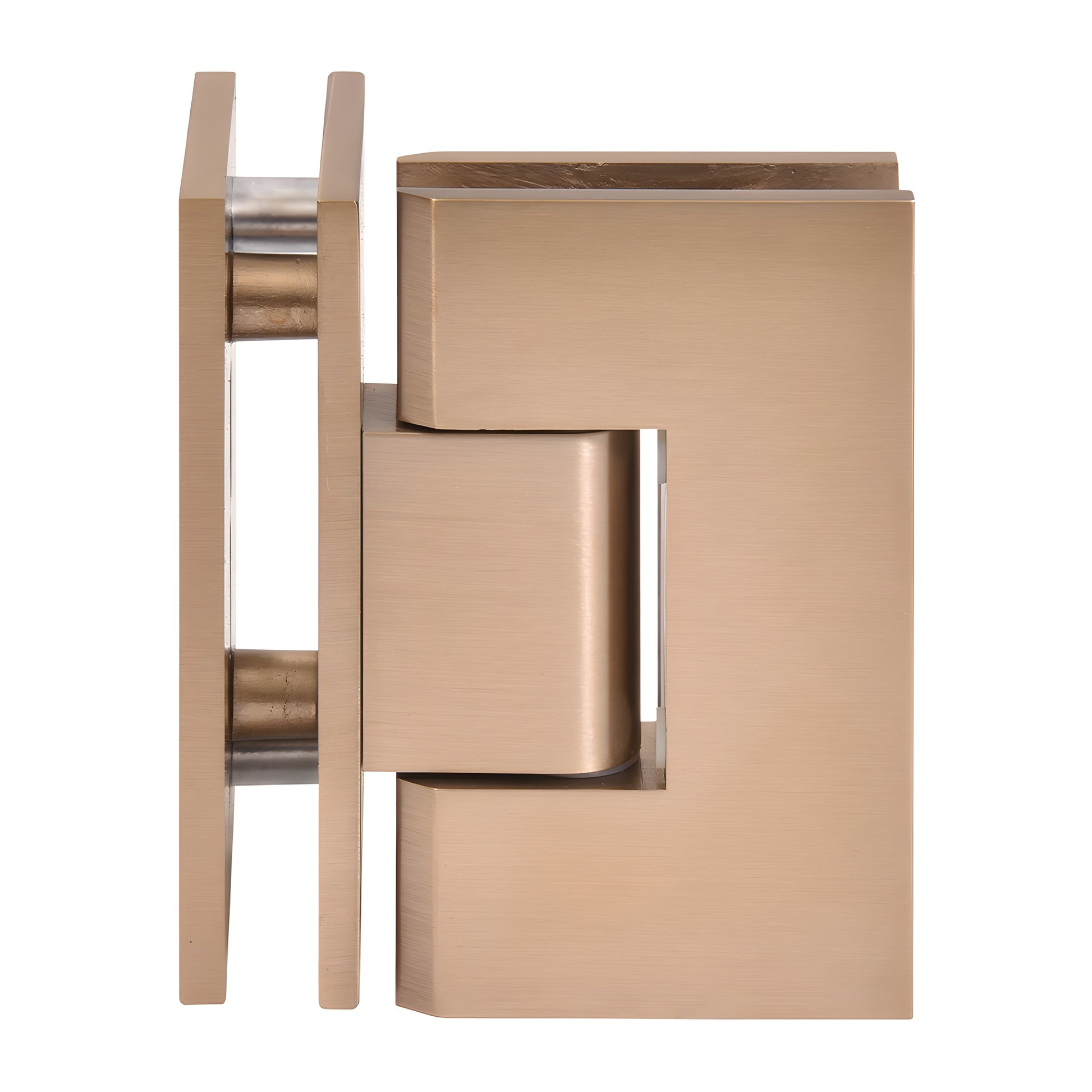

CRL Vienna 092 90° Glass-to-Glass Shower Hinge, Dark Brushed Bronze

• Fits 3/8" to 1/2" (10–12 mm) monolithic tempered glass
• Glass-to-glass 90° shower hinge for frameless glass doors
• Available in several durable finishes (custom finishes on request)
• 3‑year warranty
• Designed for residential and hotel shower door installations

CRL Vienna Hinges (SKU: V1E092DBBZ) provide a heavy‑duty solution for wider, heavier frameless shower doors when standard hinges are insufficient. Solid brass construction and internal dual steel pins offer two mounting templates: leave pins in for compatibility with CRL "mouse‑ears" cut-outs, or remove the pins for increased adjustability and fit with CRL rectangular (square‑corner) cut-outs — in some cases fitting competitive rectangular cut‑outs as well.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Rotate (do not flip) the pin to select the 85° pre‑set for a 5° tighter closure into the shower interior.

CUSTOM PIVOT PIN: Custom pivot pins are available for off‑angle installations (specify up to 45°) when the standard 5° does not achieve the desired door closing position.

CAPACITY:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs (50 kg), max door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lbs (63 kg), max door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass for corrosion resistance and long service life
Hinge Swings: 90° in and 90° out (glass‑to‑glass 90° configuration)
Closing Type: Self‑centering when within 15° of closed position
Cut‑Out Required: Except V1E092 — requires cut‑out for door plus two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request. Contact CRL Technical Sales, Shower Door Department.

Product Warning:
CRL shower door hinges are intended for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template supplied
