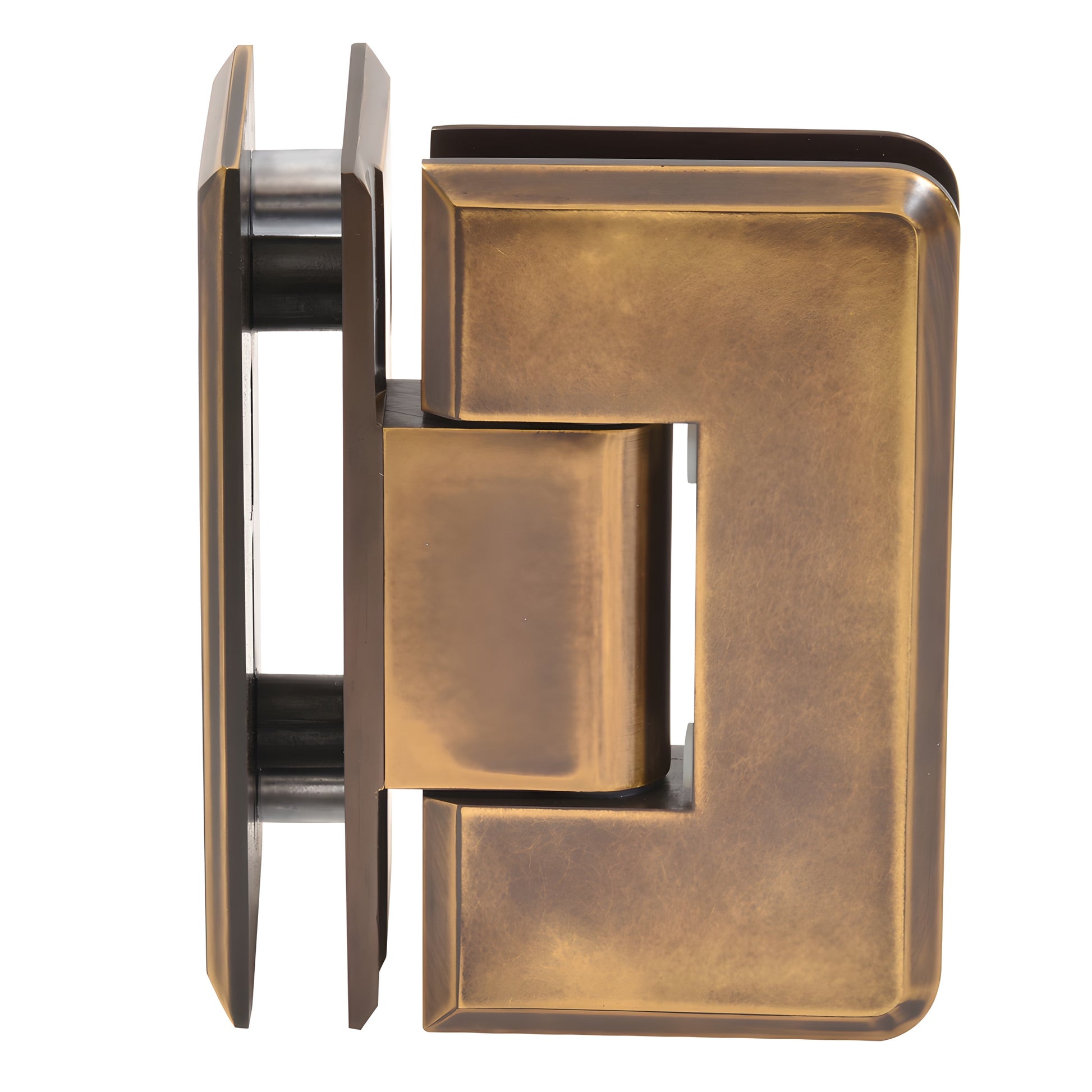

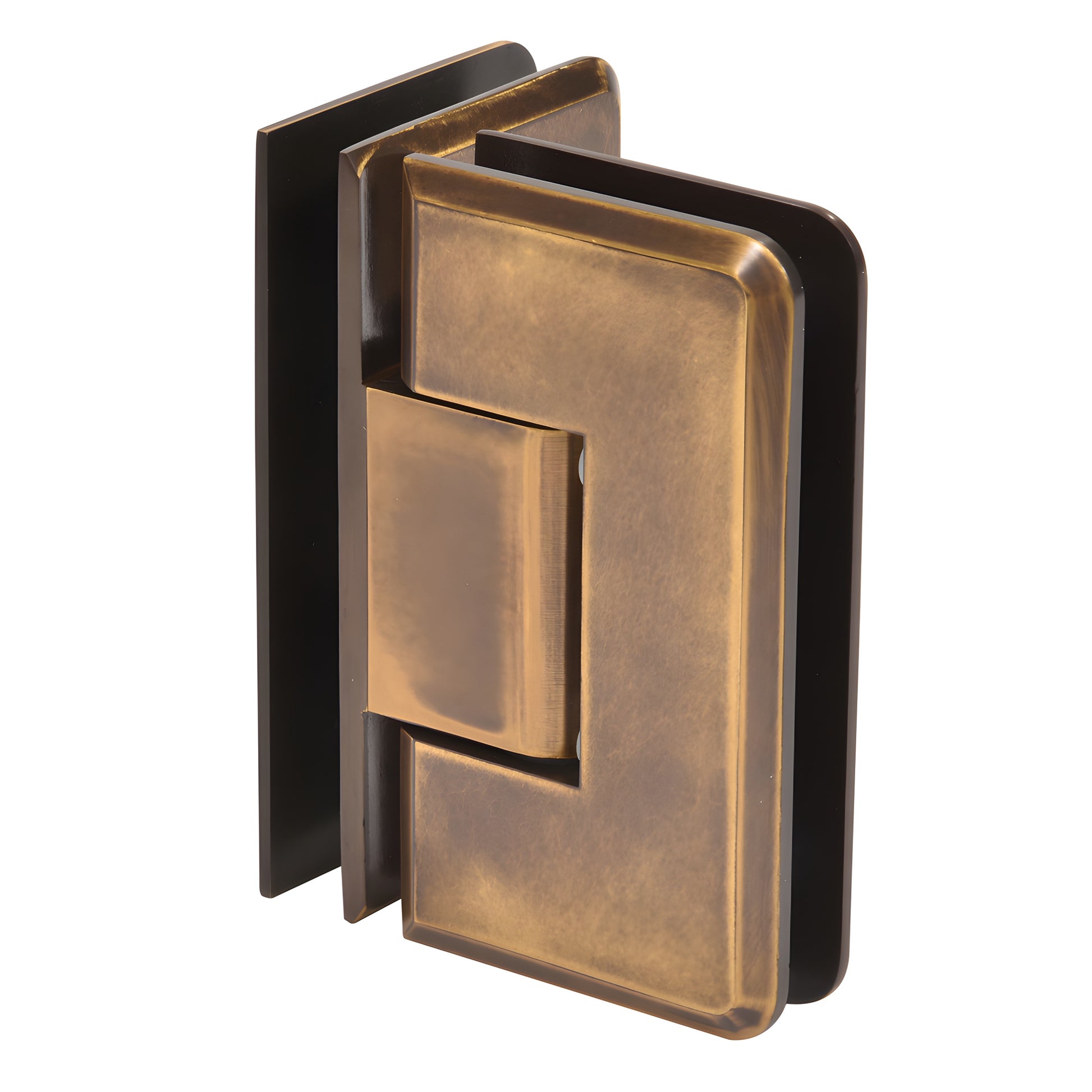

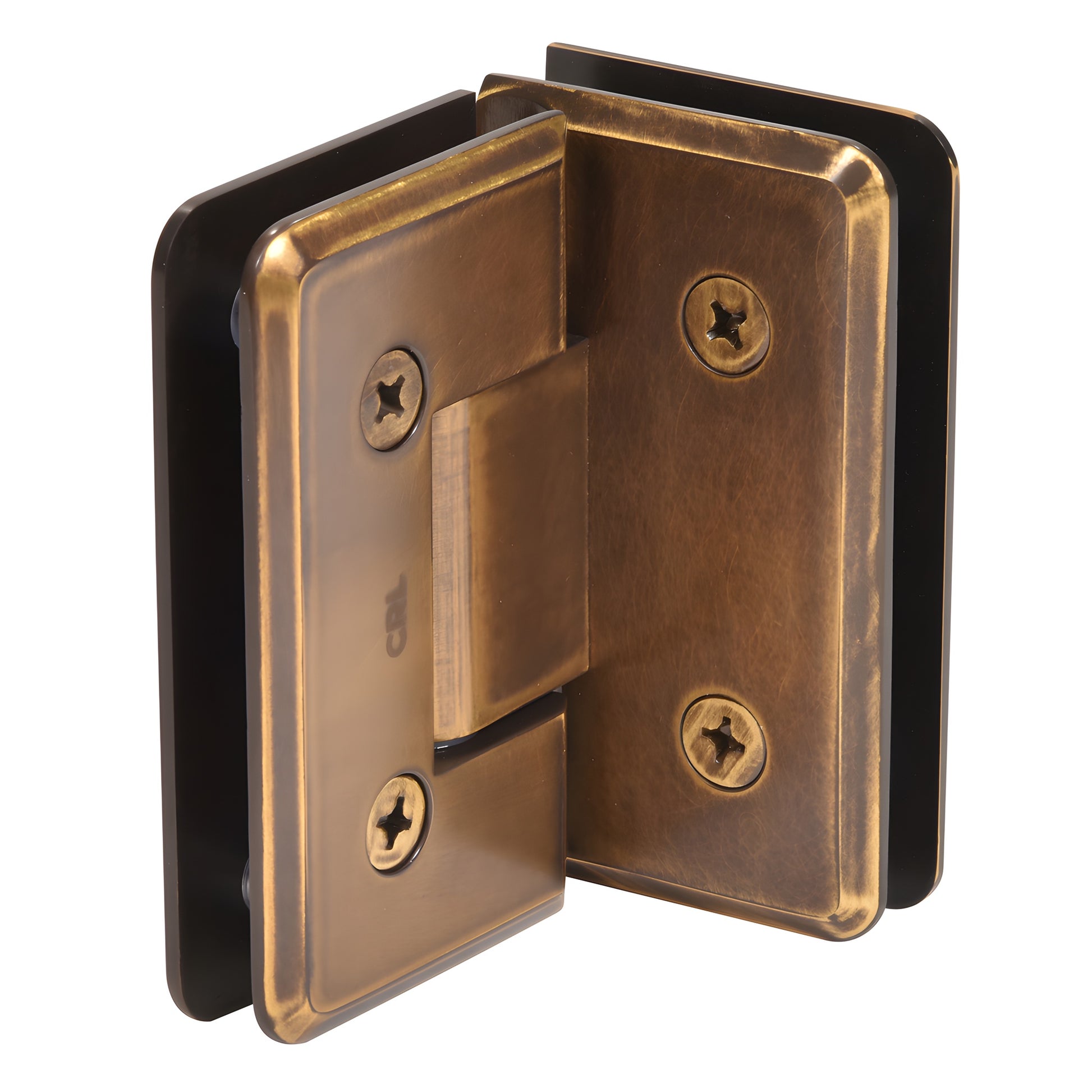

CRL Vintage Brass Cologne 092 Series 90º Glass-to-Glass Hinge
CRL Vintage Brass Cologne 092 Series 90º Glass-to-Glass Hinge
Regular price
$303.69 CAD
Regular price
Sale price
$303.69 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C0L092VBR
Shipping Weight: 2.64 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.64 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

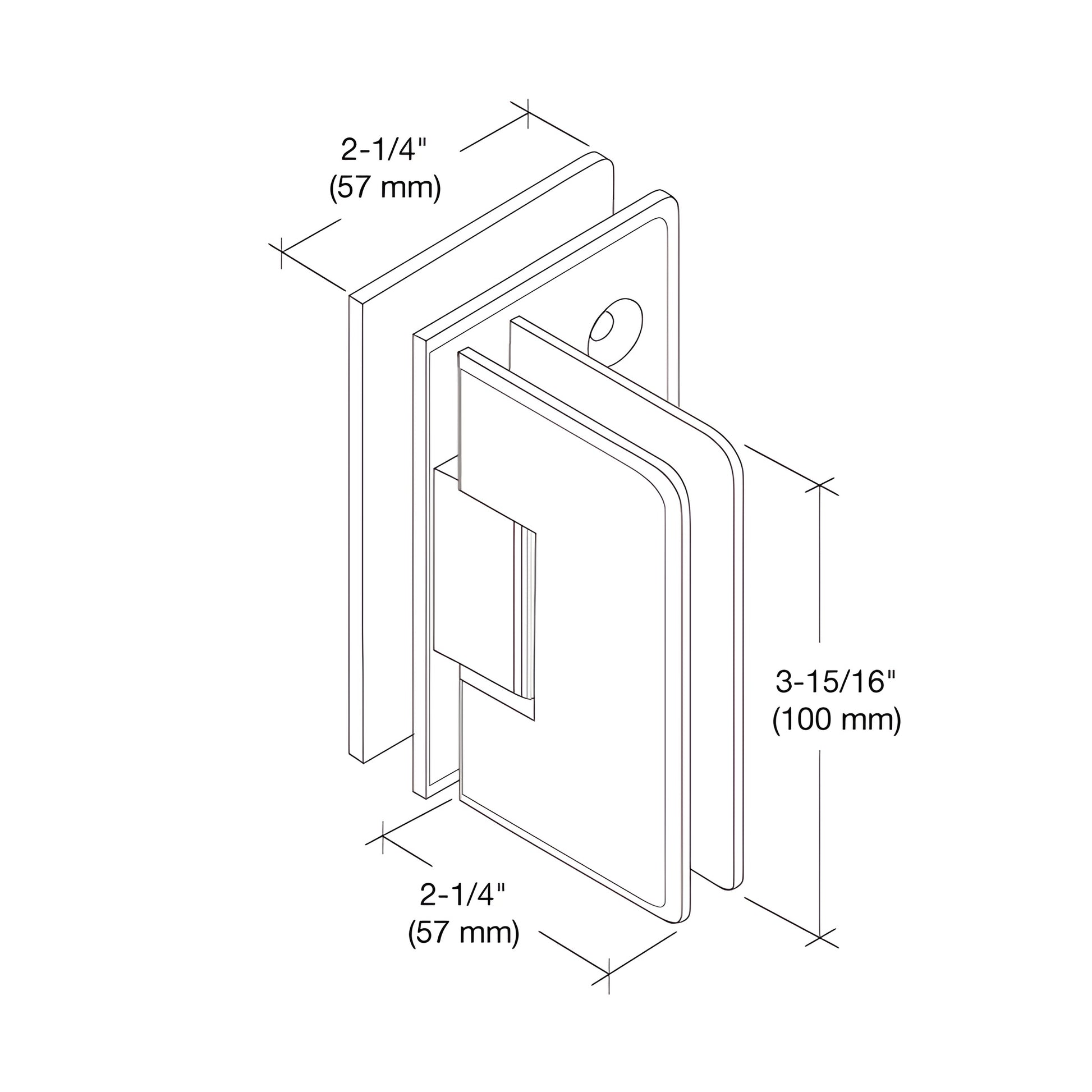

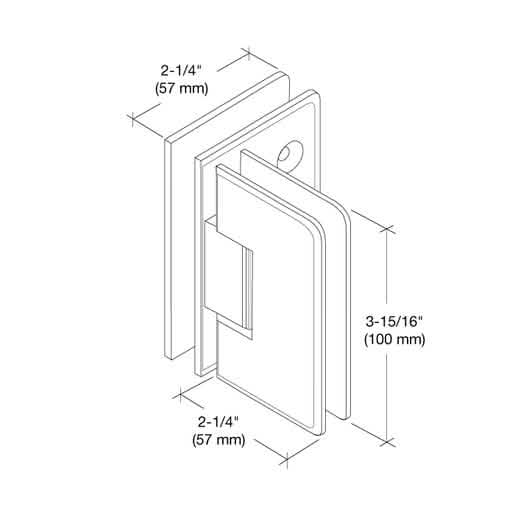

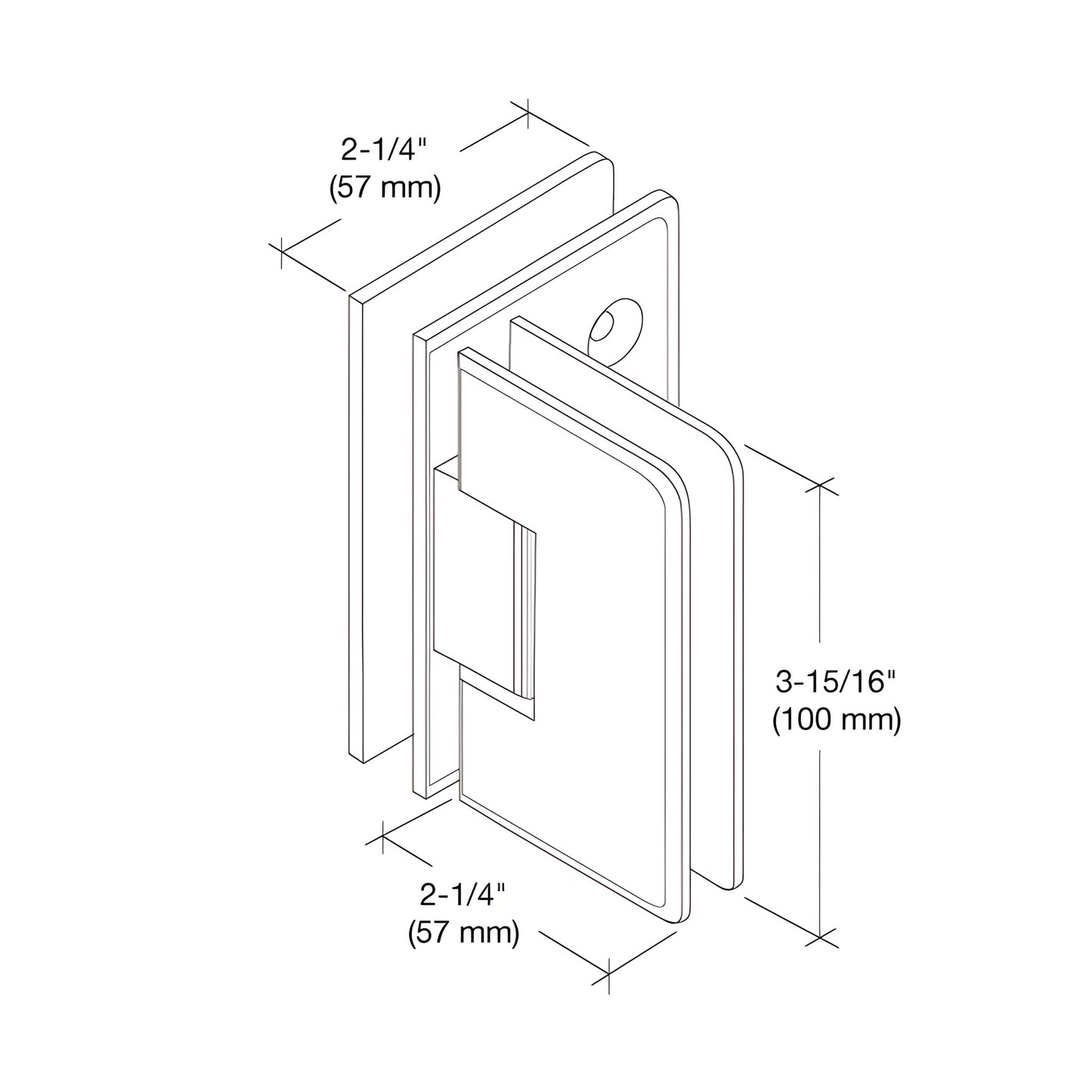

| Edge | Profile Beveled |
| Finish/Color | Vintage Brass |
| Glass To Glass Angle | 90 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height 3-15/16 in. | (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque 60 lbf.in | (677.9 cN.m) |
| Maximum Door Weight - 2 Hinges 110 lbs. | (49.9 kg) |
| Maximum Door Weight - 3 Hinges 140 lbs. | (63.5 kg) |
| Maximum Door Width 36 in. | (914 mm) |
| Mounting | Type Glass To Glass |
| Self-Centering Yes | Cologne |
| Width - Door Portion 2-1/4 in. | (57 mm) |
| Width - Sidelite Portion 2-1/4 in. | (57 mm) |
Overview
CRL Cologne Hinges are expertly designed for 3/8" to 1/2" (10 to 12 mm) glass and are available in multiple elegant finishes.
These 90º glass-to-glass hinges feature radius corners and beveled edges, offering a sleek appearance ideal for wider and heavier doors that standard hinges cannot support.
With reversible pivot pins and customizable options, Cologne Hinges provide enhanced adjustability and compatibility with both CRL and competitive rectangular cut-outs.
Made from solid brass, they ensure durability and self-centering functionality.
For custom finishes and specific installations, consult CRL's Technical Sales Department.
Note: These hinges are intended for residential or hotel shower use, and the included template should be used for cut-outs.
These 90º glass-to-glass hinges feature radius corners and beveled edges, offering a sleek appearance ideal for wider and heavier doors that standard hinges cannot support.
With reversible pivot pins and customizable options, Cologne Hinges provide enhanced adjustability and compatibility with both CRL and competitive rectangular cut-outs.
Made from solid brass, they ensure durability and self-centering functionality.
For custom finishes and specific installations, consult CRL's Technical Sales Department.
Note: These hinges are intended for residential or hotel shower use, and the included template should be used for cut-outs.
