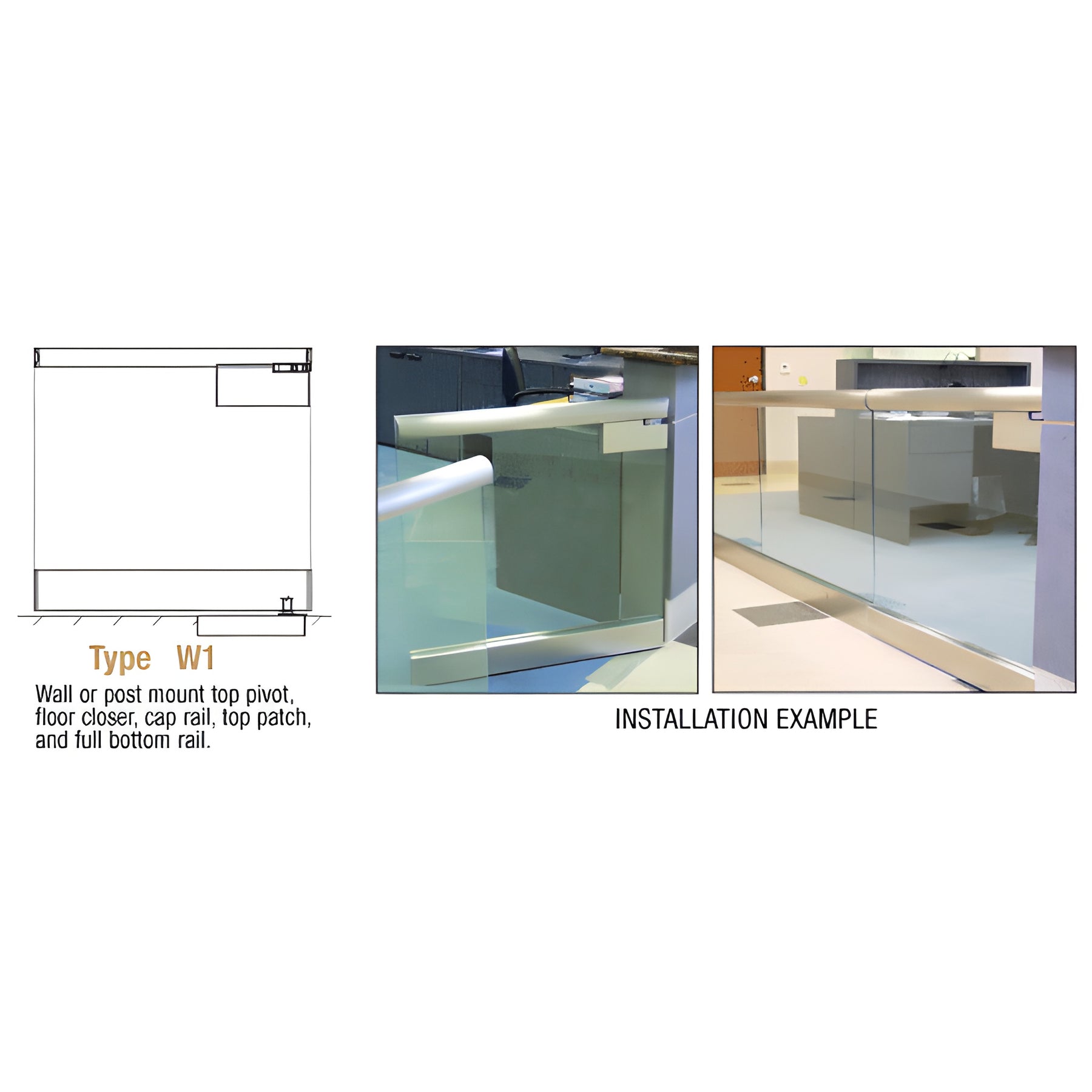

CRL W1 Brushed Stainless Steel Wide Gate Rail w/ U-Channel Cap

• 16 configurations to choose from
• Wall or post mount models (wall mount swinging gate, post mount swinging gate)
• Four handing options for left or right swing
• Finishes: stainless steel, anodized, and painted
• Custom fabricated to your requirements — optional locks available

We have developed a CRL Series of Swinging Gates (SKU: SGW1BS10WC) for commercial and residential applications, including compatibility with our HRS Glass Rail System. These custom commercial swinging gates are derived from our Wedge-Lock® Door Rail System and can be combined with HRS Cap Rails. The bottom rail can be widened to align with an adjacent fixed railing base shoe. The upper patch fitting is modified for mounting to a stainless steel bracket or to accommodate a cap rail. The gate pivots on a heavy-duty ball bearing at the top and a floor-mounted commercial door closer at the bottom; the floor closer always returns the gate to the closed position and features adjustable closing speed for precise control.

NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Please contact CRL Technical Sales for specifications, lead time, or a quote.

Stainless Steel Advisory:

Order a custom CRL Series swinging gate today — contact CRL Technical Sales for a quote and lead time.
