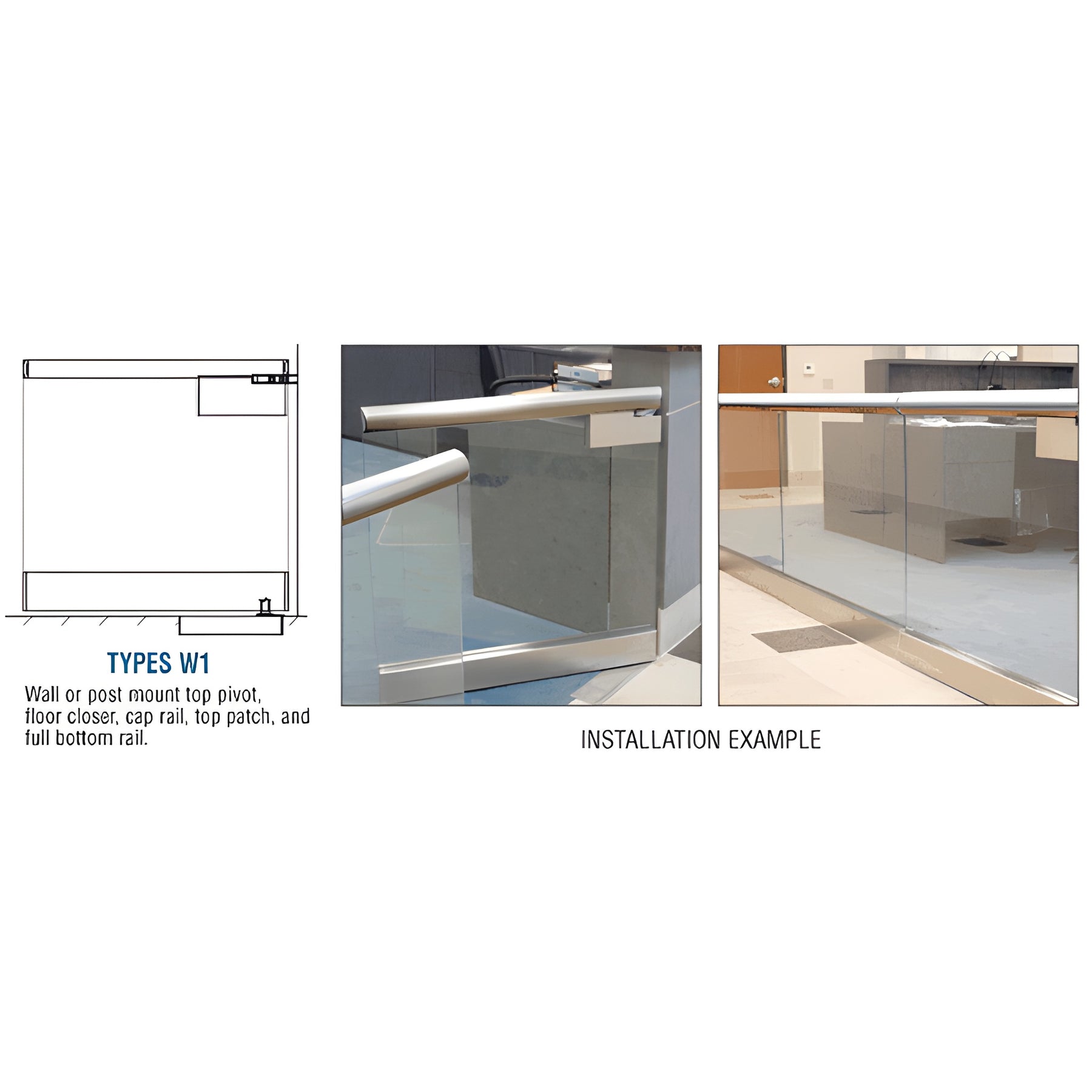

CRL Polished Stainless W1 Series Gate Wide Rail With Top Cap

• 16 Configurations to Choose From
• Wall or Posted Mount
• Four Handing Options
• Stainless Steel, Anodized, and Painted Finishes
• Every Swinging Gate is Custom Fabricated to Your Requirements
• Optional Locks Available

We have developed a

CRL Series of Swinging Gates

for commercial or residential use, either alone or with our HRS Glass Rail System. The gates are an offshoot of our Wedge-Lock® Door Rail System and can be combined with our HRS Cap Rails. The bottom rail can be widened to match the width of an adjacent fixed railing Base Shoe. The upper patch fitting is modified to allow for mounting to a stainless steel bracket, and may also be modified to accommodate a Cap Rail. The top of the Gate pivots on a heavy-duty ball bearing, while the bottom pivots on a floor mounted commercial door closer. The floor closer always returns the Gate to the closed position, and the closing speed is adjustable. All Swinging Gates are custom fabricated to your specifications. Available in either Wall Mount or Post Mount models.

Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Please contact

CRL Technical Sales

for more information or a quote.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
