CRL W1 Polished Stainless Steel Wide Gate Rail with U-Channel Cap

• 16 Configurations to Choose From
• Wall or Post Mount models (Wall Mount or Posted Mount)
• Four handing options (left/right, in/out)
• Finishes: Stainless Steel, Anodized, and Painted
• Custom fabricated swinging gate to your specifications
• Optional locks available

SKU: SGW1PS10WC

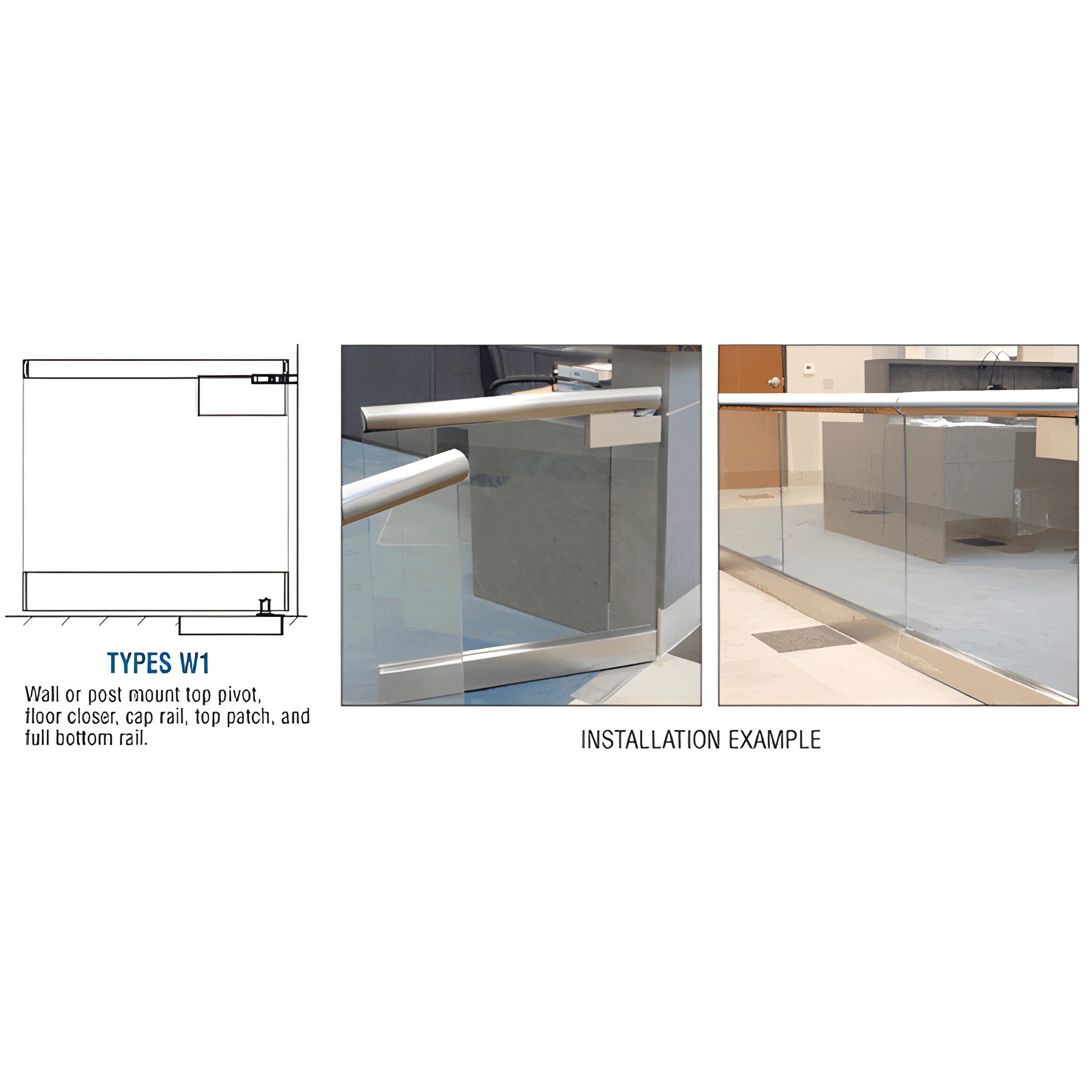

We developed the CRL Series Swinging Gates for commercial and residential applications as standalone units or integrated with the HRS Glass Rail System. These custom-fabricated swinging gates are derived from our Wedge-Lock® Door Rail System and can be used with HRS Cap Rails. The bottom rail can be widened to match adjacent fixed railing Base Shoe widths. The top uses a heavy-duty ball bearing pivot with a modified upper patch fitting for mounting to a stainless steel bracket or accommodating a Cap Rail. The bottom pivot employs a floor-mounted commercial door closer that always returns the gate to the closed position with adjustable closing speed—ideal for glass railing installations and high-traffic commercial entries.

Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact CRL Technical Sales for a quote or custom specifications.

Stainless Steel Advisory:

Custom, durable, and engineered for glass railing systems—request a quote or contact CRL Technical Sales to order your CRL Series Swinging Gate today.
