CRL Wall-Mount Glass Swing Gate Top Pivot, 2in Brushed Stainless Rail
CRL Wall-Mount Glass Swing Gate Top Pivot, 2in Brushed Stainless Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGW2BS20C
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cap Rail Diameter
2 in. (51 mm)
Finish/Color
Brushed Stainless Steel
Overview

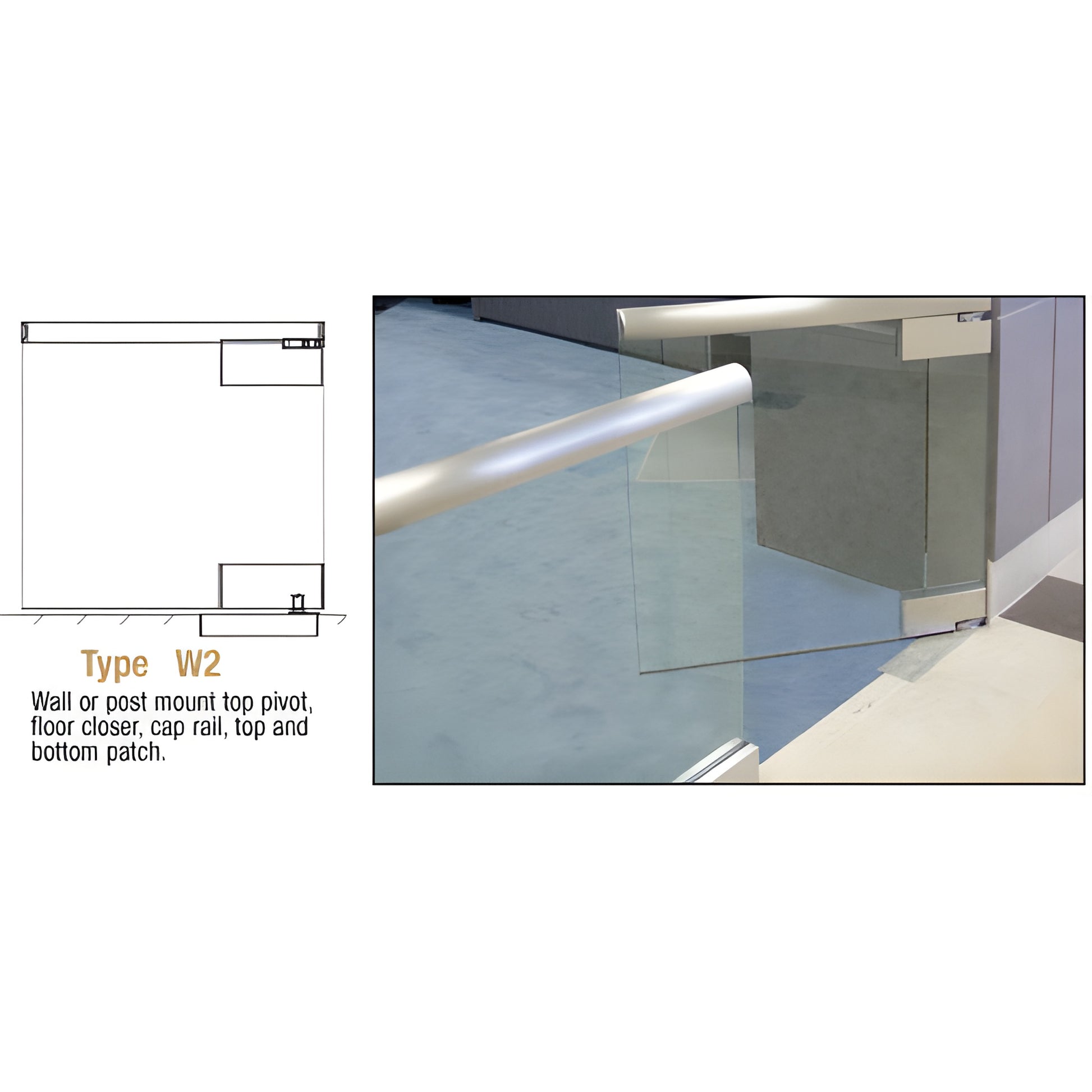

- Heavy-Duty Glass Gate with Cap Rail
- Beautiful in Design and Functional in Operation
- Custom Fabricated to Meet Your Design Requirements
CRL's CRL Series of Swinging Gates (SKU: SGW2BS20C) are heavy-duty glass swing gates designed for commercial and residential applications. Engineered as an offshoot of the Wedge-Lock® Door Rail System, these gates integrate seamlessly with the HRS Glass Rail System and optional HRS Cap Rails. The bottom rail can be widened to align with adjacent fixed railing Base Shoe widths. Upper patch fittings are modified for mounting to stainless steel brackets or to accommodate a Cap Rail.
The gate pivots on a heavy-duty ball bearing at the top and a floor-mounted commercial door closer at the bottom. The floor closer automatically returns the gate to the closed position and includes adjustable closing speed. Available as Wall Mount or Post Mount models. All Swinging Gates are custom fabricated to your specifications.
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact CRL Technical Sales for detailed quotes, lead times, or to request exact shipping weight.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
Need a custom heavy-duty glass gate with cap rail for your project? Contact CRL Technical Sales today for a quote and lead time.
Specifications
CAD Drawings - pdf
