CRL White 240" Length Hat Channel for Fixed Glazing
CRL White 240" Length Hat Channel for Fixed Glazing
Regular price
$469.05 CAD
Regular price
Sale price
$469.05 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HC1WH240
Shipping Weight: 12.0 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Warning: Reproductive Harm
www.p65warnings.ca.gov
Unit of Measure: Pack of 1
Shipping Weight: 12.0 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Must Call For Shipping Rate
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Packing Charge is $6.50 for quantity less than 5.0
Minimum Order Quantity: 1Unit of Measure: Pack of 1
Description
| Finish/Color | Gloss White |
| Flange Width 2-5/16 in. | (59 mm) |
| Glazing Thickness | 3/8 in. or 1/2 in. (10 mm or 12 mm) |
| Height 1-3/4 in. | (44 mm) |
| Length 240 in. | (6096 mm) |
| Width 1 in. | (25 mm) |
Overview

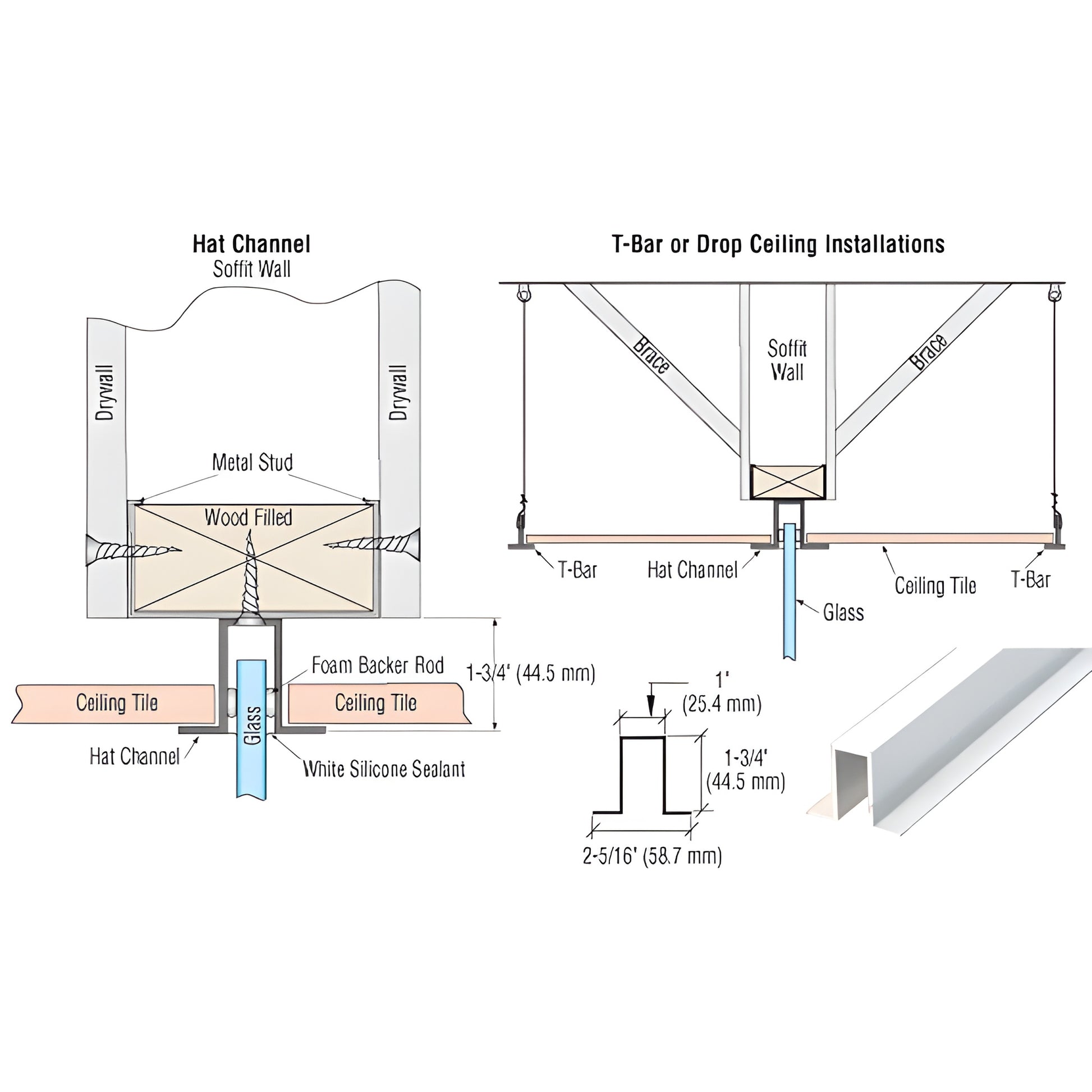

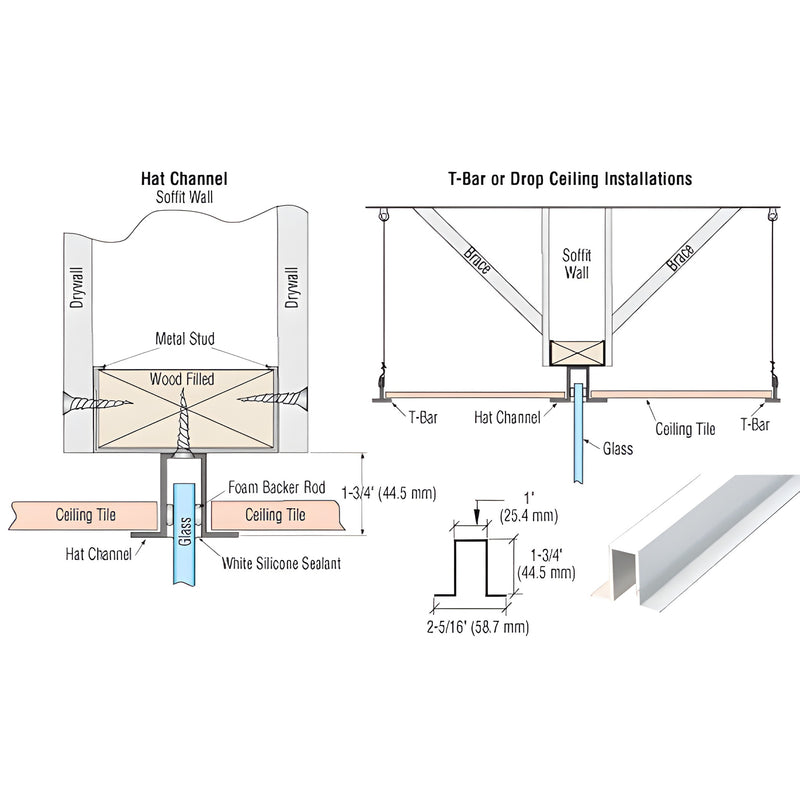

The CRL Hat Channel is designed to secure to the bottom of the soffit, providing a reliable glazing pocket for 3/8" or 1/2" (10 or 12 mm) glass, and features ceiling panel retaining lips that perfectly match the T-Bar 1-3/4" (44.5 mm) below the soffit.
This product, available in a sleek white finish to complement your ceiling T-Bar, uses Cat.
No.
RTV408W White Silicone Sealant to securely hold the glass in place.
Stocked in convenient 120" and 240" (3.05 and 6.10 m) lengths, the CRL Hat Channel can also be custom ordered by contacting CRL Technical Sales.
For quick order fulfillment, our Quick Pick products are housed in a centralized service center and dispatched weekly to regional CRL service centers.
Be sure to check stock availability by clicking the "CHECK STOCK AVAILABILITY" box above.
Note that stock lengths must ship via common carrier unless cut specifically for UPS shipment.
This product, available in a sleek white finish to complement your ceiling T-Bar, uses Cat.
No.
RTV408W White Silicone Sealant to securely hold the glass in place.
Stocked in convenient 120" and 240" (3.05 and 6.10 m) lengths, the CRL Hat Channel can also be custom ordered by contacting CRL Technical Sales.
For quick order fulfillment, our Quick Pick products are housed in a centralized service center and dispatched weekly to regional CRL service centers.
Be sure to check stock availability by clicking the "CHECK STOCK AVAILABILITY" box above.
Note that stock lengths must ship via common carrier unless cut specifically for UPS shipment.
