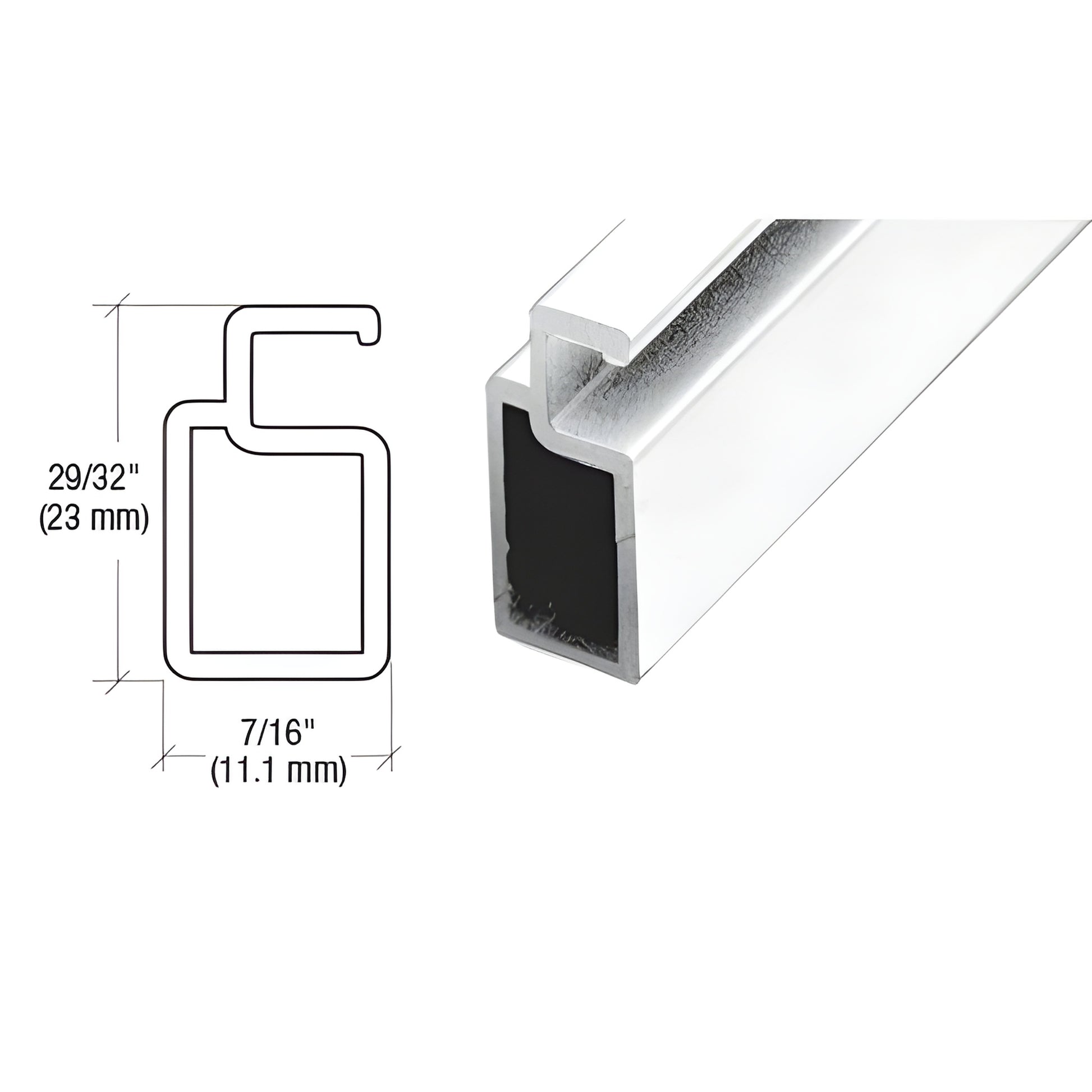

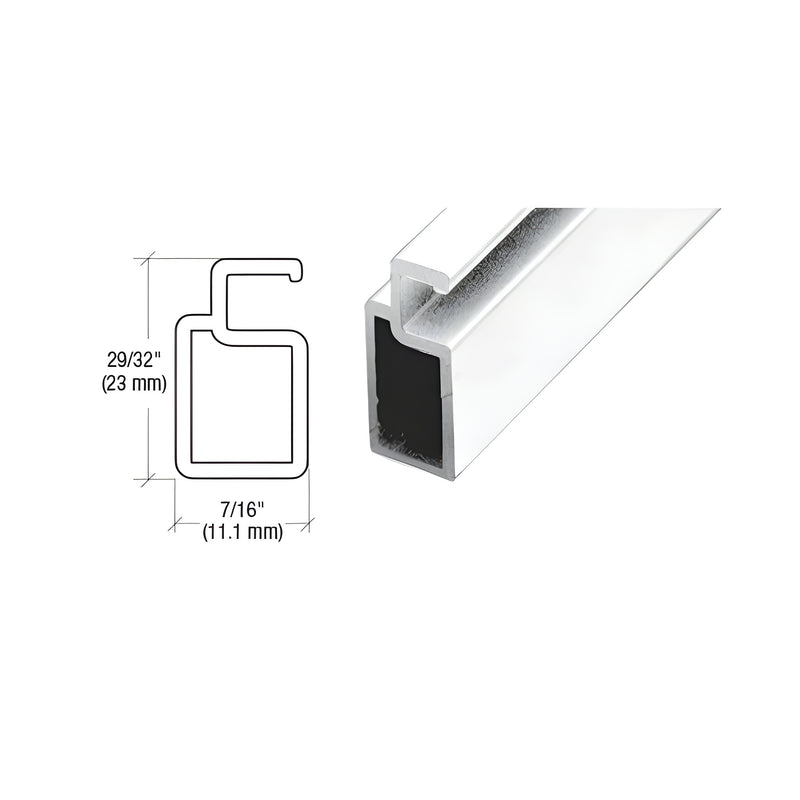

CRL White Heavy-Wall Extruded Screen Frame 29/32" x 7/16" 144"

• Ideal for larger window openings and commercial window screening applications
• .062" (1.5 mm) Wall Thickness (see specifications)
• Several finishes available for exterior and interior use

This CRL Extruded Screen Frame (SKU: WSF17XW) is an aluminum extruded, heavy-duty window screen frame designed for commercial and large-opening installations. It accepts .250" (6.3 mm) spline and mates with WSC109 mitered corners for fast, accurate assembly. Built for superior rigidity and long-lasting performance in demanding applications.


SPECIFICATIONS:
Material: Extruded Aluminum
Wall Thickness: .050" (1.3 mm) (see product note above)
Uses Spline Size: .250" (6.3 mm)
Uses Corners: WSC109 mitered corners


Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Some CRL catalogs recommend using 220 diameter spline; this is too loose. For a tight fit use 250 diameter spline (Cat. Nos. SS250C or SS250B).
