Product Details
- Reversed Spline Pocket
- 020" (.51 mm) Wall Thickness
- Matching Square Cut Plastic Lip Corners Available

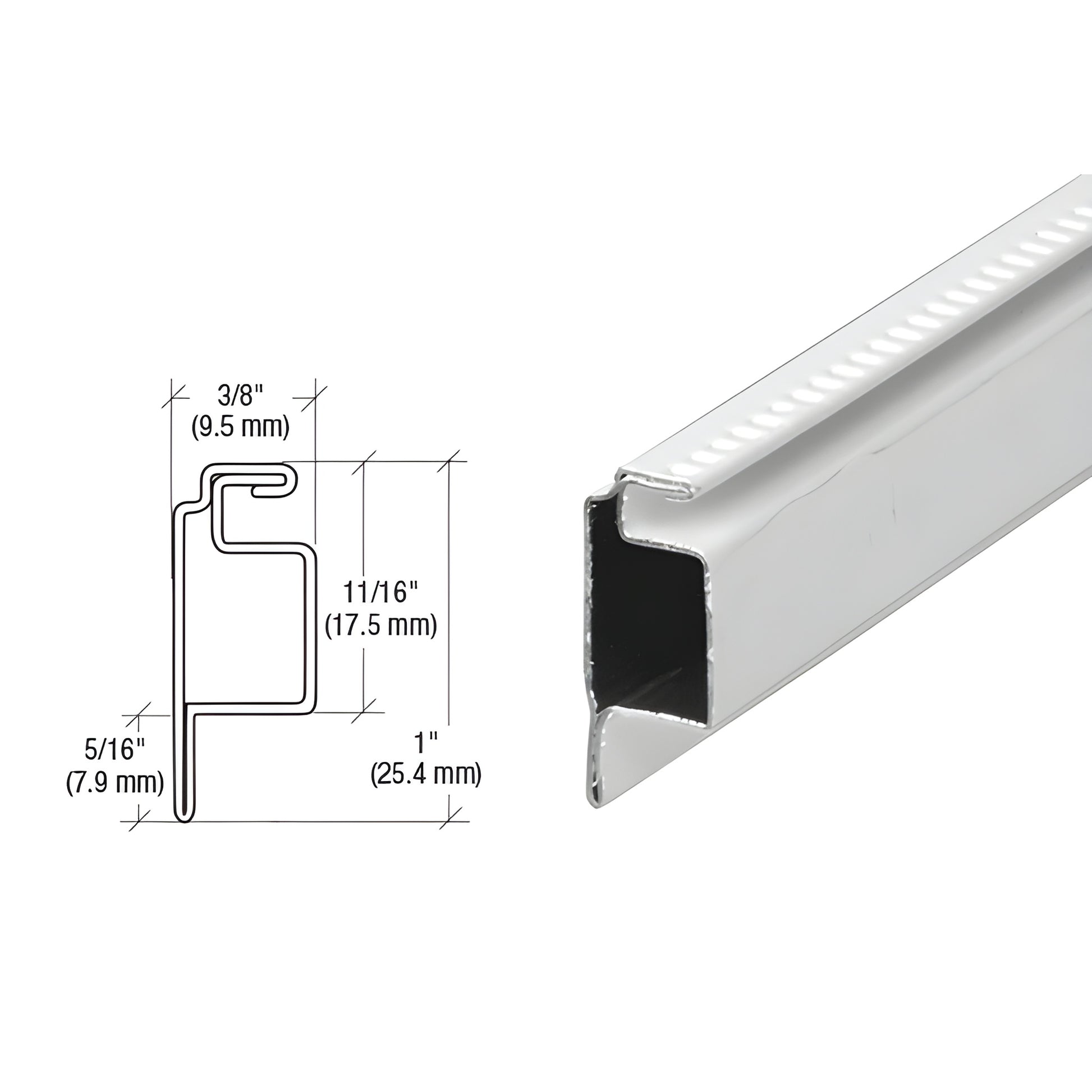

Our 5/16" (7.9 mm) Reversed Lip Frame is made from roll formed aluminum and allows for inset mounting within the framed opening, resulting in less exposure to UV for longer spline life. Contoured flat inside edge adds strength. Spline pocket is on the opposite side of the spline groove. Frame is 3/8" (10 mm) thick.
SPECIFICATIONS:
Material: Roll Formed Aluminum
Wall Thickness: .020" (.51 mm)
Uses Spline Size: .140" (3.6 mm)
Uses Corners: WSC117 for Mitered
Corners; SWSCL8 for Square Cut Corners
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
