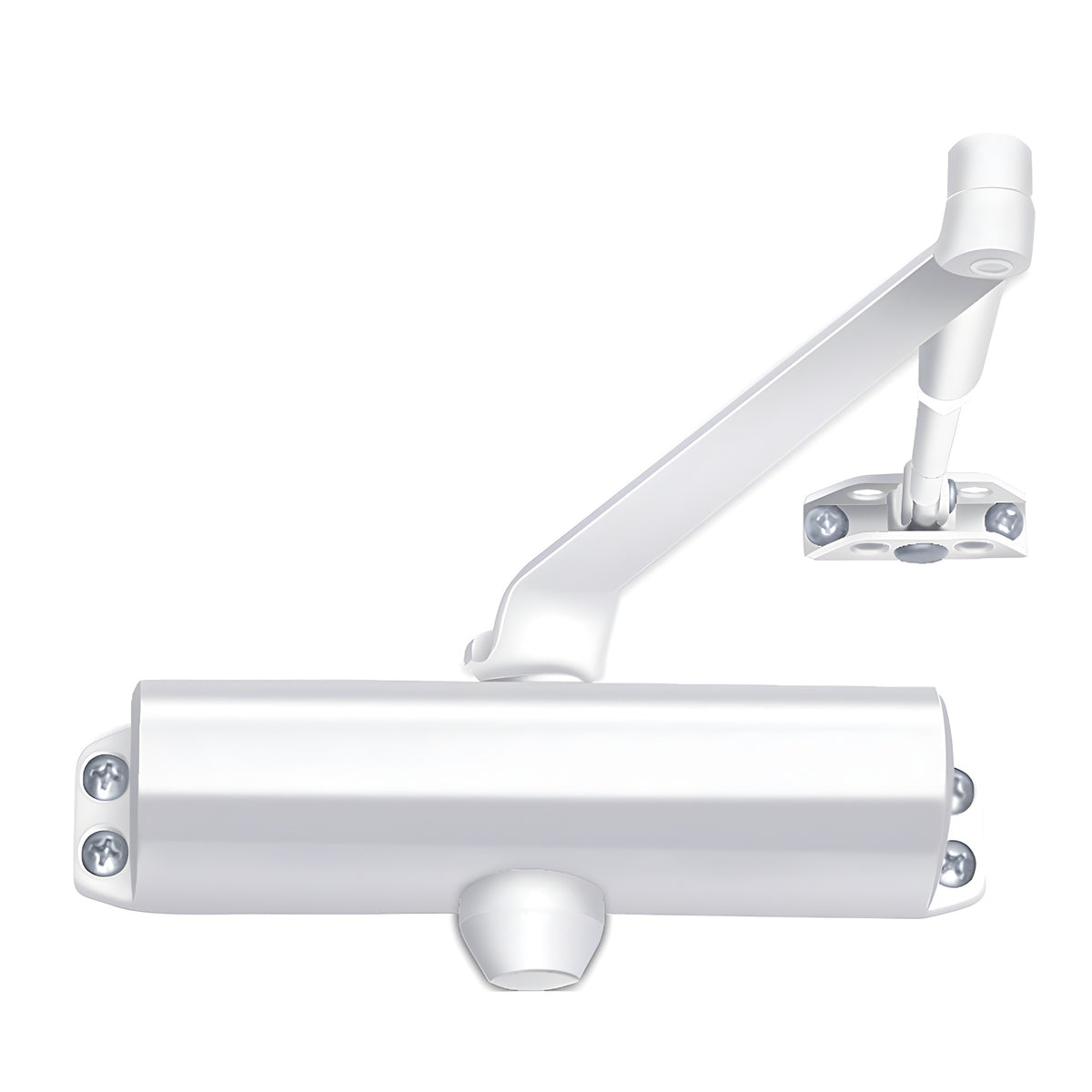

CRL White Commercial Surface-Mount Door Closer Size 4, ANSI Grade 1

• Engineered for Commercial and Residential Use
• Dual Valve Closing and Latching Speed Control
• Reversible for Standard, Top-Jamb, and Parallel Arm Installations on Aluminum, Metal, and Wood Doors
• Aluminum and Dark Bronze Finishes
• Custom Colors Available
• ANSI A156.4 Grade 1
• UL Listed

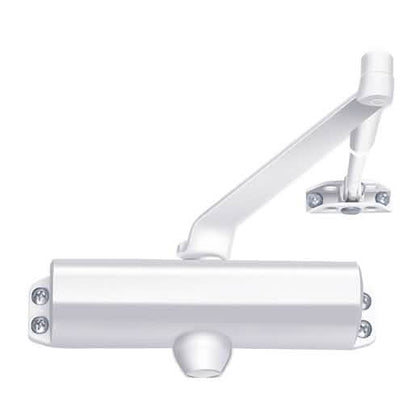

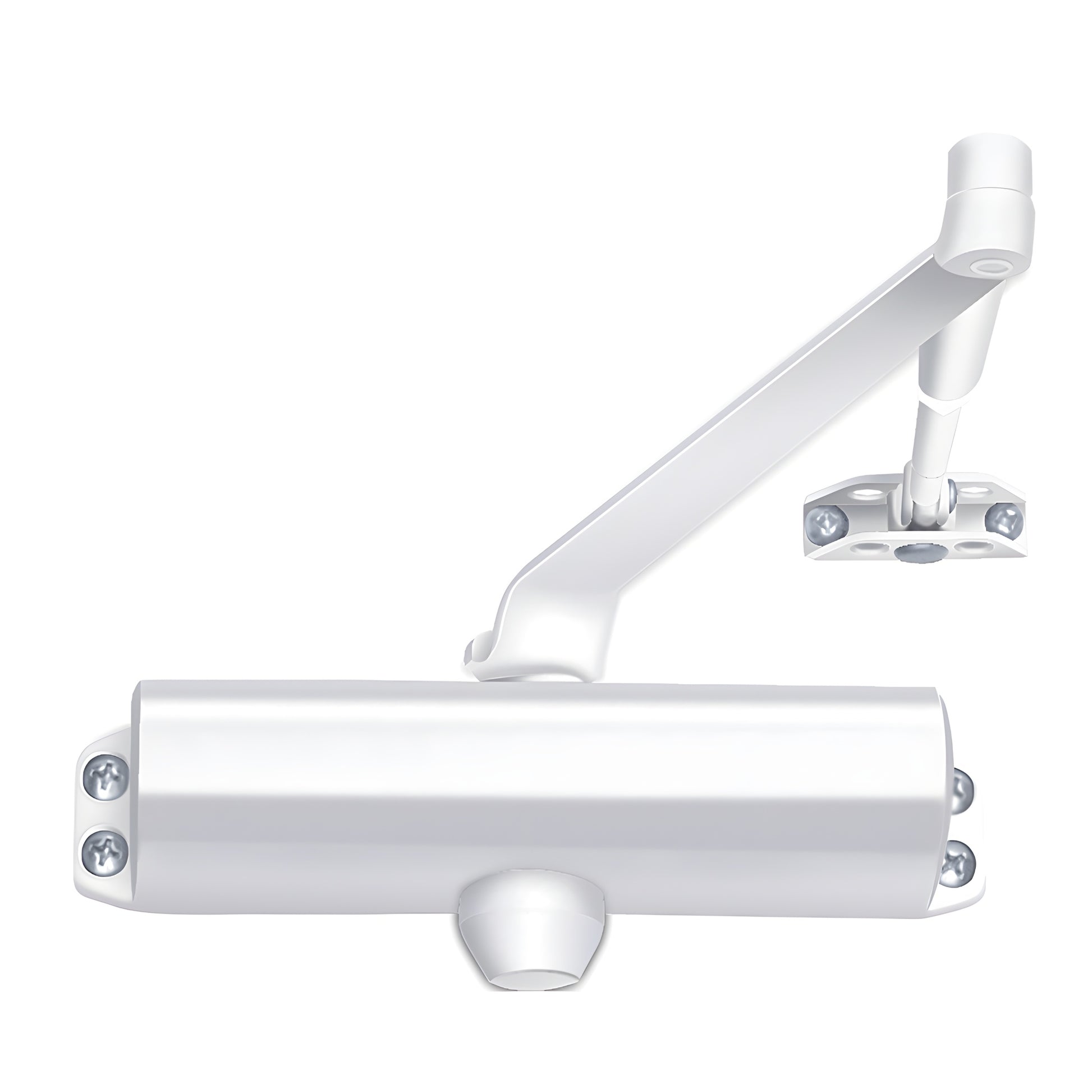

CRL DC54 Size 4 Surface Mount Door Closer (SKU: DC54) — a versatile surface-mounted door closer designed for most commercial applications and suitable for residential retrofit work. The Size 4 spring covers interior doors up to 48" (122 mm) and exterior doors up to 42" (107 mm), with applicable door weights between 143 and 187 lbs. (65 and 85 kg). This model includes an adjustable back check to protect doors and hardware from wind or violent opening cycles.

Both closing and latching speeds are independently adjustable for smooth, controlled operation. Each closer ships with a Parallel Arm Bracket and mounting hardware to enable universal installation: regular, top-jamb, or parallel arm. All CRL Surface Mounted Closers are UL listed and come with a 10-year warranty.

Optional accessories for special installations include Drop Plates and Hold Open Arms. Increase brand recognition with customized private labeling — CRL DC53, DC54 and DC55 models are available in plain boxes and ready to be private labeled. To discuss program details or pricing, contact CRL Technical Sales.

Shop the CRL DC54 surface mount door closer now or contact us for bulk pricing and private-label options.
