CRL White Cut-to-Length Hat Channel for Fixed Glazing
CRL White Cut-to-Length Hat Channel for Fixed Glazing
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HC1WHCL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Gloss White
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Length
Specify
Overview
- Accepts 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
- White finish to match ceiling T-bar systems
- Glass secured with Cat. No. RTV408W white silicone sealant

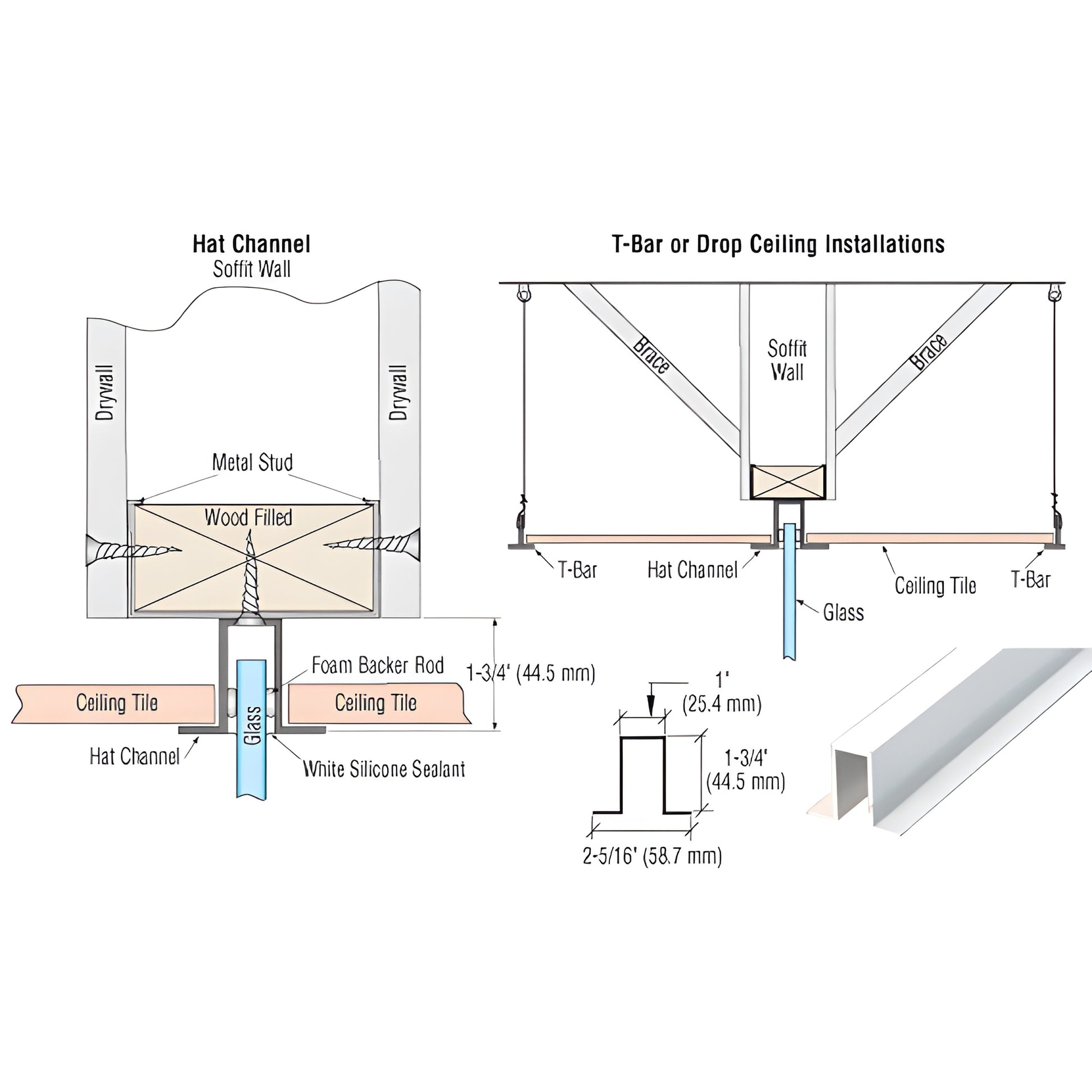

Our CRL Hat Channel (SKU: HC1WHCL) mounts to the soffit and provides a dedicated glazing pocket for 3/8" or 1/2" glass and ceiling-panel retaining lips that align with 1-3/4" (44.5 mm) T-bar spacing. Designed for commercial ceiling-to-glass applications, this white hat channel streamlines installation and offers a clean, coordinated look with suspended ceiling systems.
Available in-stock in 120" and 240" (3.05 m and 6.10 m) lengths; custom lengths are available—contact CRL Technical Sales for quotes. This Quick Pick item is stocked centrally and ships on weekly re-supply trucks to regional CRL service centers, so orders are typically filled within a few days if regional stock is unavailable. Check current inventory by clicking "CHECK STOCK AVAILABILITY" above.
Order the HC1WHCL hat channel for ceiling T-bar glass installations today.
