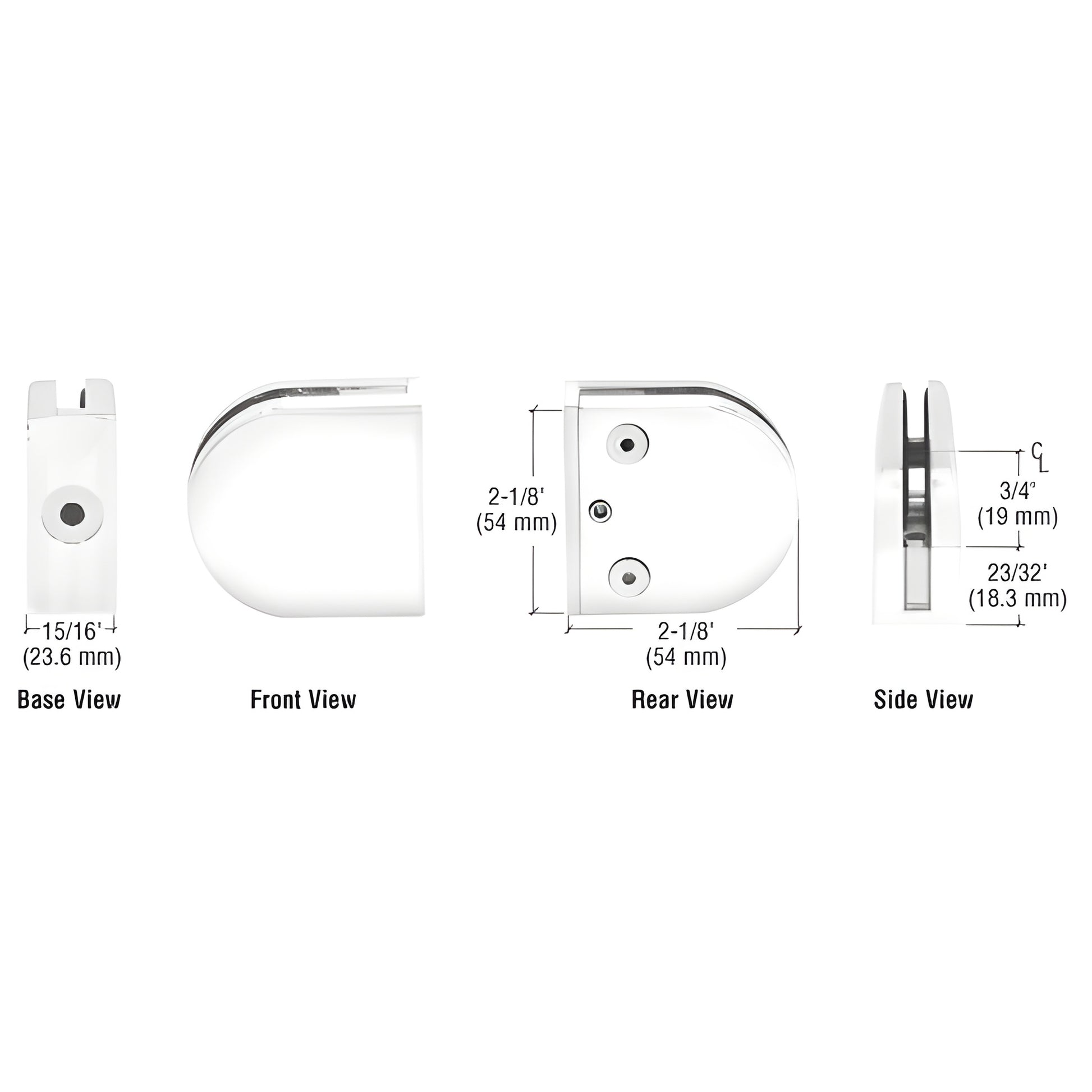

CRL Z-Series White Zinc Flat-Base Glass Clamp for 1/4" & 5/16"

• For 1/4" and 5/16" (6 and 8 mm) glass
• Replacement gaskets available: Cat. No. Z14RG
• Ideal for mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass
• Steel pin available for additional glass support
• Custom painted finishes available upon request

CRL Z-Series Round Type Radius Base Glass Clamps are precision clamps for glass railings, partition systems and windbreaks. Designed for glass thicknesses from 1/4" to 1/2" (6 to 12 mm), these round radius base clamps are offered in zinc or stainless steel for interior and exterior applications.

For mounting to thin-wall tubing (<1/8"), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32” (13.5 mm) hole and install the rivet-nut with the 34604 Heavy-Duty Thread Insert tool and 34618 5/16” mandrel and nosepiece. If using the included steel pin for extra glass support, a 1/2" (12 mm) hole is required.

SPECIFICATIONS:

• Glass Thickness: 1/4" and 5/16" (6 and 8 mm) — also compatible with 3/8" (10 mm) and 1/2" (12 mm) depending on hole size
• Base Design: Flat radius base
• For Use With: Square tubing or other flat surfaces
• Material: Zinc or stainless steel. Stainless or powder-painted zinc recommended for exterior durability
• Glass Fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm): 1/2" (12 mm) diameter hole required if using the steel pin
  • For 1/2" (12 mm): 9/16" (14 mm) diameter hole required if using the steel pin
• Includes: Rubber gaskets and steel pin with grommet
• Replacement Hardware: CRL ZCS5X15SS replacement screws

Product Warning:
For interior installations, CRL recommends pinning each glass panel when the bottom edge
