- Three Configurations / Settings
- Full Manual 360 Degree Rotation with Tilt From Any Position
- Cord-Free Operation with On-Board Sealed Battery
- CRL Stocks, Ships From Your Nearest CRL Warehouse
CRL

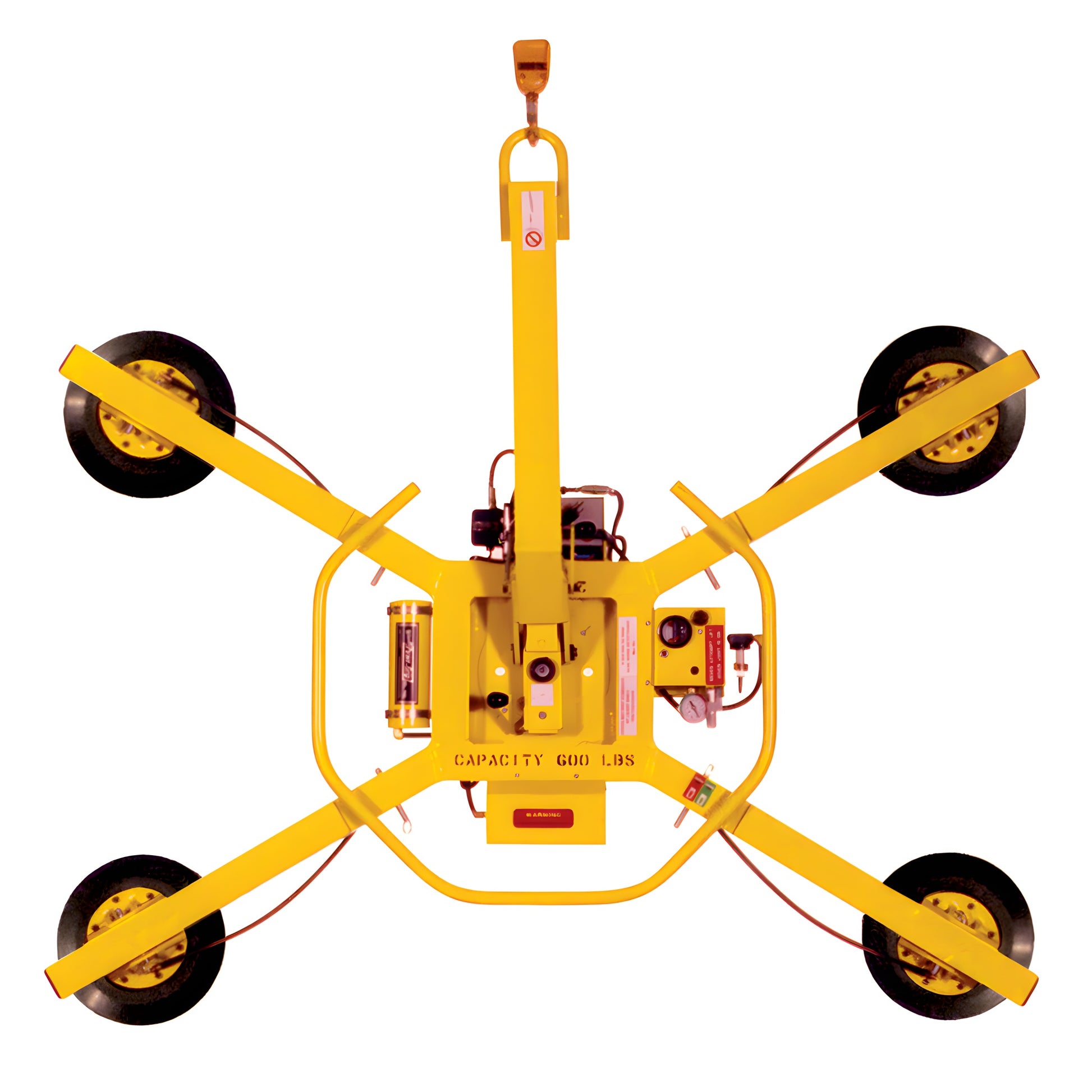

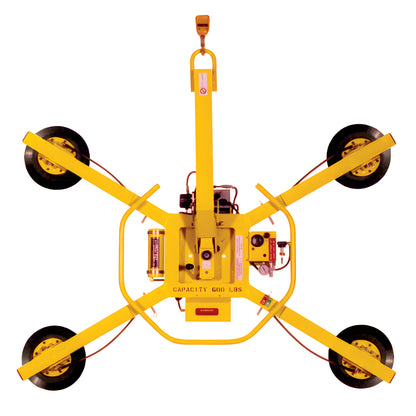

Wood's Powr-Grip® Manual Rotator/Tilter Vacuum Lifting Frame
is the most versatile vacuum lifting system ever offered. 3 flexible frame configurations allow you to set the frame to suit your requirements. Full 360 degree rotation allows tilt to flat from any position. A 700 pound safe work load rating is maintained by an on-board battery powered vacuum system that supplies constant suction pressure to the vacuum pads. The electrical system is cord-free, and includes a system analyzer and charger unit. The smooth 360 degree rotational pivot can lock at each quarter point.
IMPORTANT NOTES

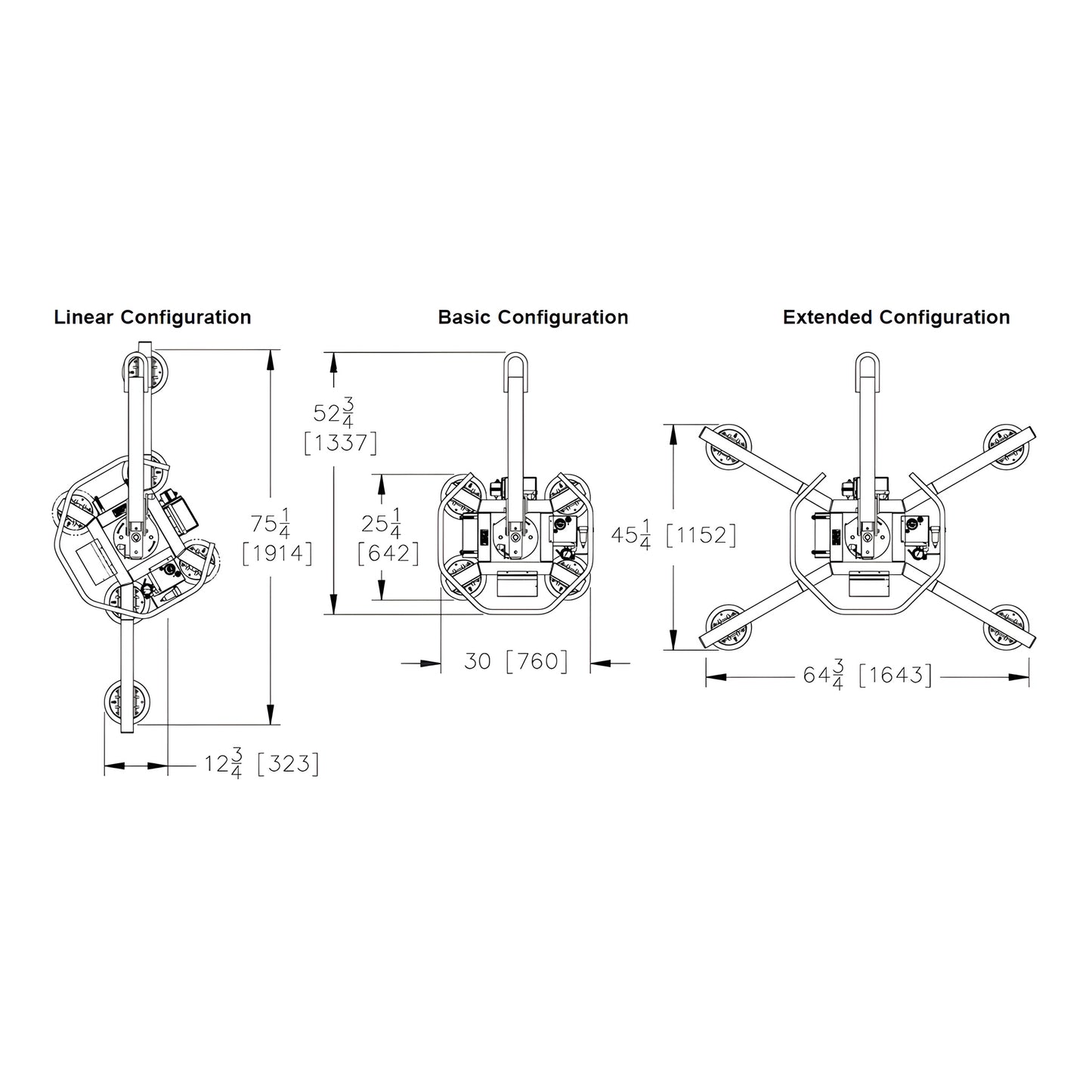

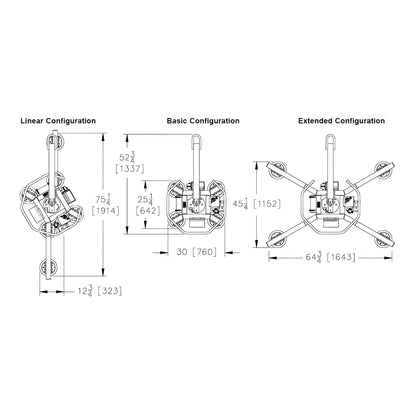

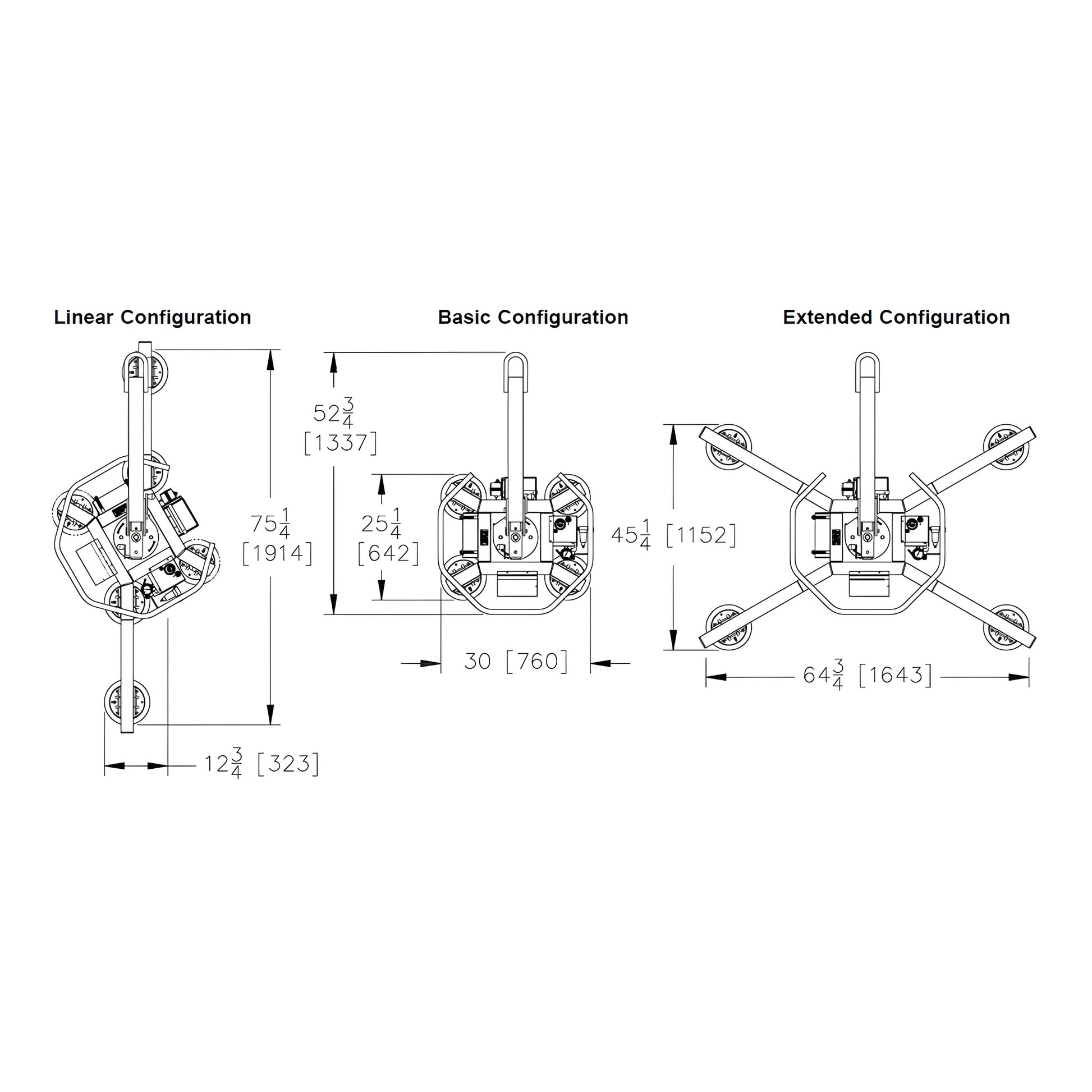

Standard Pad Spread
28" x 32-3/4" (basic configuration)
48" x 65-1/2" (extended configuration)
78" x 15-1/2" (linear configuration)
Number/Size of Pads
4/11" (280 mm) diameter lipped
Lifting Capacity
700 lb. (320 kg)
On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.
Average Unit Weight
122 lb. (56 kg)
Standard Operating Power
12V DC, 10 AMP
Load Movement
Manual rotation, 360 degree edgewise, with locking at each 1/4 point.
Manual tilt, 90 degree between upright and flat, with automatic latching in upright position.
Standard Features
Low Vacuum Warning Light
Onboard Battery and Charger
Battery Energy Gauge
Vacuum Gauge
Vacuum Line Filter
Vacuum Reserve Tank
Spring-Mounted Pads
Removable Pad Mounts
Extension Arms
Carrying case
