Product Details
- Remarkably Low Profile, for Maximum Flexibility in Handling Loads Between Buildings and Scaffolding
- On-Board DC Power Allows for Use at Construction Sites or Any Location Lacking AC Power
- Load Capacity 1,100 Lbs. (500 Kg)
- Dual Vacuum System Cat. No. E010DVS
- Remote Control System Cat. No. E08RC
- Individual Vacuum Pad Shutoffs Cat. No. CM1C0WB
- Alternative Vacuum Pads: 10" (254 mm) Diameter Concave Vacuum Pads Cat. No. 49590TA 10" (254 mm) Diameter Flat Lipped Vacuum Pads Cat. No. 49614T Closed Cell Foam Vacuum Pad Rings Cat. No. FRHV11 (Available on Cat. No. HV11 Pads only) Available Options for Cat. No. MRTALPCH611LDC: Alternative Vacuum Pads:
- 9" (229 mm) Diameter Vacuum Pad Cat. No. VPFS9
- 10" (254 mm) Diameter Concave Vacuum Pad Cat. No. 49590TA
- 10" (254 mm) Diameter Flat Lipped Vacuum Pad Cat. No. 49614T For special sizes and capacities, please contact our Glass and Glazing Technical Sales.

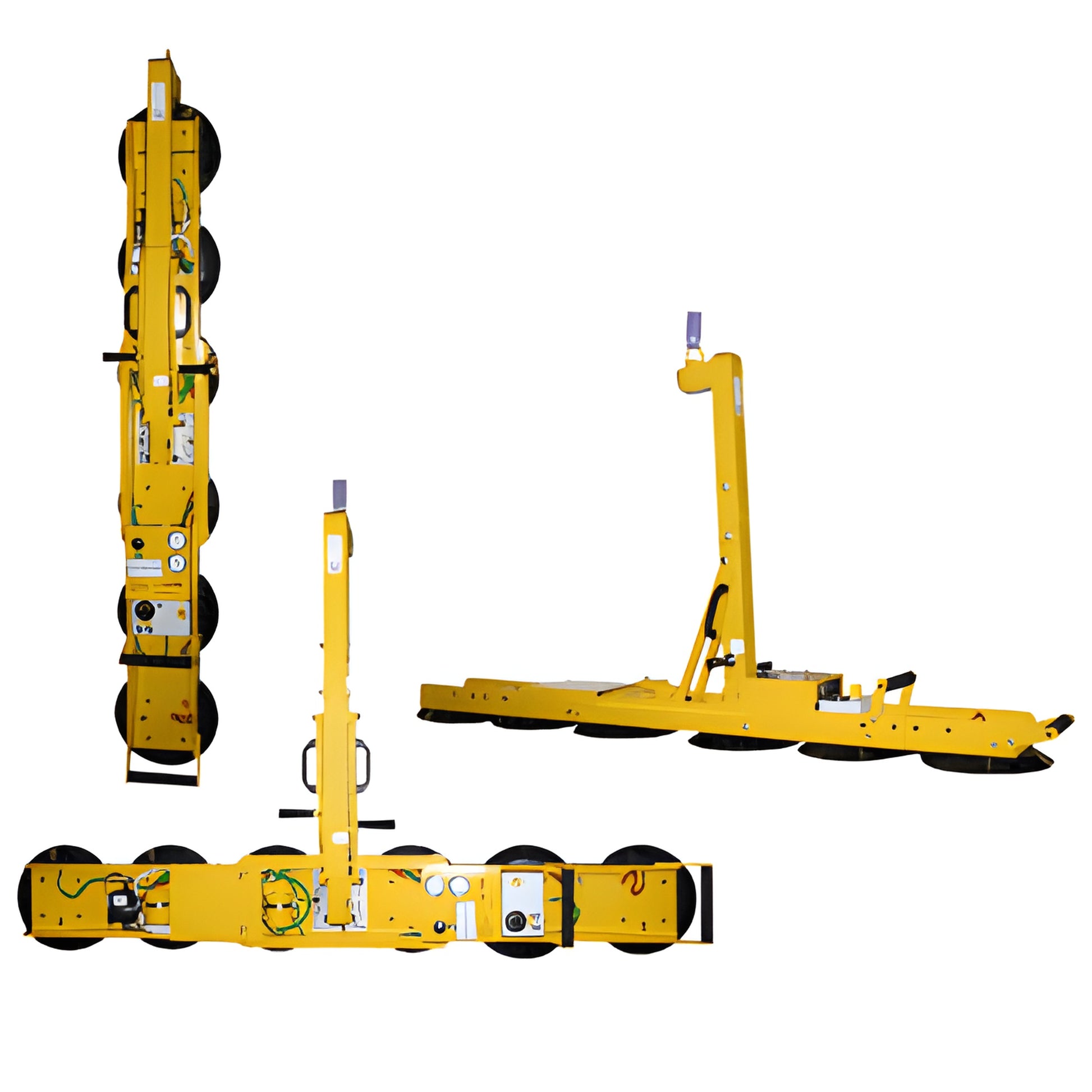

The low-profile design of these CRL Wood's Powr-Grip® Low Profile Channel Lifters allow a way to lift glass between scaffolding and buildings during high-rise window installations and in fabrication shops, between tight vertical storage racks.
Standard Pad Spread Cat. No. MRLPCH611LDC:
With 6 vacuum pads in use - 77" x 12" (1.96 m x 305 mm) and with 4 vacuum pads in use - 52" x 12" (1.32 m x 305 mm)
Standard Pad Spread Cat. No. MRTALPCH611LDC:
With 6 vacuum pads in use - 79-1/4" x 12" (2.01 m x 305 mm) and with 4 vacuum pads in use - 54" x 12" (1.37 m x 305 mm)
Lifting Capacity:
With 6 vacuum pads in use - 1,100 Lbs. (500 kg) and 4 vacuum pads in use - 736 Lbs. (334 kg) (On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
Average Weight Of Vacuum Lifter:
Cat. No. MRLPCH611LDC: 110 Lbs. (50 kg)
Cat. No. MRTALPCH611LDC: 125 Lbs. (57 kg)
Standard Operating Power:
Cat. No. MRLPCH611LDC: 12V DC, 10 AMP
Cat. No. MRTALPCH611LDC: 12V DC, 10 AMP
Load Movement:
Cat. No. MRLPCH611LDC: Manual rotation, 180 degrees edgewise, with locking in three positions and Cat. No. MRTALPCH611LDC: Manual rotation, 180 degrees edgewise, with locking in three positions. Assisted manual tilt, 90 degrees between upright and flat, with automatic latching in upright position.
Profile:
Cat. No. MRLPCH611LDC: 7-1/2" (191 mm) and
Cat. No. MRTALPCH611LDC: 7-3/4" (197 mm)
(Does not include load.)
Standard Features:
Removable Pad Frame Extensions Adjustable Length Lift Bar On-board Battery and Charger Battery Energy Gauge Low Vacuum Warning Light Vacuum Gauge Vacuum Line Filter Vacuum Reserve Tank Spring-mounted Vacuum Pads Dual Vacuum System (MRTA Frame only) Green Lift Light (MRTA Frame only) Blow-off for Quick Release (MRTA Frame only)
Available Options For MRLPCH611LDC:
Dual Vacuum System Cat. No. E010DVS
Remote Control System Cat. No. E08RC
Individual Vacuum Pad Shutoffs Cat. No. CM1C0WB
Alternative Vacuum Pads
10" (254 mm) Diameter Concave Vacuum Pads Cat. No. 49590TA 10" (254 mm) Diameter Flat Lipped Vacuum Pads Cat. No. 49614T Closed Cell Foam Vacuum Pad Rings Cat. No. FRHV11 (Available on Cat. No. HV11 Pads only)
Available Options for Cat. No. MRTALPCH611LDC:
Alternative Vacuum Pads
9" (229 mm) Diameter Vacuum Pad Cat. No. VPFS9
10" (254 mm) Diameter Concave Vacuum Pad Cat. No. 49590TA
10" (254 mm) Diameter Flat Lipped Vacuum Pad Cat. No. 49614T
For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
