- Fastest, safest, and most efficient way to install above-grade windows
- Easily lifts 185 lbs. (84 kg)
- Reduces installation crew to only two people
- Releasing the winch handle automatically engages the brake for instant locking
- Eliminates staging of scaffolding
- Can be used from interior or exterior for flexible window installation
Developed by a high-volume remodeling contractor, the

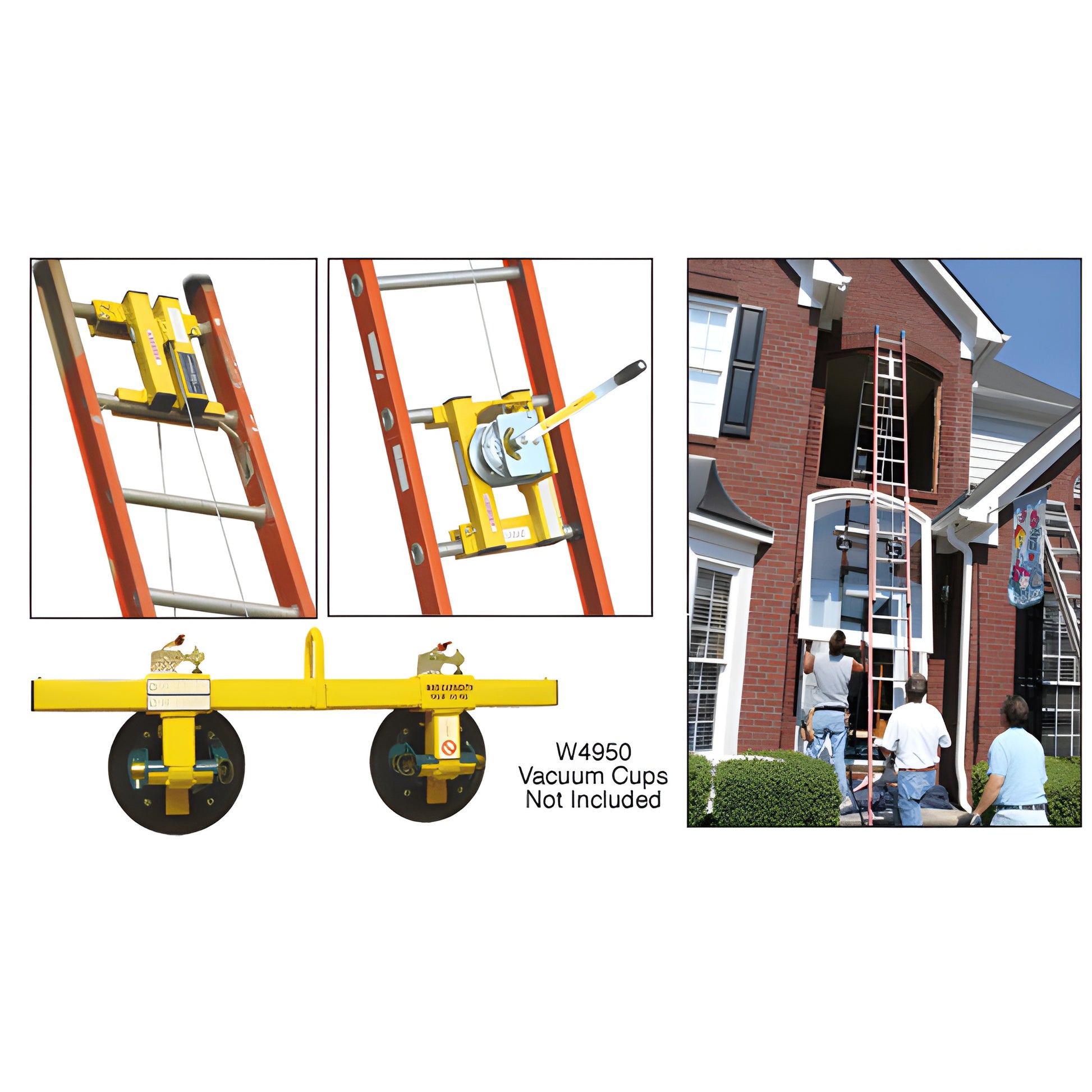

CRL Wood's Ladder Lifter (SKU: LL185) streamlines second-story window installation. The lifter clamps to ladder rungs with the pulley assembly at the top and a braking winch near the bottom. A 30' (9.14 m) galvanized steel cable suspends an adjustable-width hand cup lifter bar that uses two Cat. No. W4950 Metal 8" (203 mm) Vacuum Cups (sold separately) to handle glass. Cups slide along the bar to span exterior muntins when required.
Use the braking winch to precisely raise and position window units up to 185 lbs. (84 kg). Releasing the winch handle instantly engages the brake—no levers to flip—while lowering is done by rotating the winch handle counterclockwise. Typical above-grade window installations often require only a two-person crew and about two hours because scaffolding setup and teardown are eliminated, offering fast payback.
NOTE: Monitor and re-pump Vacuum Cups as needed. When the Ladder Lifter is attached, the ladder must not support workers. Ladders used with the Ladder Lifter must have a minimum load capacity of 375 lbs. (170 kg).
SPECIFICATIONS:
Adjustable pad spread with two 8" (203 mm) Wood's Powr-Grip® hand vacuum cups (to outside edge of cups).
Minimum: 8" x 16" (203 x 407 mm)
Maximum: 8" x 39" (203 x 990 mm)
Load capacity: 185 lbs. (84 kg) with ANSI Type 1AA 375 lbs. (170 kg) (capacity ladder not included).
Product Warning:
Price does not include the two W4950 Vacuum Cups required to operate this unit; order separately if not already owned. Ladders used in conjunction with the Ladder Lifter must have a minimum load capacity of 375 pounds (170 kg).
