- Deep, Concave Pad for Easy Attachment on Curved or Irregular Non-porous Surfaces
- Durable Metal Handle with ABS Plunger
- Red-Line Indicator Warns User of Any Vacuum Loss
- Rust-Resistant Components
- Instructions, Troubleshooting, and Instructional Videos
- *Rubber portions that are cut / scratched during use.
- *Normal wear and tear.
- *Products that have been abused, misused or neglected.
- *Products that have been altered or modified.

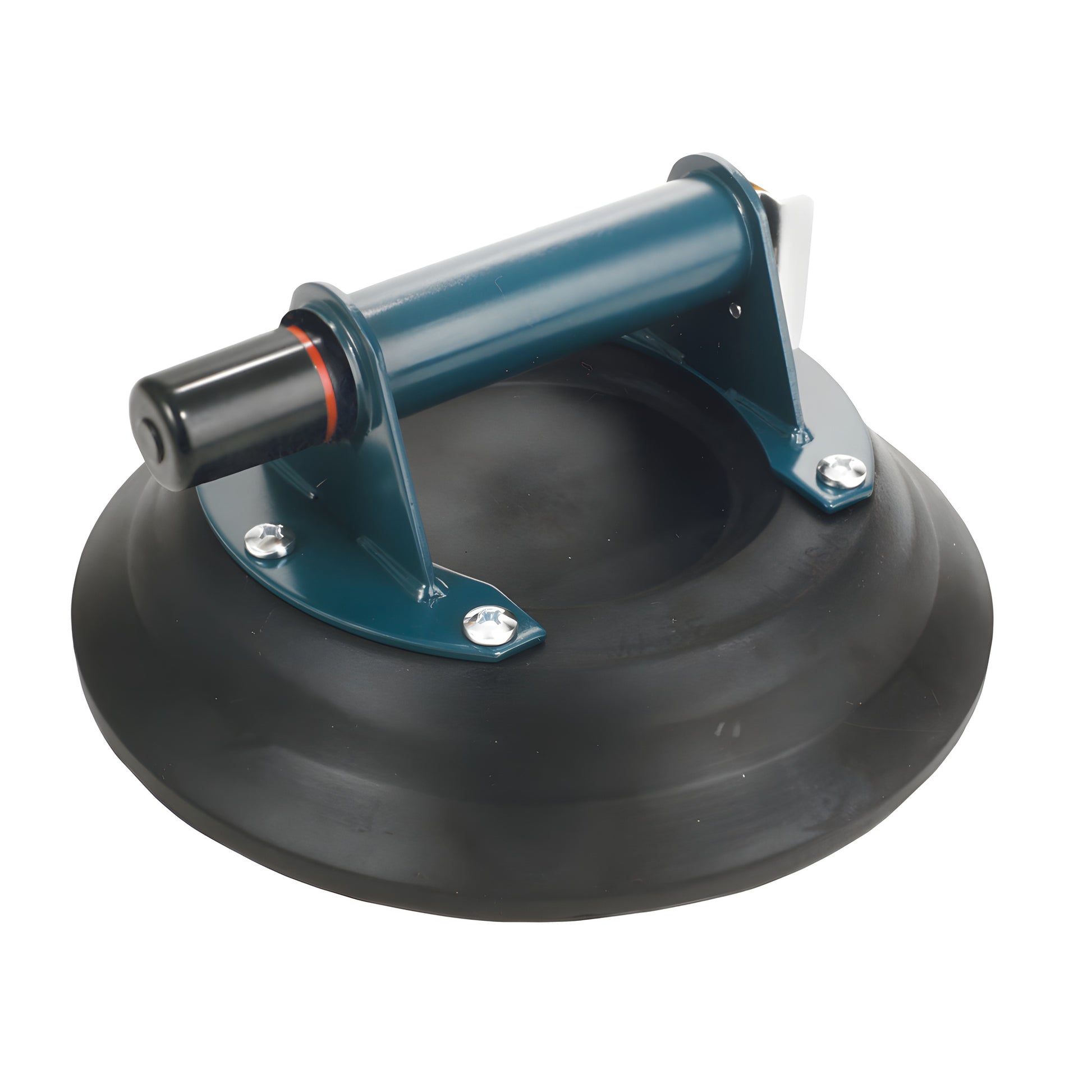

CRL Wood's Powr-Grip® Hybrid Handle 10" Vacuum Cup
comes with durable metal handle, plus a sturdy rubber vacuum pad to create a heavy-duty, rust resistant cup for use in humid or wet environments. As well as flat non-porous surfaces, the deep, concave design of the pad allows for easy attachment on curved or irregular non-porous surfaces. It has a built-in check valve which allows re-pumping without loss of vacuum, and a release lever that permits quick and complete release. Supplied with protective carrying case.
CRL proudly offers you the unique line of Wood's Powr-Grip® Vacuum Cups, among the safest hand vacuum cups available on the market today. These specially designed, hand actuated cups operate on a pump system, and create a vacuum under their gripping pad section. The pump plunger has a red band to indicate suction level at all times. When it shows less than 100% vacuum left, simply pump the plunger until you reach the original vacuum pressure without removing the cup from the glass. To release, just depress a trigger on the opposite end of the handle from the plunger. These cups come with a release valve guard to prevent accidental loss of vacuum. There are four models of the basic Wood's Powr-Grip® Vacuum Cup.
This cup has a vertical and horizontal lifting capacity of 175 lbs., enough for most manual lifting situations. To release, just press the trigger on the opposite side of the plunger. This is the choice of vacuum cups by most professional glaziers.
Product Warning
Because of the weight and vacuum, these cups are not to be used on thin, fragile materials. Minimum radius for curved load is 13" (330 mm).
Never exceed the recommended weight limit of this cup.
CAUTION
Cups must be kept clean and stored in carrying case when not in use.
IMPORTANT
Small Dirt Particles cause leaks. Clean with damped rag only, no oil solutions required.
*If necessary use mild soap detergent and water to remove any residue build up on pads.
Warranty Does Not Cover
*Rubber portions that are cut / scratched during use.
*Normal wear and tear.
*Products that have been abused, misused or neglected.
*Products that have been altered or modified.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
