CRL XOX Sliding Service Window - 1/2" IG Vinyl, Satin Anodized

• Glass and screen panels on either end can be opened as required
• Designed for light-duty applications — 50 or fewer uses per day
• Available in vertical and horizontal formats
• Each unit is customized to fit your project requirements (SKU: SW5400A)

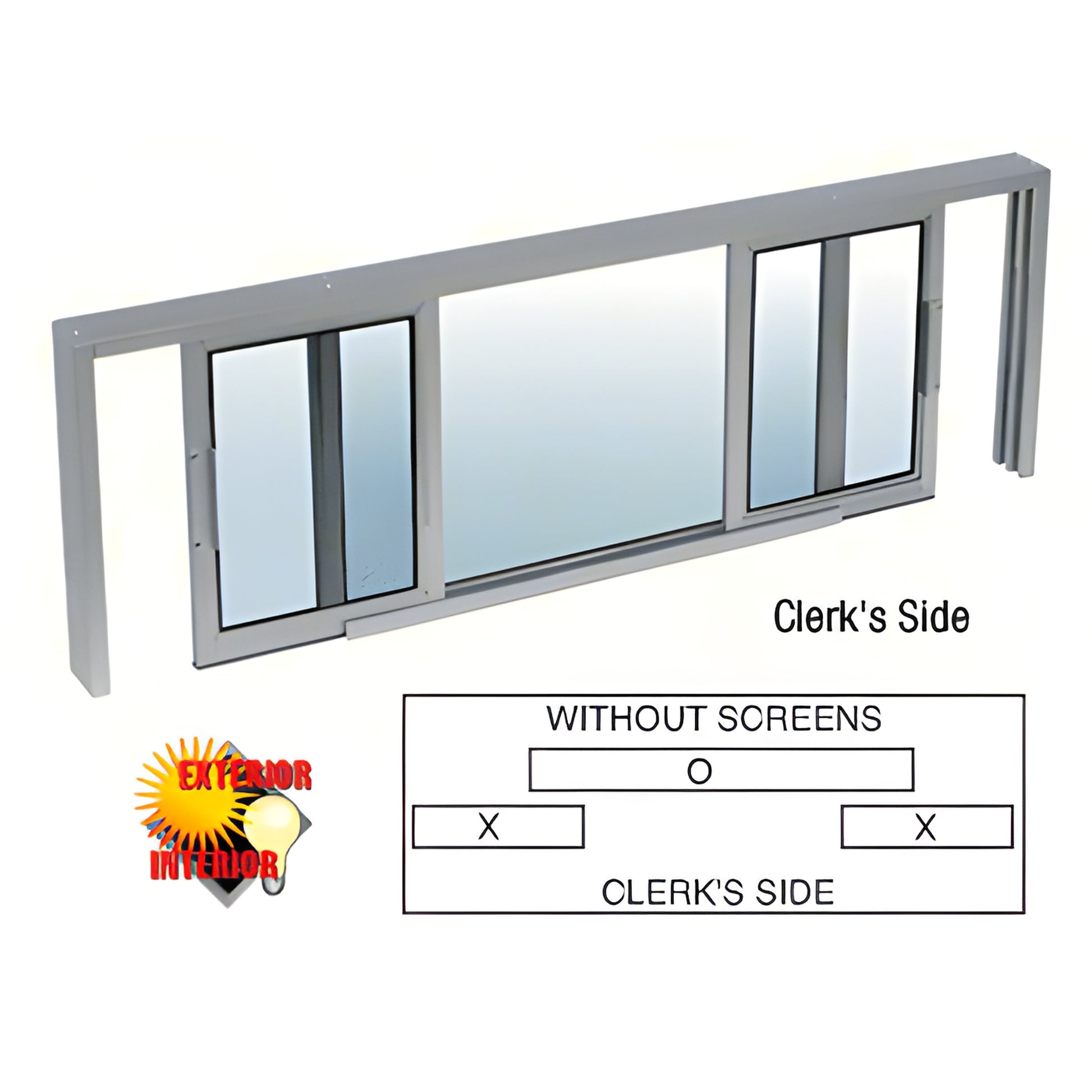

This CRL Horizontal Sliding Service Window features two sliding side panels and a fixed center panel whose width is twice that of each sliding panel, allowing both sides to be opened simultaneously. Units ship with vinyl for 1/8" (3 mm) or 1/4" (6 mm) glazing; optional pre-glazed tempered glass (1/8" or 1/4") or 1/2" (12 mm) insulating glass is available on select models. NOTE: If ordered with keyed locks, sliding screens will be installed in the center channel. Surround frame is not available for insulating glass models. An overhang is recommended for exterior installations.

SPECIFICATIONS:
Materials: Extruded aluminum; tempered safety glass on select models; fiberglass screen on select models
Finishes: Satin anodized, Duranodic bronze, RAL powder coat, or Kynar paint
Glazing: Vinyl supplied on all models; 1/8" (3 mm) or 1/4" (6 mm) tempered glass; 1/2" (12 mm) insulating glass on select models
Instructions included.

Product Warning:

Horizontal Service Window Series SW1600 thru SW5200 — Maximum Sizes:
144" (3.66 m) wide x 36" (914 mm) high (with restrictions). Example: a 144" (3.66 m) wide window may have a maximum height of only 24" (610 mm).

These Series SW1600–SW5200 windows are intended as pass-through/commercial service windows only. They are not constructed with storefront extrusions and are not intended for other structural uses.

No keyed lock available for series SW4200 through SW4800; these are supplied with a screw-in pin lock. Insulated glass units (1/2" / 12 mm), including Series SW2400, SW3200 and SW4200 with screens, are not available with a keyed lock.
