- The Fastest, Safest, and Most Efficient Way to Install Above Grade Windows
- Easily Lifts 185 Lbs. (84 kg)
- Reduces Installation Crew to Only Two People
- Eliminates Staging of Scaffolding
- Can Be Used from Interior or Exterior
Developed by a high-volume remodeling contractor, the
CRL Wood's Ladder Lifter

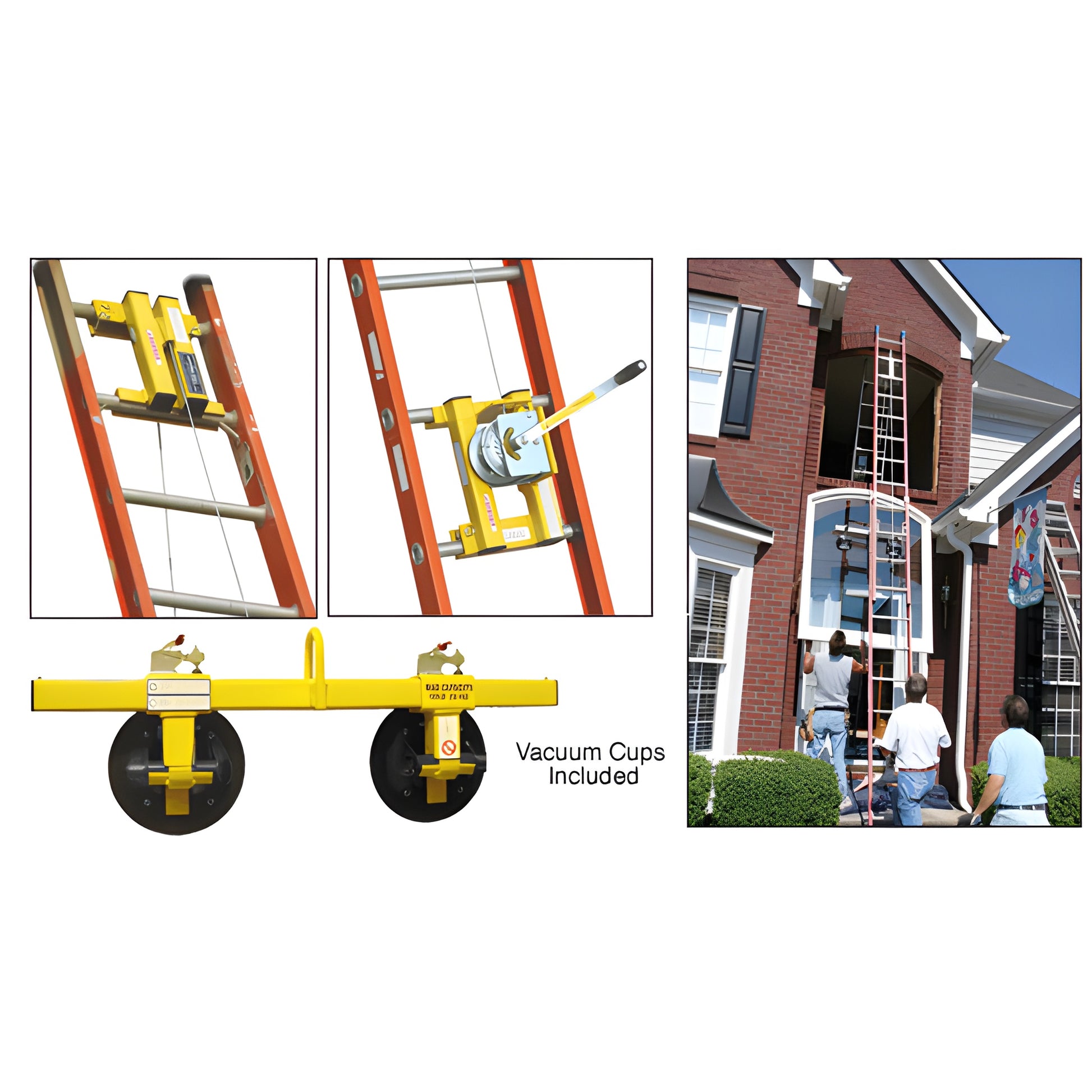

makes second story window installations safer and easier than ever. The ladder lifter quickly clamps onto the rungs of your ladder with the pulley assembly on top, and the braking winch assembly near the bottom. Suspended from the galvanized steel cable is the adjustable width hand cup lifter bar that uses two Cat. No. W4950 Metal 8" (203 mm) Vacuum Cups that you attach to the glass. Cups can be positioned along the bar to span exterior muntin when required.
You can easily lift up to 185 lbs. (84 kg) safely using the winch to precisely position the window unit. Using a second ladder the window can then be fitted and sealed into place. Because the ladder lifter uses a special "Braking" winch there is no need to flip levers to lock the unit into place. Just release the winch handle and you are locked into position. To lower the lifter bar simply rotate the winch handle counterclockwise.
Typical installations require only a two-person crew and two hours to complete because there is no time lost staging and disassembling scaffolding, so payback for your ladder lifter is fast.
NOTE
Use only where the Vacuum Cups can be monitored and re-pumped if necessary. When Ladder Lifter is attached, the ladder may not be used to support workers. Ladders used in conjunction with the Ladder Lifter must have a minimum load capacity of 375 lbs. (170 kg).
SPECIFICATIONS
Adjustable Pad Spread with Two 8" (203 mm) Wood's Powr-Grip® Hand Vacuum Cups (to Outside Edge of Cups).
Minimum: 8" x 16" (203 x 407 mm)
Maximum: 8" x 39" (203 x 990 mm)
Load Capacity: 185 lbs. (84 kg) with ANSI Type 1AA 375 Lbs. (170 kg) (Capacity Ladder not included.)
Product Warning
Ladders used in conjunction with the Ladder Lifter must have a minimum load capacity of 375 pounds (170 kg).
