CRL Z-Series Gold-Plated Zinc Glass Clamp, Flat Base 1/4"/5/16"

• For 1/4" and 5/16" (6 and 8 mm) glass
• Replacement gaskets: Cat. No. Z14SG
• Ideal for mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass for safety
• Steel pin available for additional glass support
• Tested and engineered to meet and exceed code standards
• Custom painted finishes available upon request

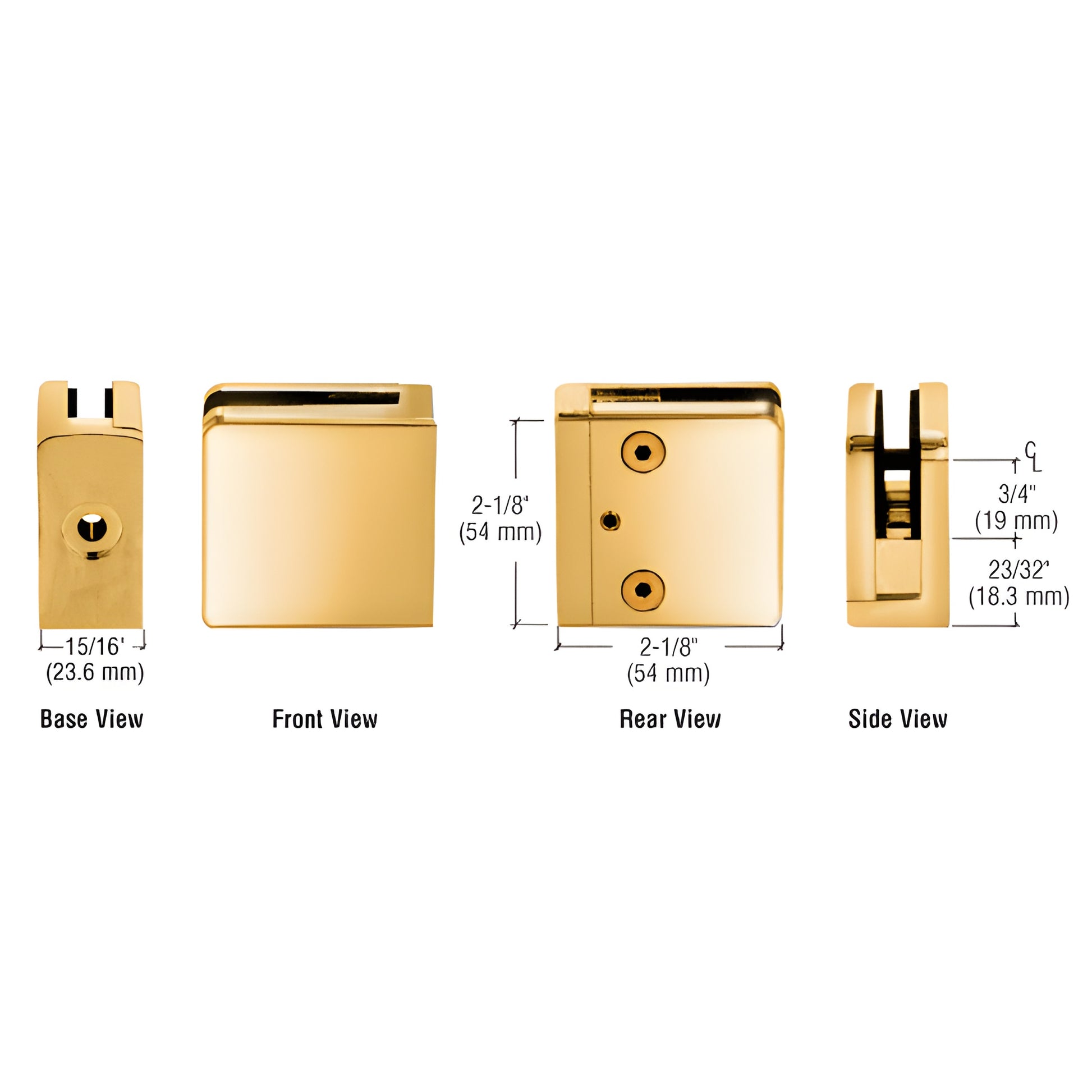

This CRL Z-Series Square Type Flat Base Glass Clamp (SKU: Z806GP) secures 1/4" to 5/16" (6–8 mm) glass and is available in zinc or stainless steel. Designed for square tubing and other flat surfaces, the flat-base clamp is a durable glass clamp solution for partitions, railings and exterior windbreaks when paired with stainless or powder-painted zinc finishes.

For mounting the Z-Clamp to thin-wall tubing (less than 1/8”), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation drill a 17/32” (13.5 mm) hole, then install the rivet-nut with the 34604 Heavy-Duty Thread Insert tool and 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

SPECIFICATIONS:
Glass Thicknesses: 1/4" and 5/16" (6 and 8 mm)
Base Design: Flat
For Use With: Square tubing or other flat surfaces
Material: Zinc or stainless steel. Stainless steel or powder-painted zinc recommended for exterior durability.
Glass Fabrication:

• For 1/4" (6 mm), 5/16" (8 mm) and 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required if using provided steel pin
• For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required if using provided steel pin

Includes: Rubber gaskets and steel pin (optional use) with grommet.
Replacement Hardware: CRL ZCS5X15BR replacement screws

Product Warning:

For interior installations where the glass panel is not supported from the bottom edge, CRL recommends pinning each glass panel to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.
