CRL Z-Series Satin Chrome Square Zinc Glass Clamp for 1/2"

• For 1/2" (12 mm) glass
• Replacement gaskets: Cat. No. Z712SG
• Ideal for mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass
• Steel pin included for additional glass support
• Custom painted finishes available upon request

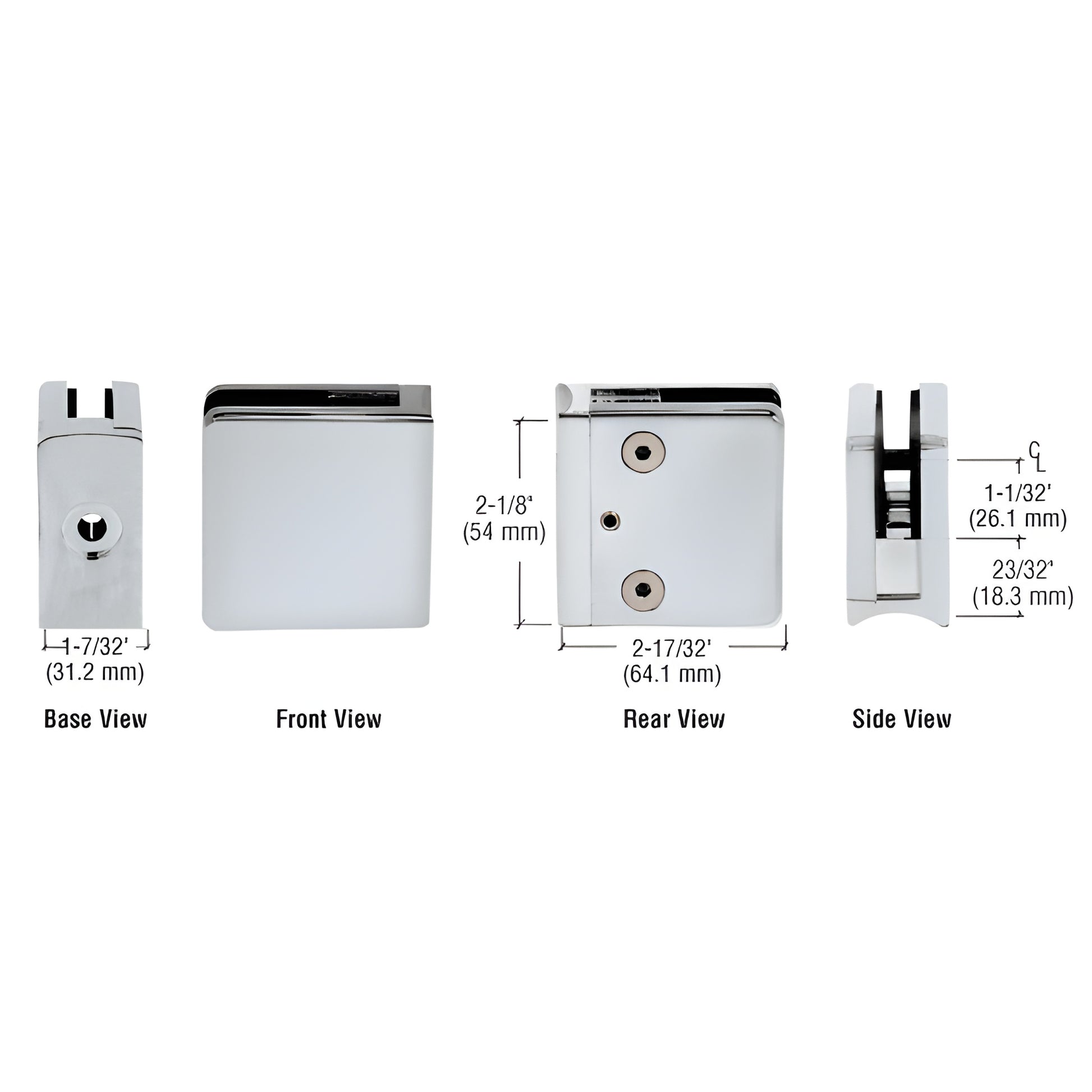

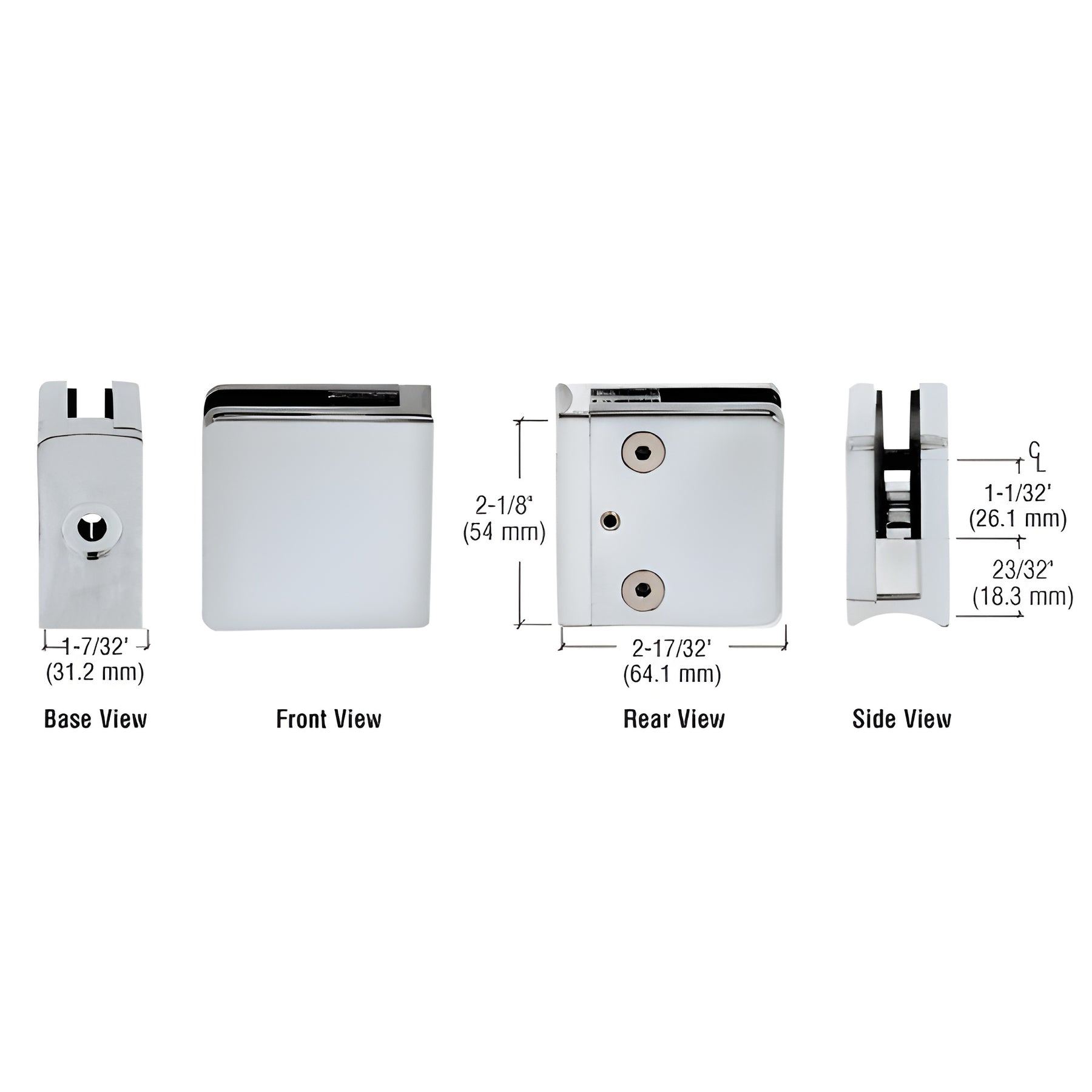

This CRL Z-Series Square Type Radius Base Glass Clamp (SKU: Z612SC) secures 1/2" (12 mm) glass panels to 2" (51 mm) diameter round tubing. Constructed in zinc or stainless steel, the clamp is built for interior and exterior railing, partition and windbreak applications where a radius base attachment is required.

For mounting to thin-wall tubing (< 1/8”) use CRL ZB0LT Socket Head Cap Bolt with ZRNUT Rivet-Nut. Drill a 17/32” (13.5 mm) hole and install the Rivet-Nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

SPECIFICATIONS

• Glass thickness: 1/2" (12 mm)
• Base design: Radius
• For use with: 2" (51 mm) diameter round tubing only
• Material: Zinc or stainless steel (stainless or powder-painted zinc recommended for exterior durability)
• Glass fabrication notes:
  • For 1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required for use with steel pin
  • For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required for use with steel pin
• Includes: Rubber gaskets and steel pin with grommet
• Replacement hardware: CRL ZCS5X15SS replacement screws

Product warning: For interior installations where the glass is not supported at the bottom edge, CRL recommends pinning each glass panel to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.
