CRL Z-Series Satin Chrome Zinc Square Radius Glass Clamps 3/8"-1/2"

CRL Z-Series Satin Chrome Zinc Square Radius Glass Clamps 3/8"-1/2"

$36.44 CAD
$36.44 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# ZL610SC
Shipping Weight: 13.44 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

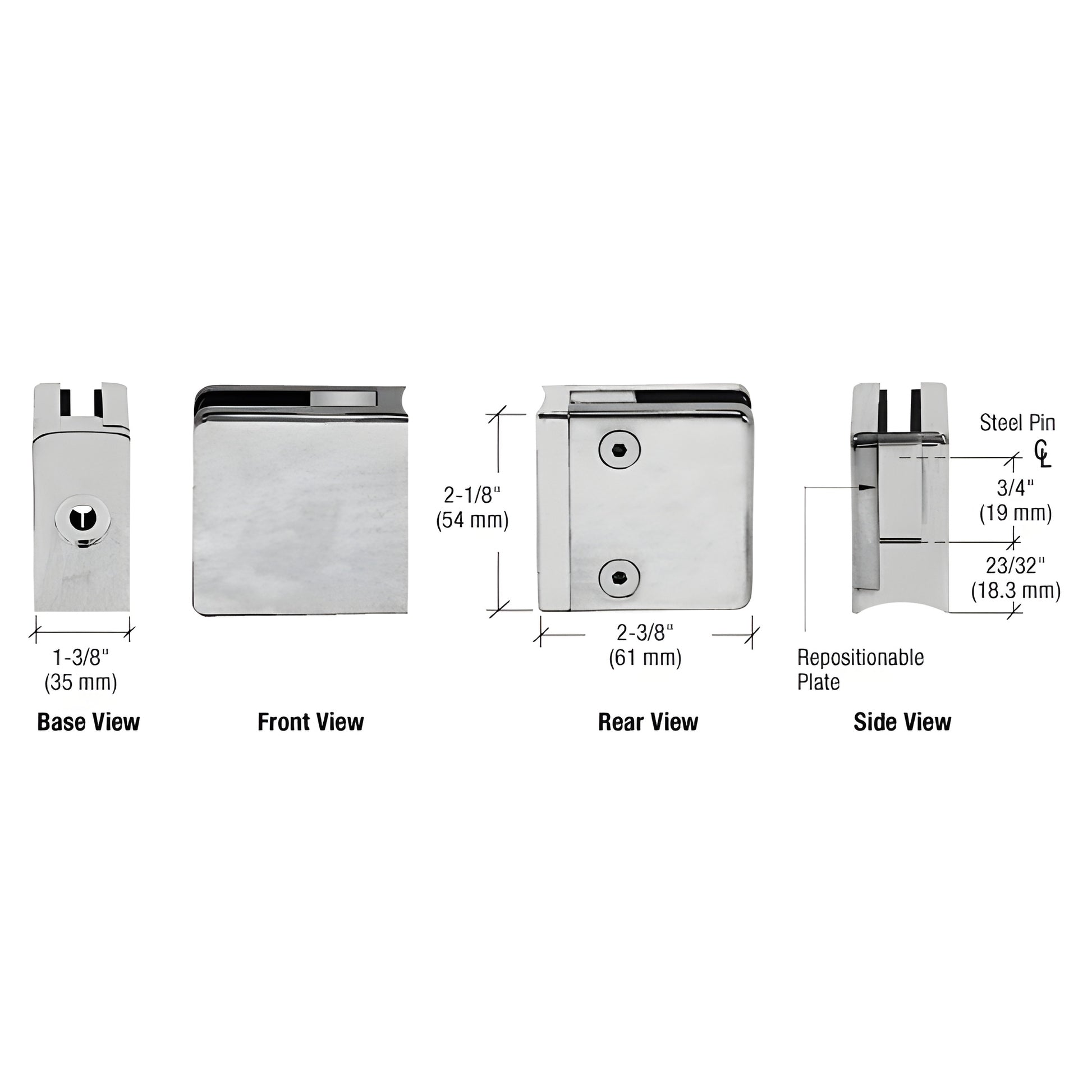

Product Information

Description

Base Type
Radius
Depth
1-3/8 in. (35 mm)
Finish/Color
Satin Chrome
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
2-3/8 in. (60 mm)
Material
Zinc
Profile
Square
Width
2-1/8 in. (54 mm)

Overview

  • Repositionable plate for right- or left-corner mounting on glass
  • Compatible with 2" (51 mm) diameter round tubing
  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Radius surface-mount base design
  • Use with monolithic tempered glass

This CRL Z-Series Square Type Radius Base Glass Clamp with Repositionable Plate (SKU: ZL610SC) is zinc-constructed for durability and corrosion resistance, making it ideal for glass partitions, railings, windbreaks and other architectural glass projects. The repositionable plate allows easy installation at either the right or left glass corner, reducing inventory variations and simplifying field fitting.

Note: Replacement screws: CRL Cat. No. ZCS5X15SS. Replacement gaskets: CRL Cat. No. ZL38SG.

SPECIFICATIONS:
Glass Thickness: 3/8" or 1/2" (10 or 12 mm).
Base Design: Radius surface-mount.
For Use With: 2" (51 mm) diameter round tubing.
Material: Zinc construction.
Glass Fabrication:
For 3/8" (10 mm) thick glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
For 1/2" (12 mm) thick glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Repositionable plate for right or left corner mounting.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor settings.


Order SKU ZL610SC today to streamline installation of tempered glass railings and partitions.
