Product Details
- Our Best Selling Anchors
- Self-Drilling, One Piece Anchors for Mounting to 3/8", 1/2" or 5/8" (10, 13 or 16 mm) Thick Gypsum Wallboard
- Secure and Removable

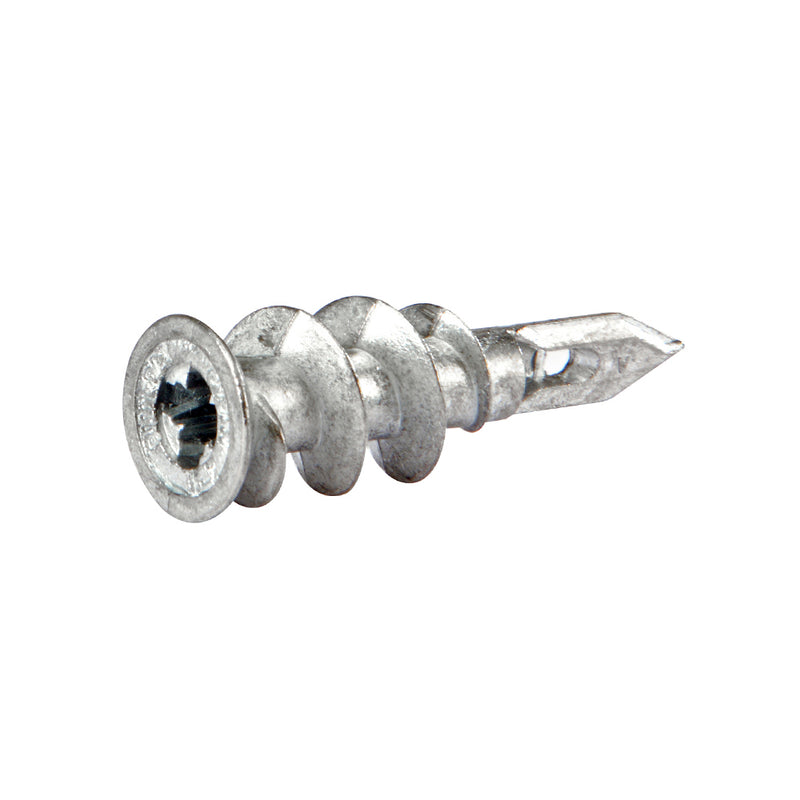

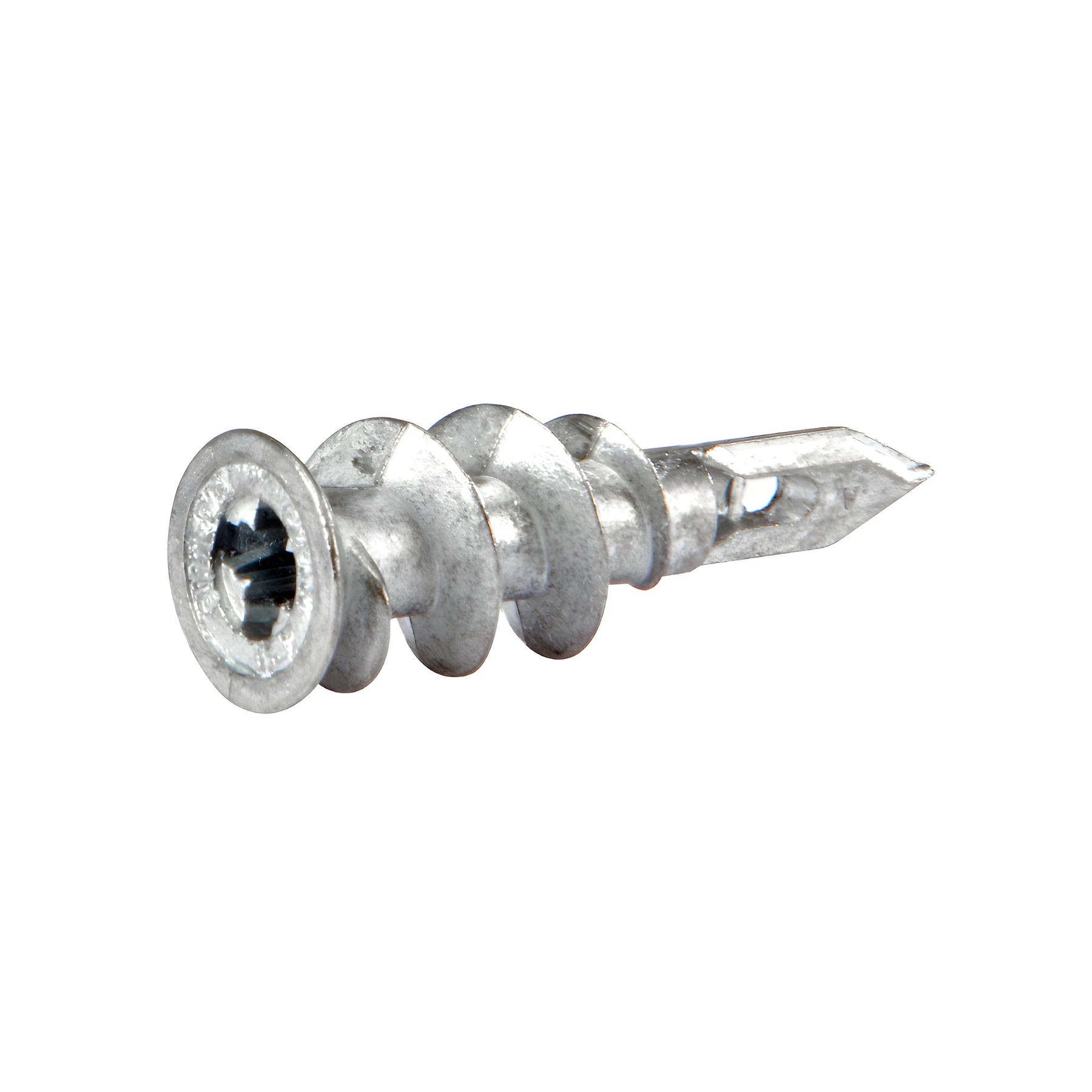

These original CRL ITW Buildex E-Z Anchors are our best selling anchors because they are: Fast (no predrilling or hole preparation necessary); easy (installs with only a #2 Phillips screwdriver or bit); neat (single point self-drills a clean, small hole); secure (deep threads provide strong hold in gypsum wallboard); removable (can be easily backed out). They are available in zinc and plastic to replace plastic plugs, toggle bolts, or "Molly" type anchors for dozens of different mounting applications. Maximum fixture thickness is 3/4" (19 mm).
HOLDING VALUES (ULTIMATE LOADS) - TENSILE (PULLOUT):
AnchorWallboard Thickness
3/8" (10 mm)Wallboard Thickness
1/2" (13 mm)Wallboard Thickness
5/8" (16 mm)E-Z Plastic Lite25 Lbs. (11.3 kg)30 Lbs. (13.6 kg)40 Lbs. (18 kg)
E-Z Plastic Plus40 Lbs. (18 kg)50 Lbs. (22.7 kg)75 Lbs. (34 kg)
E-Z Zinc40 Lbs. (18 kg)50 Lbs. (22.7 kg)75 Lbs. (34 kg)
These performance values are averages obtained under laboratory conditions.
NOTE: These values will change depending on age, moisture, content, and surface treatment of the drywall (gypsum material). Appropriate safety factors should be applied to these values for design purposes.
Product Warning:
Maximum fixture thickness is 3/4" (19 mm).
