CRL Roll-Ezy 48" Zinc-Plated Steel Double-Track Ball Bearing Assembly

• Zinc-plated steel assemblies for use with 3/16" (4 mm) or 1/4" (6 mm) glass
• Pre-cut kits to reduce waste and speed installation
• Durable all-steel construction for long-lasting sliding door hardware

This CRL "Roll-Ezy" Ball Bearing Track Assembly (SKU: KV99248) is designed for bypassing glass doors and smooth, low-friction operation. The easy-to-install assembly uses precision ball-bearing carriers for consistent rolling performance and is intended for 1/4" (6 mm) glass. Available in multiple pre-cut lengths to eliminate on-site cutting and material waste — ideal for residential and commercial glass sliding door projects.

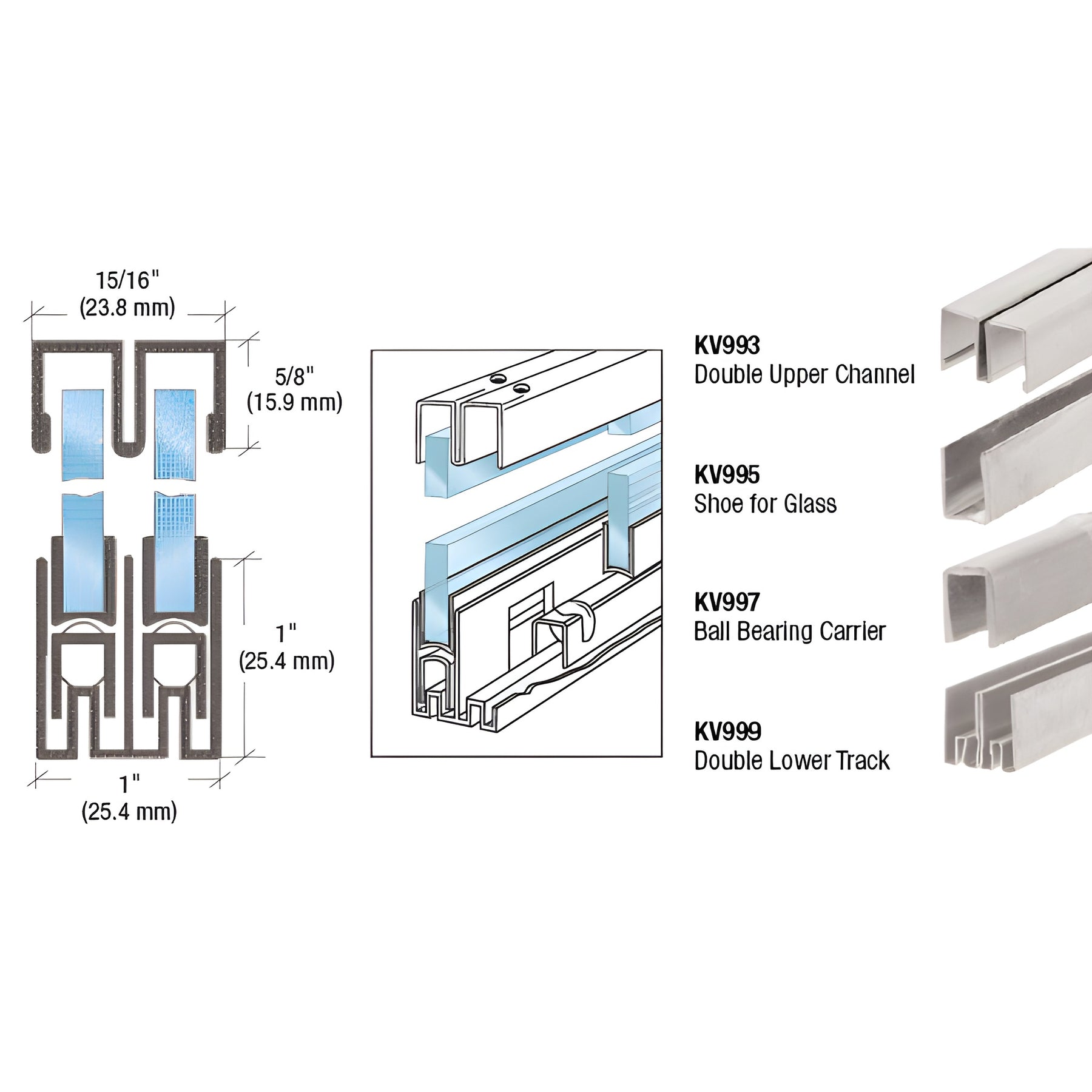

Pre-Cut Assemblies Include:

• *1 piece of KV993 Upper Channel
• *2 pieces of KV995 Shoe for Glass
• *2 pieces of KV997 Ball Bearing Carrier
• *1 piece of KV999 Lower Track

NOTE: Each sliding panel height should not exceed 2.5× the panel width. Maximum load capacity: 50 pounds (22.7 kg) per linear foot.

• *Cut glass 1-1/4" (32 mm) shorter than the opening height and allow 1" (25 mm) overlap for doors.

*Short formula to calculate ball bearing carrier length: (Opening ÷ 4) × 3 = Carrier length.
