Product Details
- Zinc Plated Steel Assemblies for Use with 3/16" (4mm) or 1/4" (6 mm) Glass
- Pre-Cut Kits for less waste
- All Steel Construction
- *1 piece of KV993 Upper Channel
- *2 pieces of KV995 Shoe for Glass
- *2 pieces of KV997 Ball Bearing Carrier
- *1 piece of KV999 Lower Track NOTE: Each sliding panel height not to exceed two and one-half times the width. Max 50 pounds (22.7 kg) per linear foot *Short Formula to calculate the Ball Bearing Carrier length is: Opening divided by 4, then multiply by 3 = Length of Carrier. Cut glass 1-1/4" (32 mm) shorter than height of opening, and allow 1" (25 mm) overlap for doors.
This CRL "Roll-Ezy" Ball Bearing Track Assembly is ideal for installations with bypassing doors. The assembly is easy-to-install, and once installation is complete the doors roll smoothly with frictionless ball-bearing operation. The assembly is designed for use with 1/4" (6 mm) glass, and is available in four pre-cut sizes for your convenience and to eliminate waste.

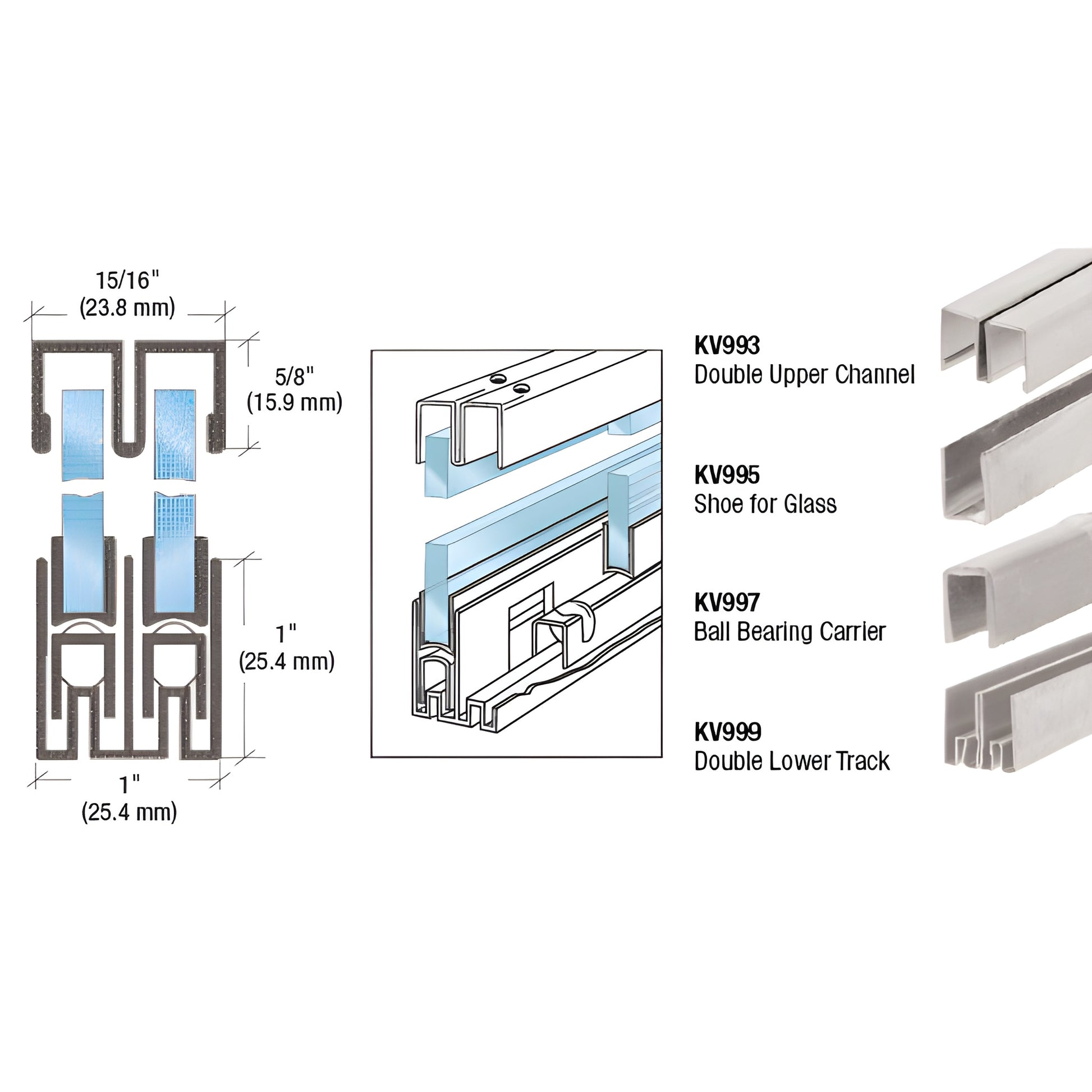

Pre-Cut Assemblies Include:
*1 piece of KV993 Upper Channel
*2 pieces of KV995 Shoe for Glass
*2 pieces of KV997 Ball Bearing Carrier
*1 piece of KV999 Lower Track
NOTE: Each sliding panel height not to exceed two and one-half times the width.
Max 50 pounds (22.7 kg) per linear foot
*Short Formula to calculate the Ball Bearing Carrier length is: Opening divided by 4, then multiply by 3 = Length of Carrier. Cut glass 1-1/4" (32 mm) shorter than height of opening, and allow 1" (25 mm) overlap for doors.
