CRL280 Brushed Stainless Sliding Door Kit 1/2" Tempered Glass
Item# CRL2812GBSA
Shipping Weight: 22.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 22.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Brushed Stainless Anodized
Glazing Thickness
3/8 in. (10 mm)
Glazing Type
Tempered Insulated
Maximum Door Width
59 in. (1499 mm)
Maximum Panel Weight
100 lbs. (45.4 kg)
Mounting Application
Glass
Track Length
118 in. (2997 mm)

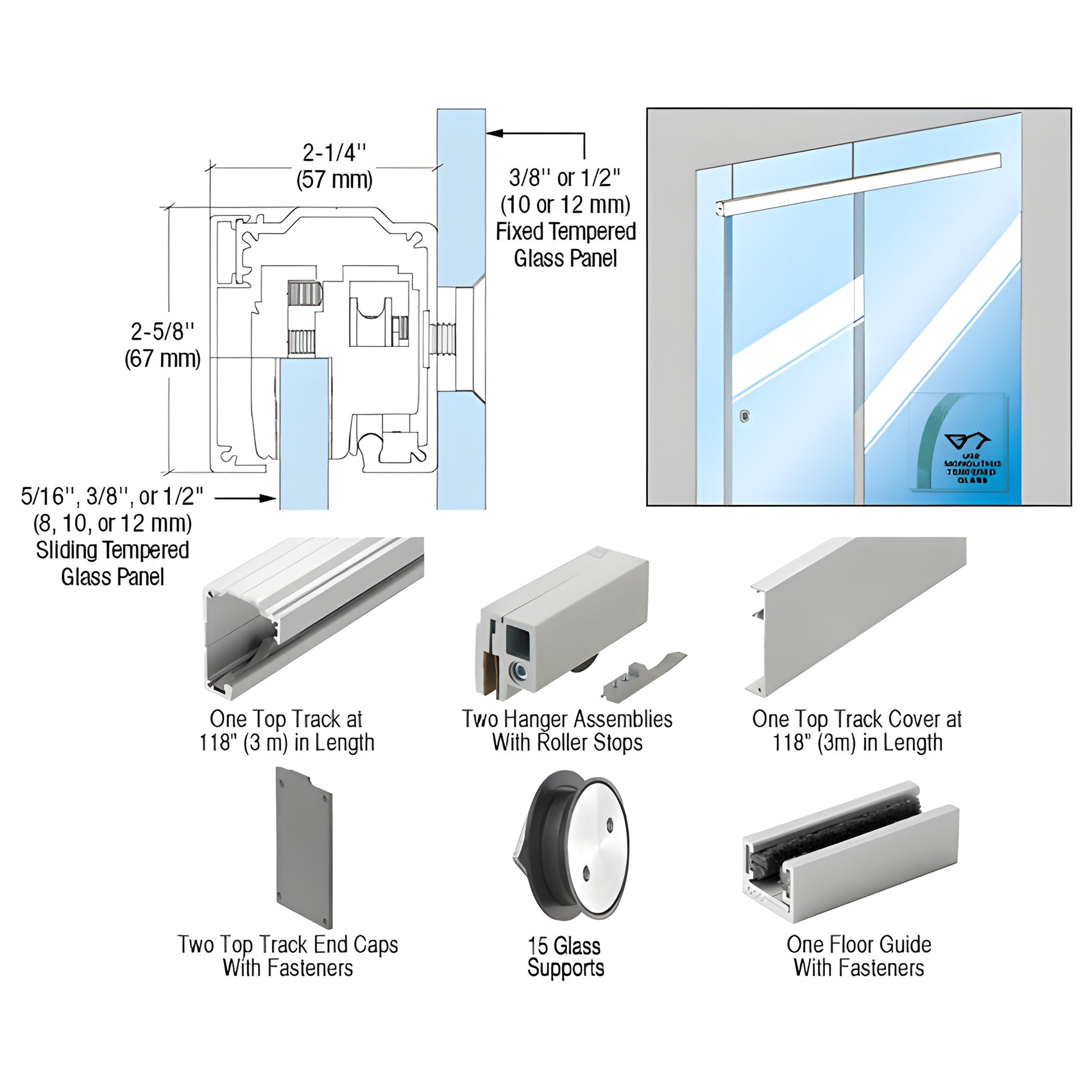

- Single sliding door kit for 1/2" (12 mm) tempered glass
- Maximum weight: 176 pounds (80 kg); maximum panel width: 59" (1.5 m)
- Kits contain all necessary hardware to complete the installation (except tempered glass)
- 118" (3000 mm) anodized aluminum track length
- Use monolithic tempered glass only; laminated glass must not be used with the CRL280 Series
There are three configurations of CRL280 Series Kits. All kits include complete sliding door hardware for commercial and residential glass doors (tempered glass not included). Standard finish is satin anodized; special-order options are available to clad or powder coat in any architectural finish. For kit selection or installation assistance, contact Technical Sales for Commercial Products. SKU: CRL2812GBSA.
NOTE: Laminated glass should not be used with the CRL280 Series.
Product Warning:
STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to determine product suitability for intended use and site conditions. Installers must be qualified and comply with local, state, and federal regulations, and must select appropriate fixing materials and procedures.
