CRL280 Satin Anodized Sliding Door Mount Kit for 1/2" Tempered Glass
CRL280 Satin Anodized Sliding Door Mount Kit for 1/2" Tempered Glass
Regular price
$2,473.63 CAD
Regular price
Sale price
$2,473.63 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL2812G
Shipping Weight: 22.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 22.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. (10 mm)
Glazing Type
Tempered Insulated
Maximum Door Width
29-1/2 in. (749 mm)
Maximum Panel Weight
100 lbs. (45.4 kg)
Mounting Application
Glass
Track Length
118 in. (2997 mm)
Overview

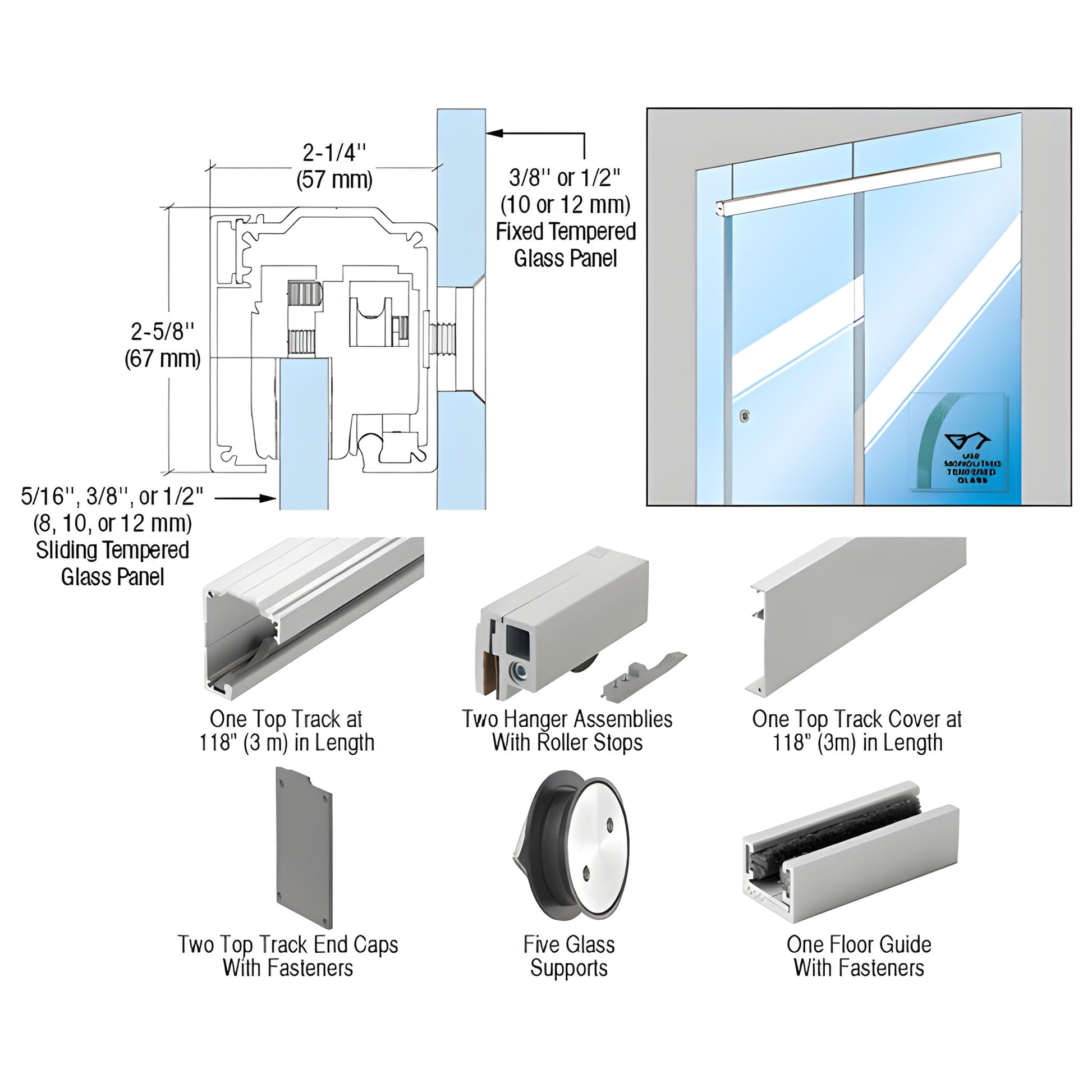

- Single sliding door kit for 1/2" (12 mm) tempered glass
- Maximum weight: 176 pounds (80 kg); maximum panel width: 59" (1.5 m)
- Kits contain all necessary hardware to complete the installation (glass not included)
- 118" (3000 mm) track length
- Use monolithic tempered glass only; laminated glass should not be used
CRL280 Series single sliding door kits (reference SKU CRL2812G) are designed for commercial and residential glass door installations using 1/2" tempered glass. Each kit ships with full mounting hardware and a 118" track, supporting up to 176 lb panels up to 59" wide. Available in a satin anodized finish with special-order options for clad or powder-coated architectural finishes.
Key differentiators: complete hardware kit for 1/2" tempered glass sliding doors, long 118" track for wide openings, satin anodized standard finish, and commercial-grade load capacity—ideal for commercial sliding glass door hardware applications.
NOTE: Laminated glass should not be used with the CRL280 Series.
Product Warning:
STRUCTURAL DISCLAIMER - Users must consult a structural engineer to verify product suitability for their site and intended use. Installers must be qualified and ensure compliance with local, state, and federal regulations, and select appropriate fixings and procedures.
Need help choosing the right CRL280 kit or finish? Contact Technical Sales for Commercial Products or CRL Customer Service to order SKU CRL2812G today.
