CRL

CRL285 Satin Anodized Single Slider Kit for 3/8-1/2 in Tempered Glass

CRL285 Satin Anodized Single Slider Kit for 3/8-1/2 in Tempered Glass

$2,233.67 CAD
$2,233.67 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CRL28512
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Anodized
Glazing Thickness
5/16 in. (8mm) to 1/2 in. (12mm)
Glazing Type
Tempered Insulated
Maximum Panel Weight
100 lbs. (45.4 kg)
Minimum Door Width
25-3/16 in. (640mm) / 40-3/16 in. (1020mm)
Mounting Application
Wall,Ceiling
Track Length
118 in. (2997 mm)

Overview

  • For 1/2" (12 mm) monolithic glass
  • Maximum weight 176 lbs (80 kg); maximum panel width 59" (1.5 m)

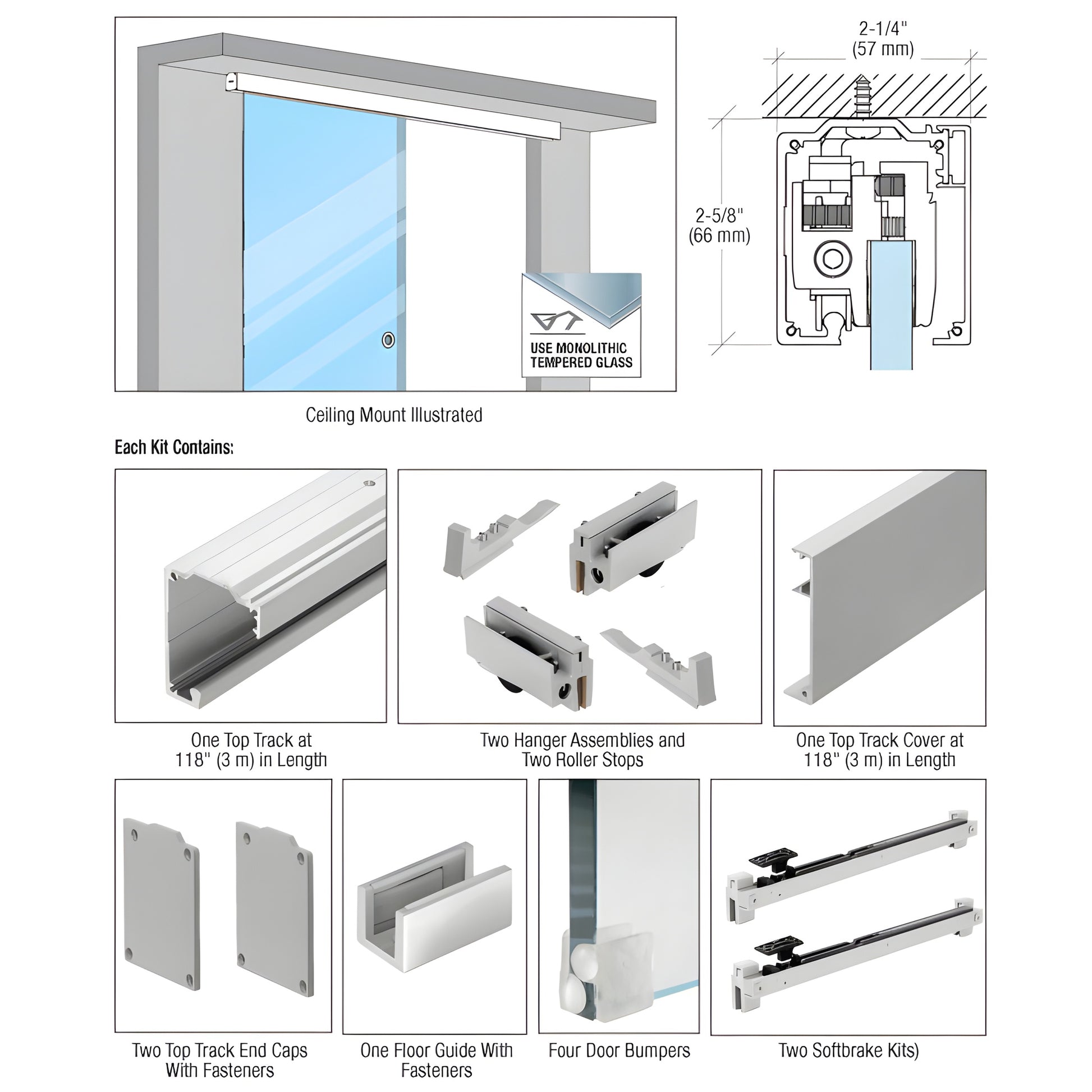

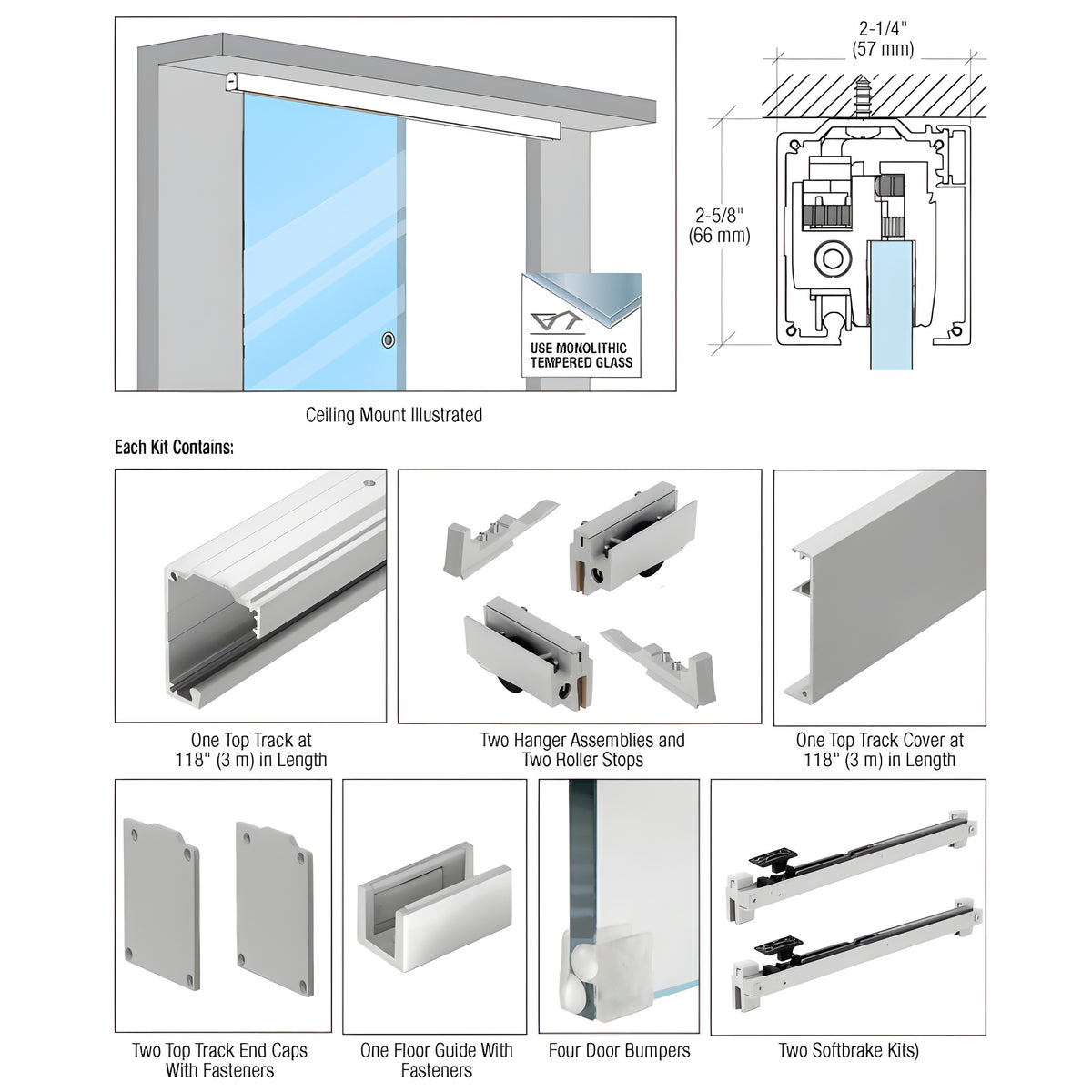

  • Kits contain all necessary hardware to complete the installation (glass not included)
  • 118" (2997 mm) extruded top track — mounts to structural wall or ceiling

This configuration of the CRL285 Series Slider (SKU: CRL28512) is engineered for single-door sliding glass applications where the top track is mounted to a structural wall or ceiling. The kit includes all components required for installation except tempered monolithic glass. One factory-supplied "Softbrake" is included per direction of travel to provide controlled, quiet stopping — a key differentiator for smooth operation. Minimum sliding panel widths: 25-3/16" (640 mm) for single-direction control; 40-3/16" (1020 mm) for control in both directions.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm suitability for the intended use and site conditions. Installers must be qualified and knowledgeable about local, state, and federal codes, safety factors, and proper selection of fixings and procedures.

Do not use laminated glass. For monolithic glass use only.

Most shipping weights are approximate and have not been verified. If exact shipping weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are of the actual product or a close representation; colors may vary by monitor.


Available now — add the CRL28512 sliding glass door hardware kit to your cart for a complete top-mounted sliding solution.
