CRL285 Satin Anodized Slider Kit w/ Fixed Panel for Tempered Glass
Item# CRL28512F
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Satin Anodized
Glazing Thickness
5/16 in. (8mm) to 1/2 in. (12mm)
Glazing Type
Tempered
Maximum Panel Weight
100 lbs. (45.4 kg)
Minimum Door Width
25-3/16 in. (640mm) / 40 3/16 in. (1020mm)
Mounting Application
Wall,Ceiling
Track Length
118 in. (2997 mm)
- Softbrake braking system included for controlled, quiet stops
- Single sliding door kit for 1/2" (12 mm) tempered glass
- Maximum weight 176 lbs (80 kg); maximum panel width 59" (1.5 m)
- Kits contain all necessary hardware to complete the installation (excludes tempered glass and pull hardware)
- 118 in. (2997 mm) track length

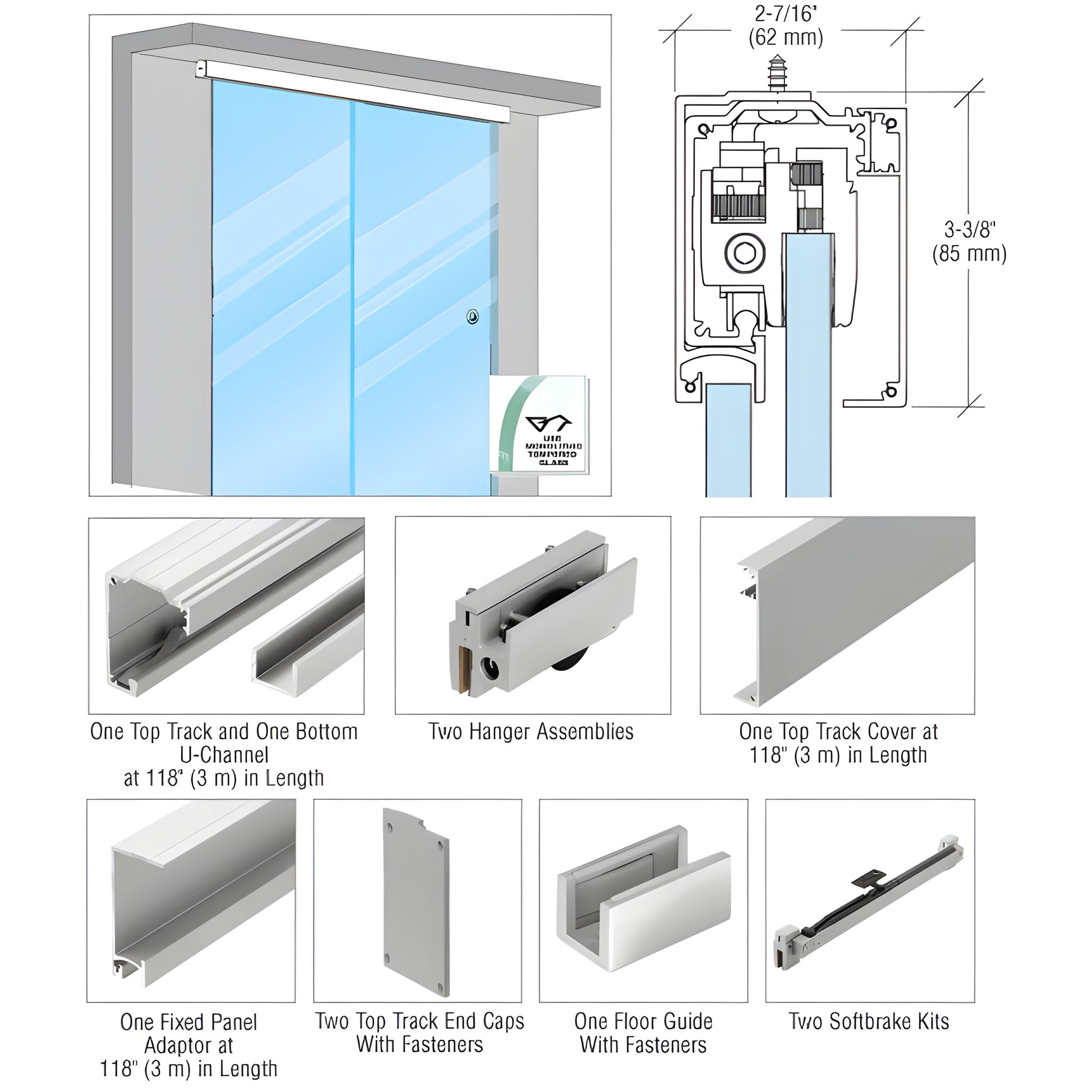

This CRL285 Series Slider configuration (SKU: CRL28512F) is for single-door with fixed-panel applications where the top track mounts to a structural wall or ceiling. The kit includes all components needed to install a monolithic tempered glass sliding door system—except the tempered glass and pull hardware. One Softbrake is required for each direction of travel to be controlled per panel. Minimum sliding panel width for single-direction control: 25-3/16" (640 mm); for control in both directions: 40-3/16" (1020 mm).
Product Warning:
STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm suitability for intended use and site conditions. Installers must be qualified and follow local, state, and federal regulations, safety factors, and appropriate fixing materials and procedures.
NOTE: Laminated glass should not be used with CRL285 Series Kits. For monolithic glass use only.
Most shipping weights are approximate. If exact shipping weight is required to calculate shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
Optimize your glass sliding door installation with the CRL28512F single sliding door kit—order now or contact CRL for assistance and technical support.
