Shipping weights are approximate. If exact weight is required to calculate shipping, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
CRL
CRL50 Matte Black Single Sliding Door Dropped Ceiling Mount Kit
CRL50 Matte Black Single Sliding Door Dropped Ceiling Mount Kit
Regular price
$1,269.76 CAD
Regular price
Sale price
$1,269.76 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL50DMBL
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Matte Black
Glazing Thickness
5/16 in. (8 mm)
Glazing Type
Tempered Insulated
Maximum Panel Weight
176 lbs. (80 kg)
Mounting Application
Dropped Ceiling
Top Hung
Yes
Track Length
118 in. (2997 mm)
Overview

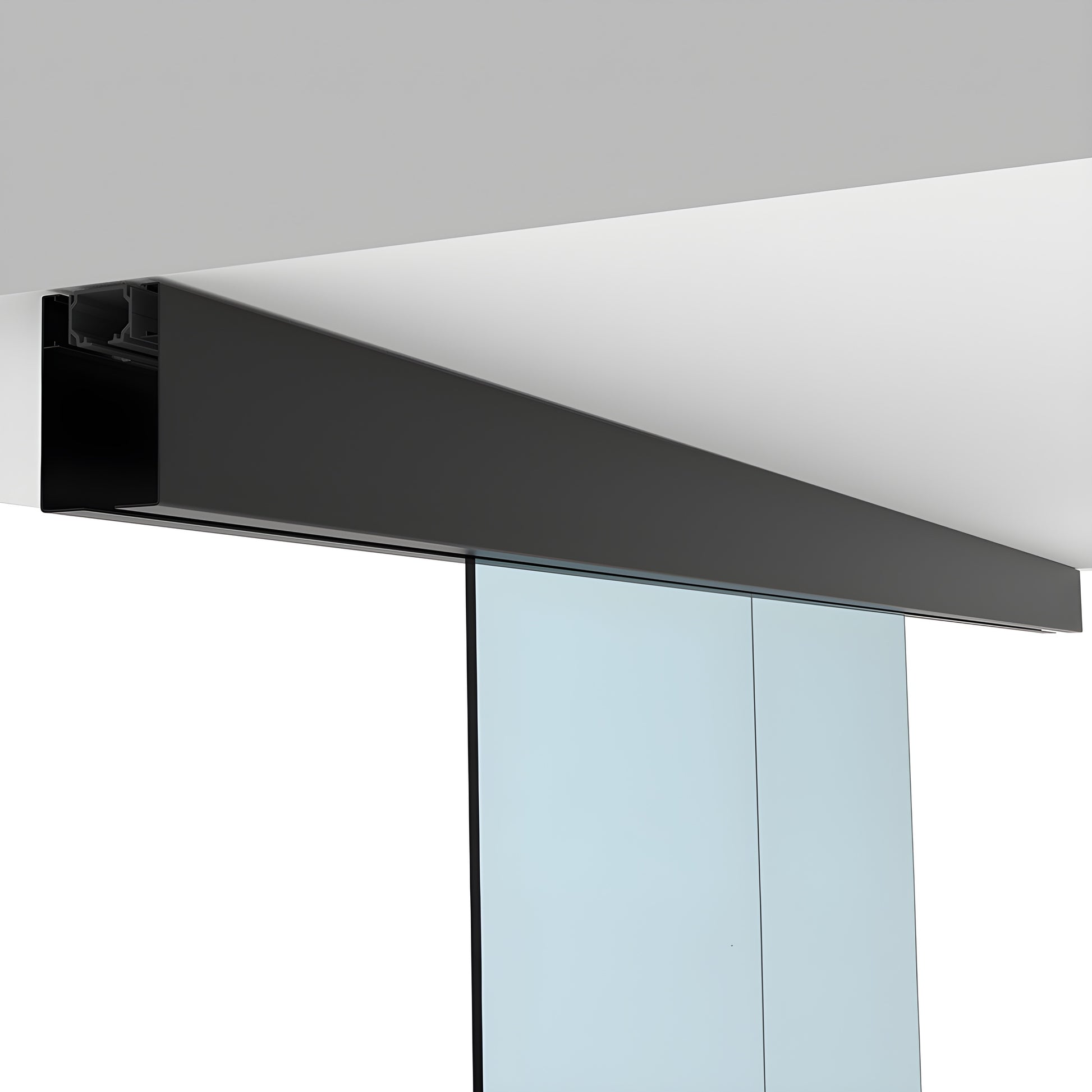

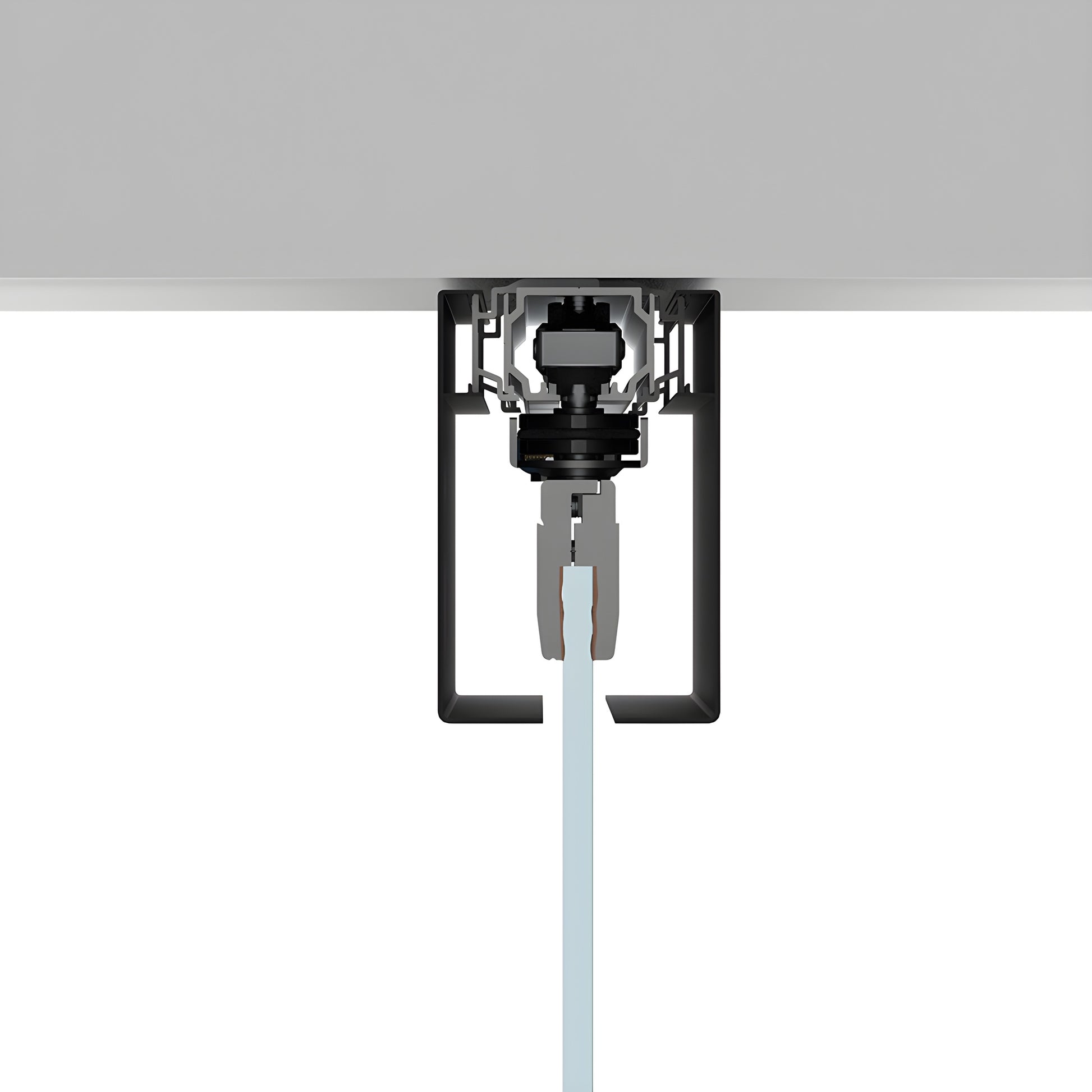

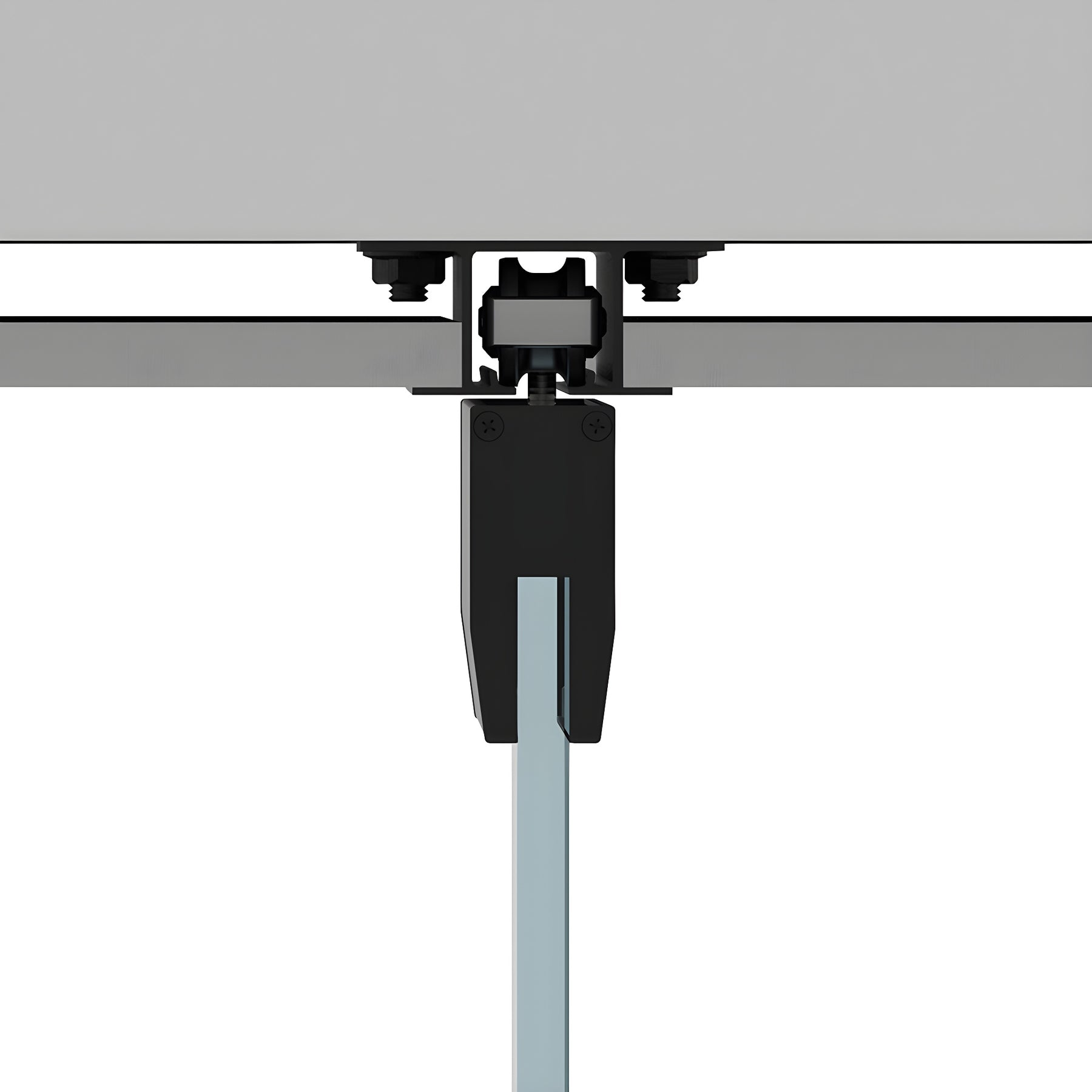

- CRL50 Series dropped ceiling mount kit for single sliding glass doors (SKU: CRL50DMBL)
- Designed for monolithic tempered glass only
- For 5/16" or 3/8" (8 or 10 mm) tempered glass
- Supports doors up to 176 lb (80 kg); maximum door width 59" (1.5 m)
This CRL50 Series slider configuration is for single-door dropped ceiling installations. Satin anodized hanger covers and end caps are included to create a continuous rail appearance and conceal the top roller bolt. Pull hardware and optional finishes are available separately.
NOTE: Structural support by others is required when mounting to dropped ceilings; fasteners are not included. Do not use laminated glass.
Product Warning:
STRUCTURAL DISCLAIMER — Customers must consult a structural engineer to confirm product suitability for site conditions. Installers must be qualified and follow local, state, and federal codes, safety factors, and correct fixing materials and procedures.
Order the CRL50DMBL dropped ceiling sliding door kit for a clean, concealed rail look—contact CRL or your local distributor to buy or get a quote.
Specifications
CAD Drawings - dwg
