CRL

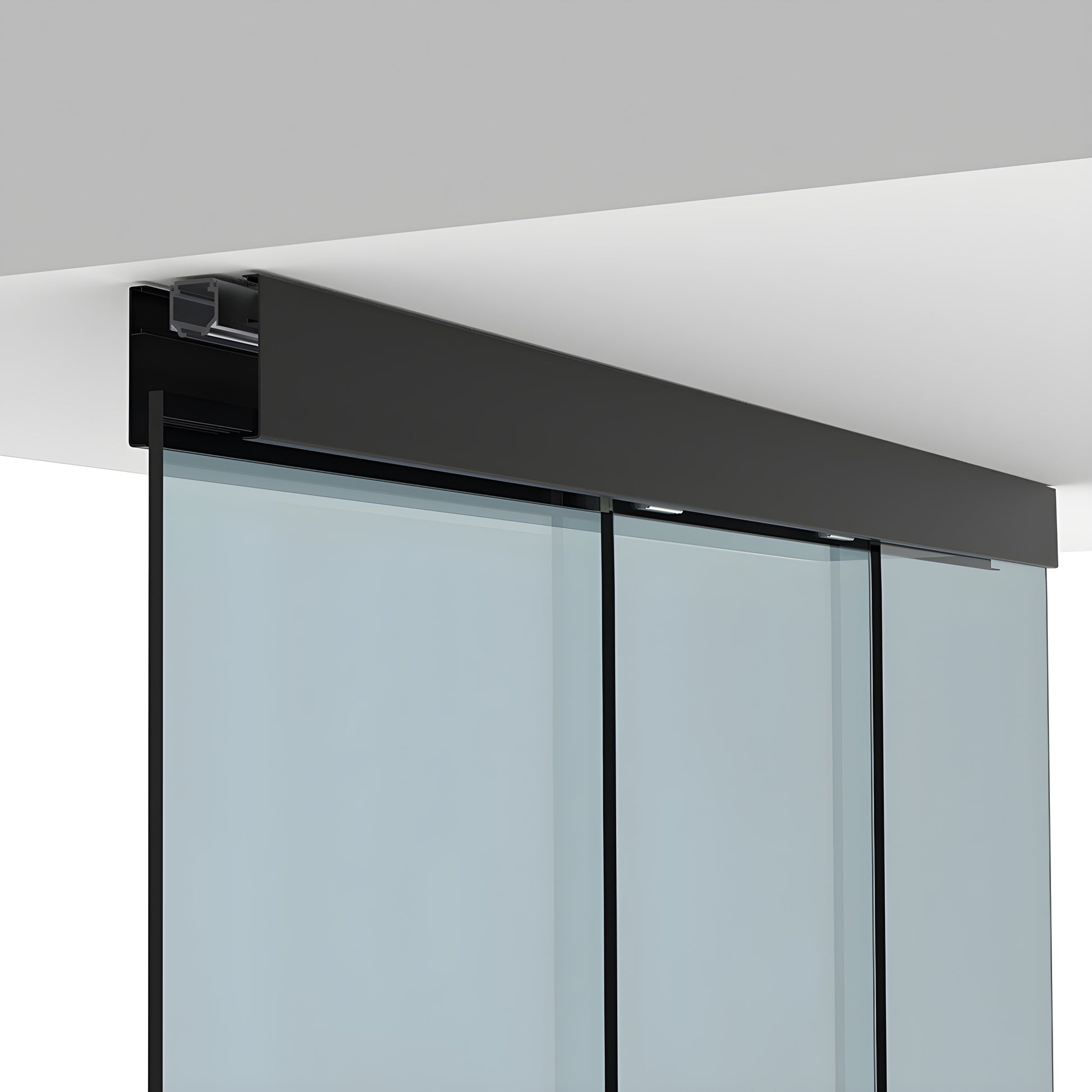

CRL50 Matte Black Sliding Door Kit w/ 2 Sidelites Ceiling Mount
CRL50 Matte Black Sliding Door Kit w/ 2 Sidelites Ceiling Mount
Regular price
$1,666.27 CAD
Regular price
Sale price
$1,666.27 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL502CMBL
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Matte Black
Glazing Thickness
5/16 in. (8 mm)
Glazing Type
Tempered Insulated
Maximum Panel Weight
176 lbs. (80 kg)
Mounting Type
Ceiling
Top Hung
Yes
Track Length
118 in. (2997 mm)
Overview
- CRL50 Series structural ceiling mount kit (SKU: CRL502CMBL) for installation to structural ceilings
- Compatible with 5/16" or 3/8" (8 or 10 mm) tempered glass
- 3000 mm track length
- Supports doors up to 176 lb (80 kg); maximum door width 59" (1.5 m)
There are three CRL50 Series kit configurations for single glass doors mounting to a structural ceiling. Each kit includes all mounting hardware and components required for installation (tempered glass not included). Available in a satin anodized finish, with optional powder paint or custom cladding in any architectural finish—ideal for commercial and high-end residential tempered glass door installations.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Order the CRL50 Series structural ceiling mount kit (CRL502CMBL) for a dependable, heavy‑duty mounting solution for tempered glass doors—contact CRL Customer Service to confirm specifications and finishes.
Specifications
CAD Drawings - dwg
