Most shipping weights are approximate and have not been verified. If you need an exact shipping weight to calculate shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
CRL

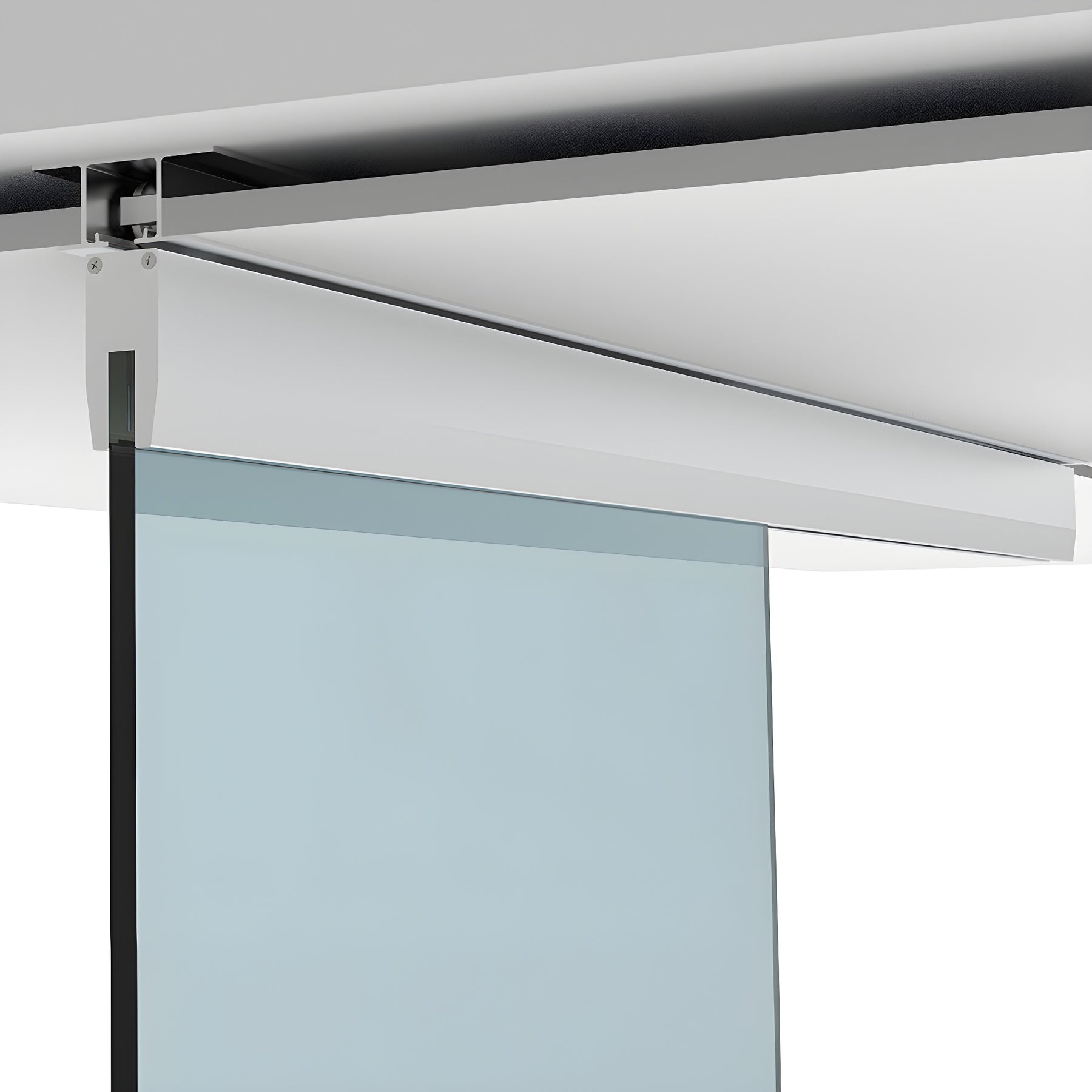

CRL50 Satin Anodized Single Sliding Door Drop Ceiling Mount Kit
CRL50 Satin Anodized Single Sliding Door Drop Ceiling Mount Kit
Regular price
$1,121.27 CAD
Regular price
Sale price
$1,121.27 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL50D
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
5/16 in. (8 mm)
Glazing Type
Tempered Insulated
Maximum Panel Weight
176 lbs. (80 kg)
Mounting Application
Dropped Ceiling
Top Hung
Yes
Track Length
118 in. (2997 mm)
Overview
- CRL50 Series Dropped Ceiling Mount Kit (SKU: CRL50D) for dropped ceiling sliding door installations
- Designed for monolithic tempered glass
- Accepts 5/16" or 3/8" (8 or 10 mm) tempered glass
- Supports doors up to 176 lb (80 kg); maximum door width 59" (1.5 m)

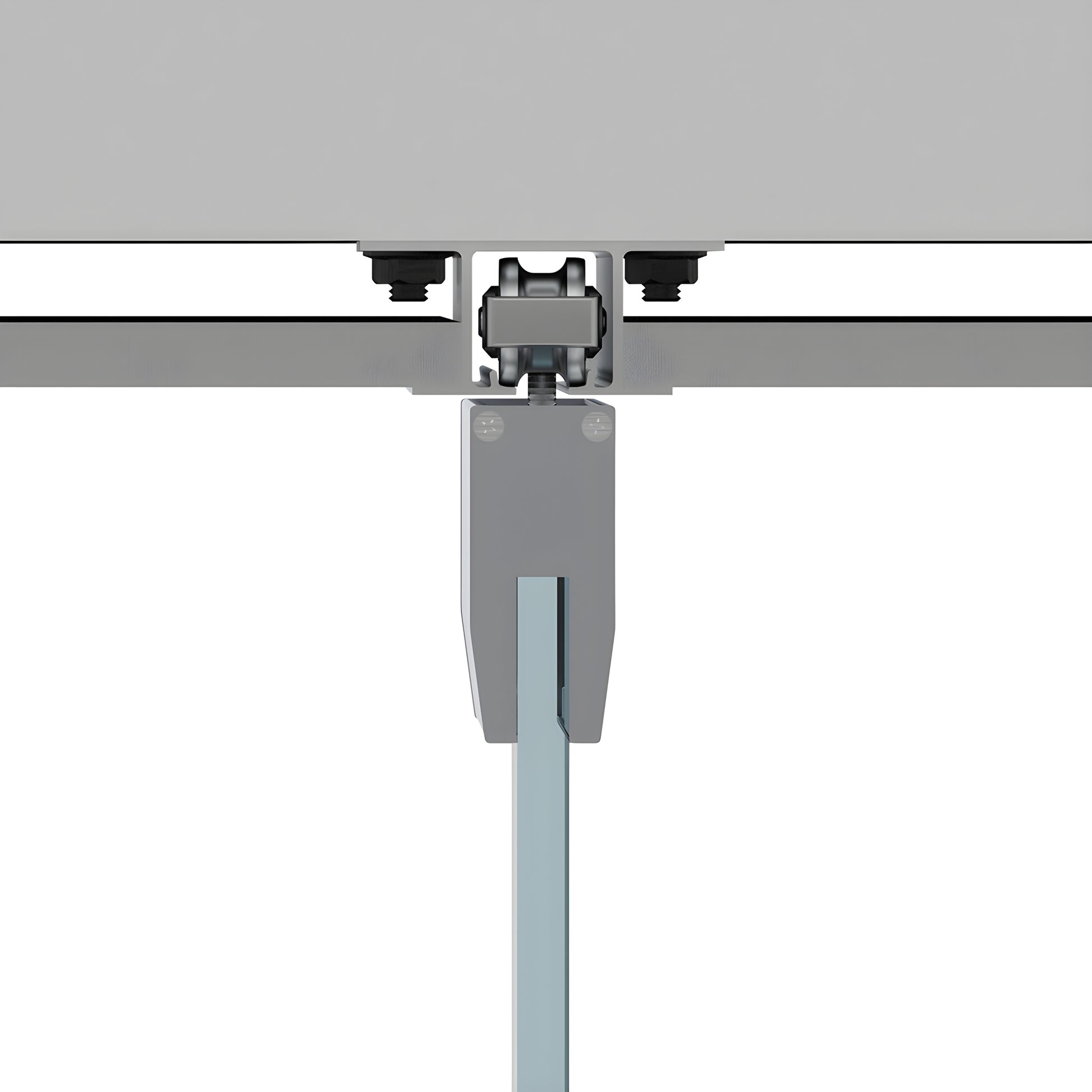

This configuration of the CRL50 Series Slider is optimized for single-door, dropped ceiling applications. Satin anodized hanger covers and end caps are included to create a continuous "full rail" appearance while concealing the top roller bolt. Pull hardware and optional finishes are available separately.
NOTE: Structural support (by others) is required when using dropped ceiling tracks; fasteners not included. Do not use laminated glass.
Product Warning:
STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm this dropped ceiling sliding door kit is suitable for their site conditions and intended use. Installers must be qualified and familiar with local, state, and federal regulations, safety requirements, and correct fixing materials and procedures.
Order the CRL50D dropped ceiling sliding door kit today to get durable tempered glass sliding door hardware with a clean full-rail look.
Specifications
CAD Drawings - dwg
