CRL50 Satin Anodized Sliding Door Kit - Fixed Panel, Dropped Ceiling
CRL50 Satin Anodized Sliding Door Kit - Fixed Panel, Dropped Ceiling
Regular price
$1,340.49 CAD
Regular price
Sale price
$1,340.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL501D
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
5/16 in. (8 mm)
Glazing Type
Tempered Insulated
Maximum Panel Weight
176 lbs. (80 kg)
Mounting Application
Dropped Ceiling
Top Hung
Yes
Track Length
118 in. (2997 mm)
Overview
- CRL50 Series Dropped Ceiling Mount Kits for installation into dropped ceilings (SKU: CRL501D)
- Designed for monolithic tempered glass
- Fits 5/16" or 3/8" (8 or 10 mm) tempered glass panels
- 3000 mm track length for single door with fixed panel
- Accommodates doors up to 176 lb (80 kg); maximum door width 59" (1.5 m)

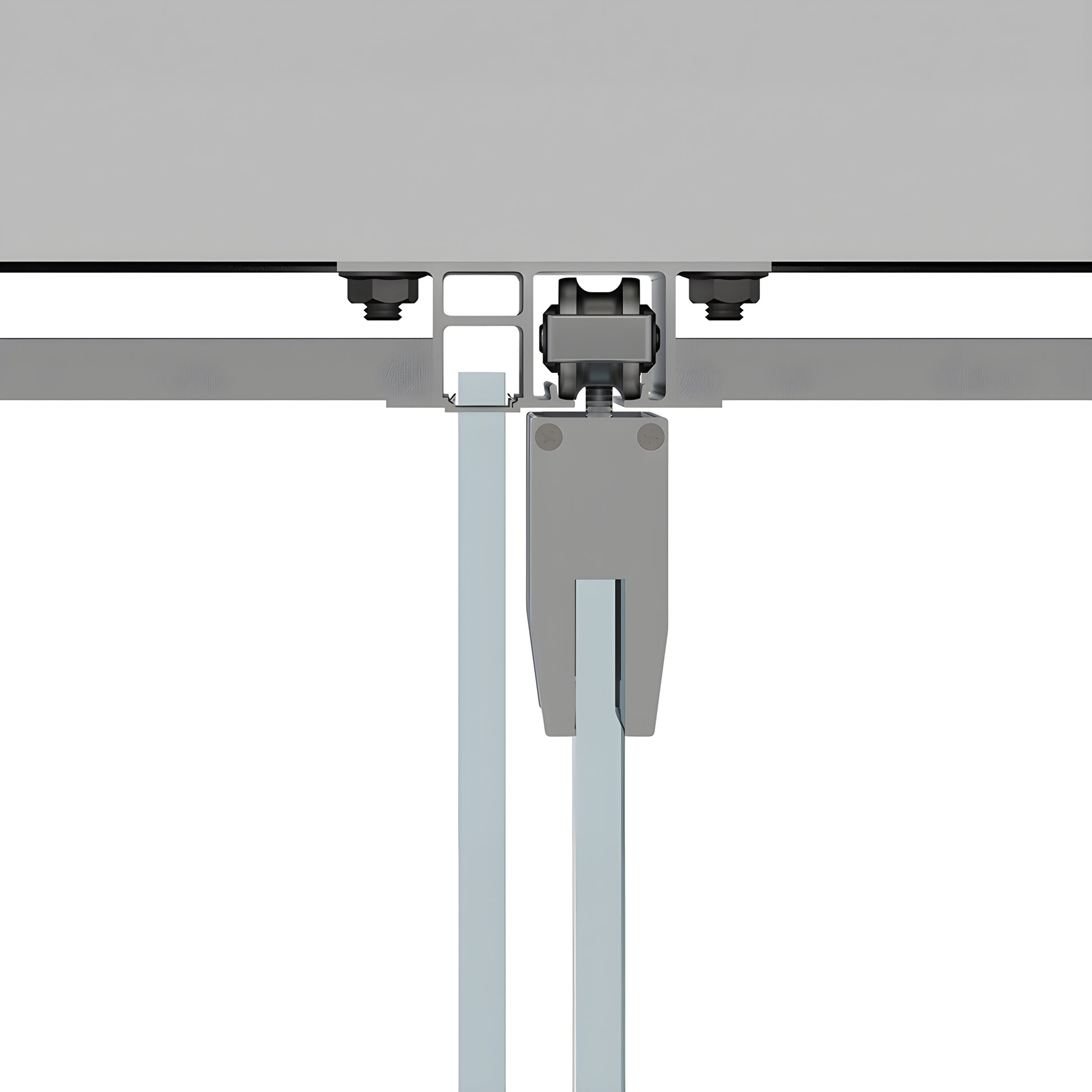

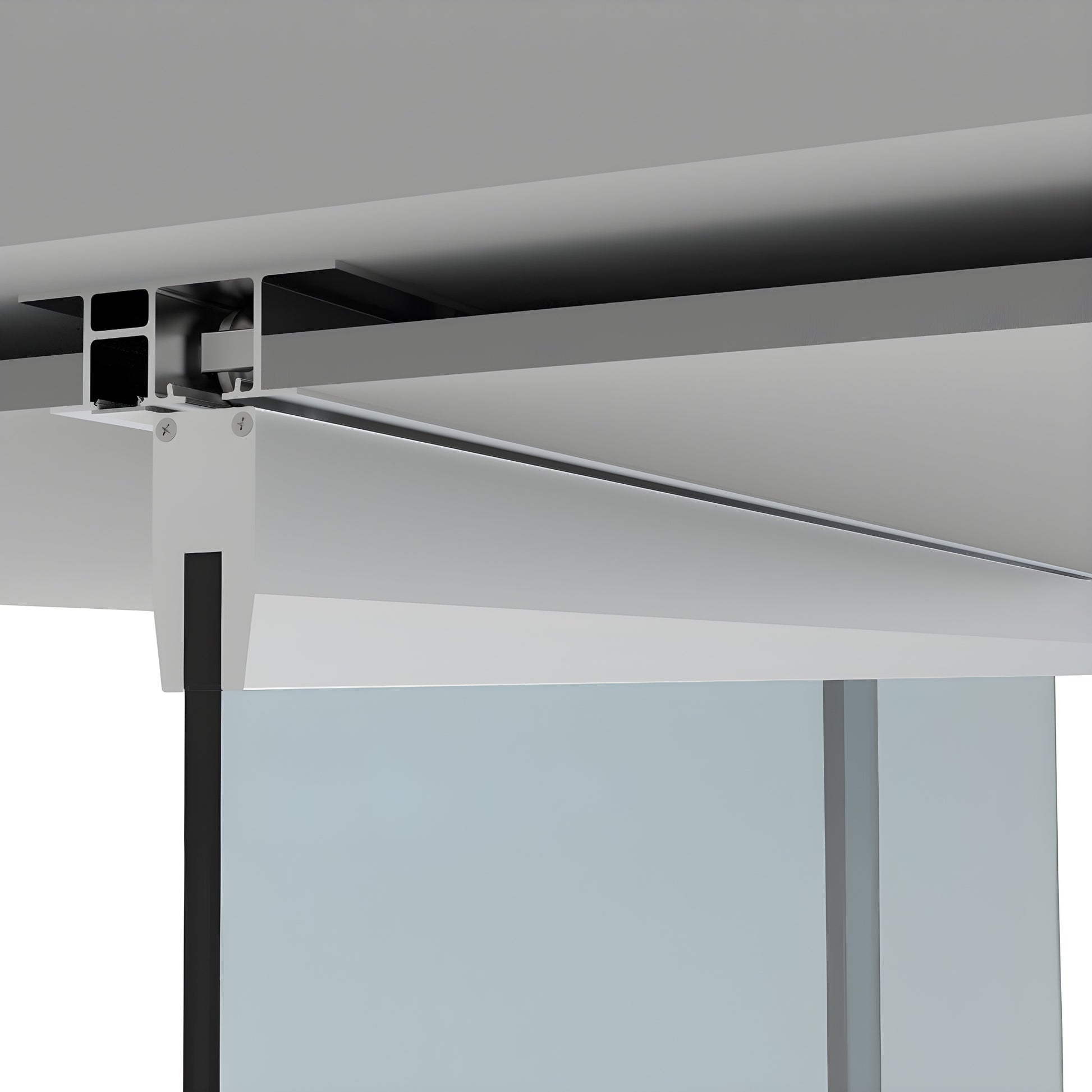

This configuration of the CRL50 Series Slider (CRL501D) is intended for single sliding door with fixed panel in dropped ceiling applications. Satin anodized hanger covers and end caps are supplied to create a full-rail appearance and conceal the top roller bolt. Pull hardware and optional finishes are available separately.
NOTE: Structural support (by others) is required when using dropped ceiling tracks; fasteners not included. Do not use laminated glass.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who use this product are solely responsible for consulting a structural engineer to confirm suitability for the intended installation and site conditions. Installers must be qualified and follow local, state, and federal regulations, safety factors, and proper fixing procedures.
Order the CRL501D dropped ceiling sliding door kit today to get durable tempered glass sliding door hardware for commercial and residential installations.
Specifications
CAD Drawings - dwg
