CRL

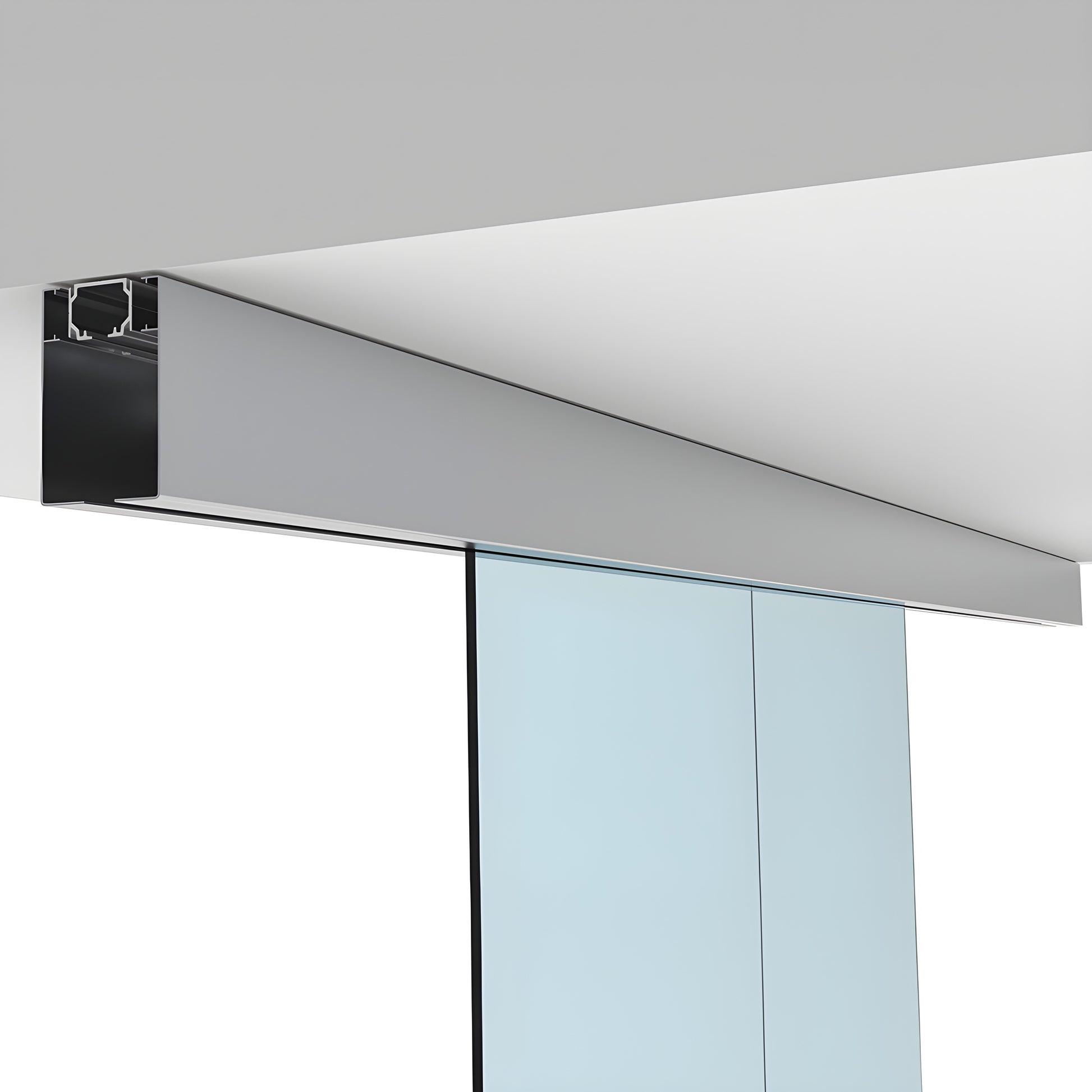

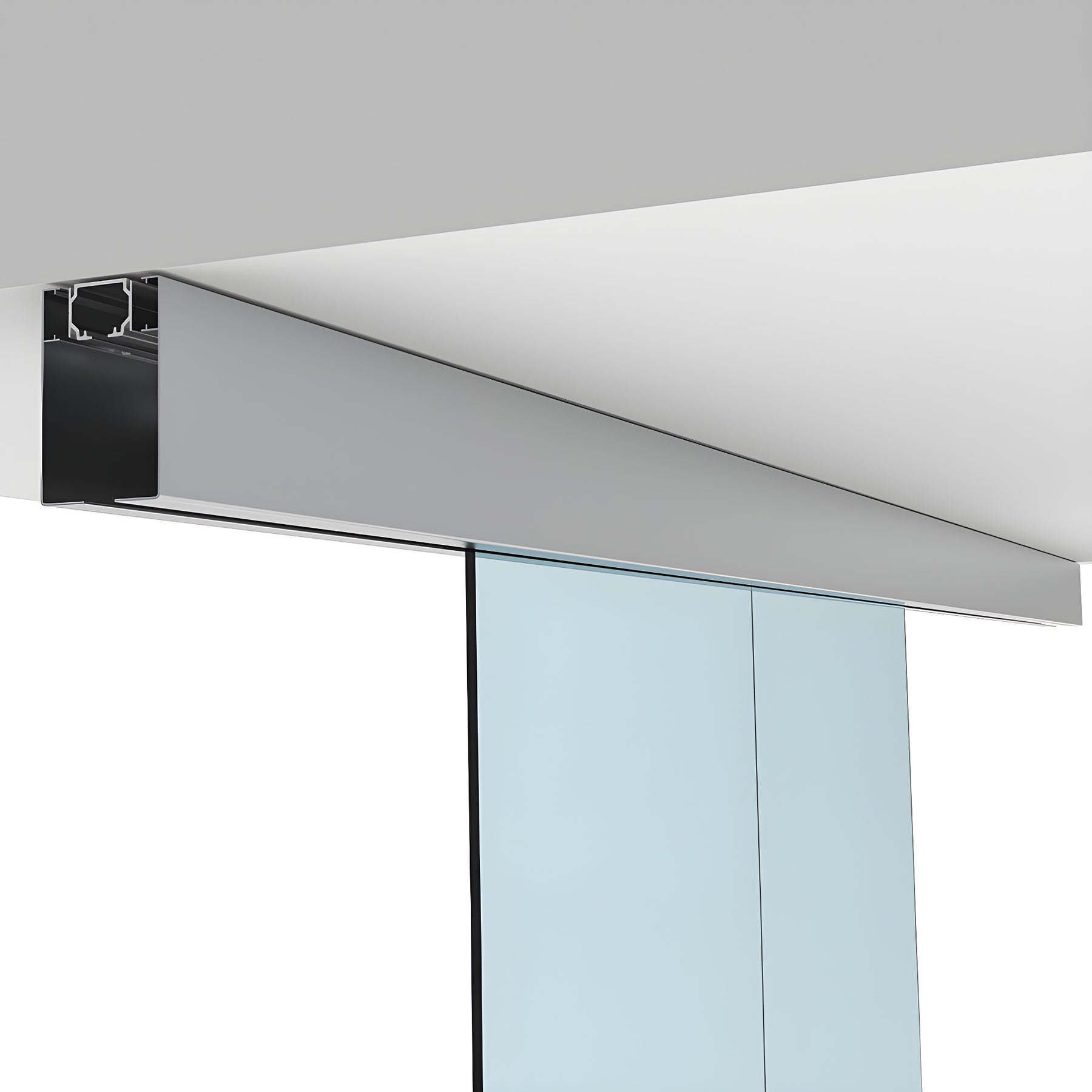

CRL50 Bi-Parting Synchronized Ceiling Mount Kit for Sliding Doors
CRL50 Bi-Parting Synchronized Ceiling Mount Kit for Sliding Doors
Regular price
$2,672.11 CAD
Regular price
Sale price
$2,672.11 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL50CS2
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
5/16 in. (8 mm)
Glazing Type
Tempered Insulated
Maximum Panel Weight
176 lbs. (80 kg)
Mounting Application
Ceiling
Top Hung
Yes
Track Length
118 in. (2997 mm)
Overview
- Synchronized operation of two bi-parting panels
- For 5/16" or 3/8" (8 or 10 mm) tempered glass
- Satin anodized finish
- Rollers provide up to 1/4" (6 mm) vertical adjustment
- Accommodates doors up to 176 lb (80 kg) and maximum 29-1/2" (750 mm) door width
These CRL50 Kits (SKU: CRL50CS2) are top-hung, synchronized bi-parting glass door kits designed for smooth, simultaneous movement of two panels when the single panel is operated. Ideal for commercial and residential sliding glass door applications requiring synchronized bi-parting glass door hardware and top track mounting to a structural ceiling. Kits include all installation hardware except the glass and door pulls.
Operation of one panel moves the other in a smooth synchronized fashion.
NOTE: Laminated glass should not be used with CRL50/51 Series Kits.
Product Warning:
STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm product suitability for the intended use and site conditions. Installers must be qualified and ensure compliance with local, state, and federal regulations, safety factors, and appropriate fixing materials and procedures.
Order SKU CRL50CS2 today for reliable synchronized bi-parting tempered glass door hardware—contact CRL for pricing and lead times.
Specifications
CAD Drawings - dwg
