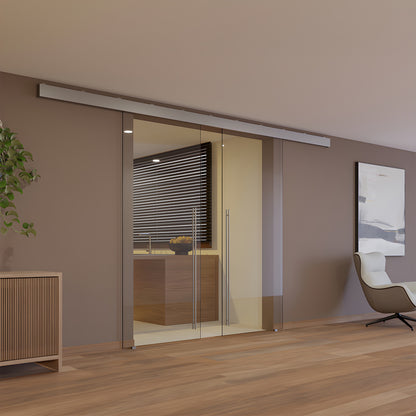

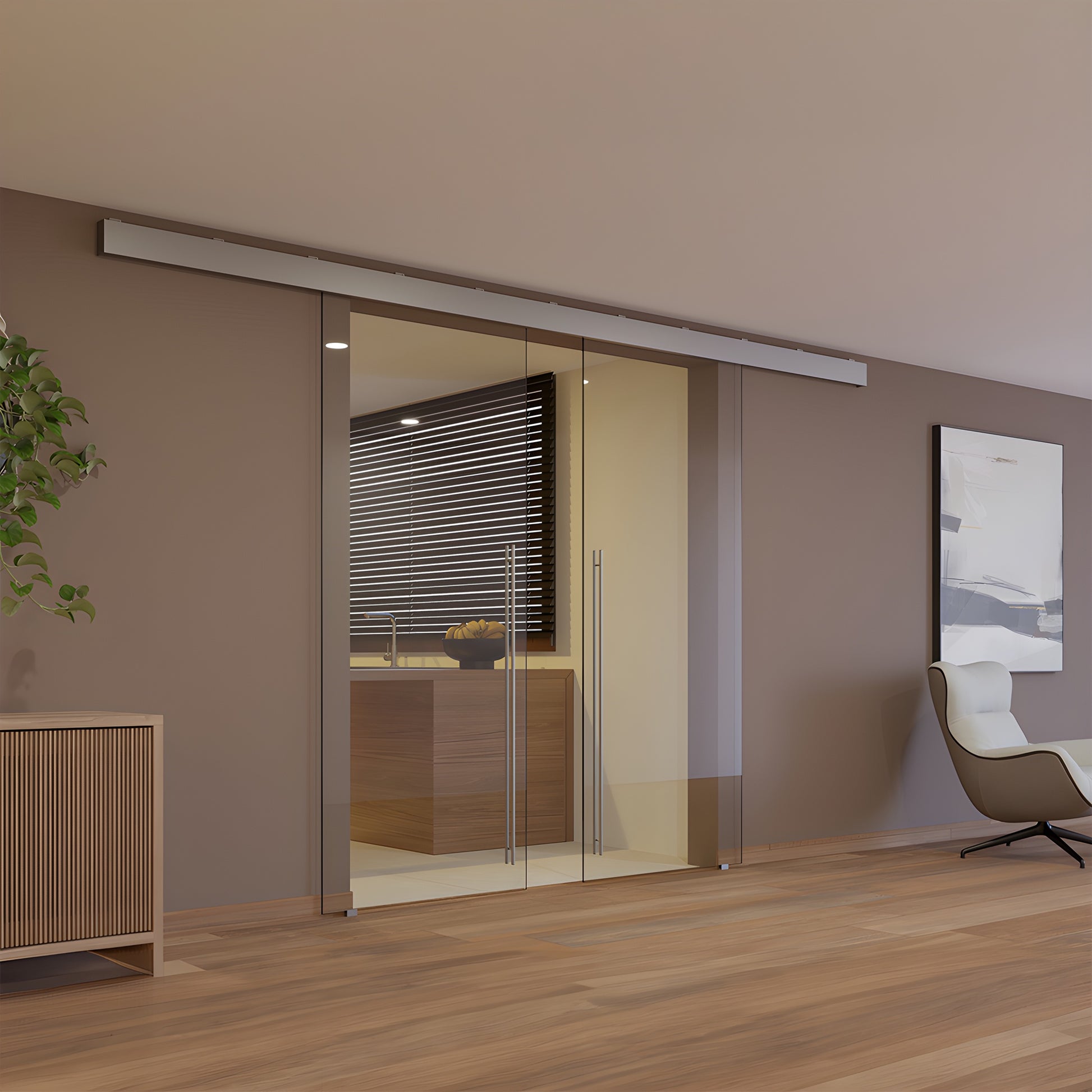

CRL50 Synchronized Bi-Parting Wall-Mount Kit for Glass Sliding Doors

• Synchronized operation of two bi-parting panels — ideal for synchronized bi-parting glass door installations (SKU: CRL50S2)
• For 5/16" or 3/8" (8 or 10 mm) monolithic tempered glass
• Rollers provide up to 1/4" (6 mm) vertical adjustment for precise door alignment
• Supports doors up to 176 lb (80 kg) each; maximum door width 29-1/2" (750 mm)

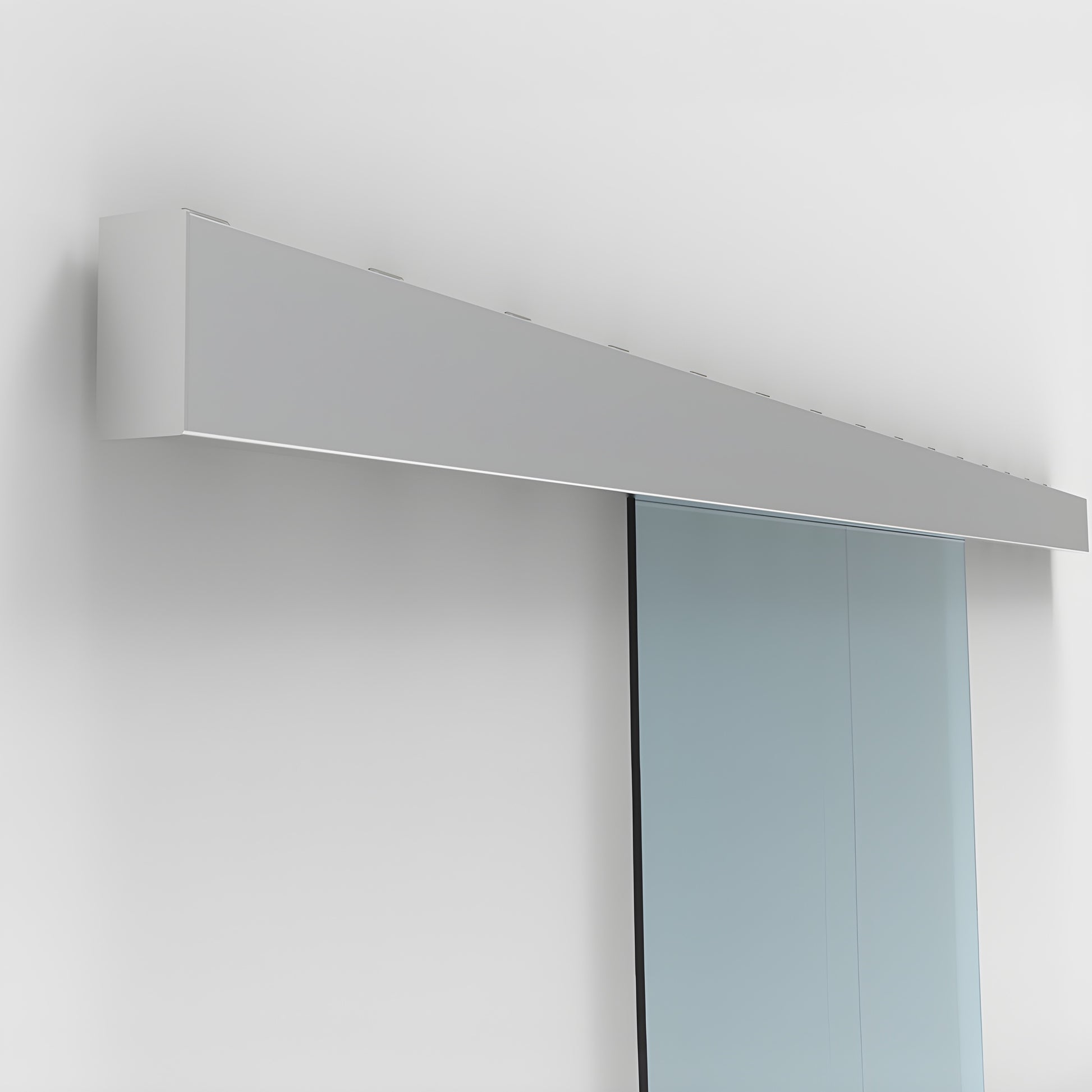

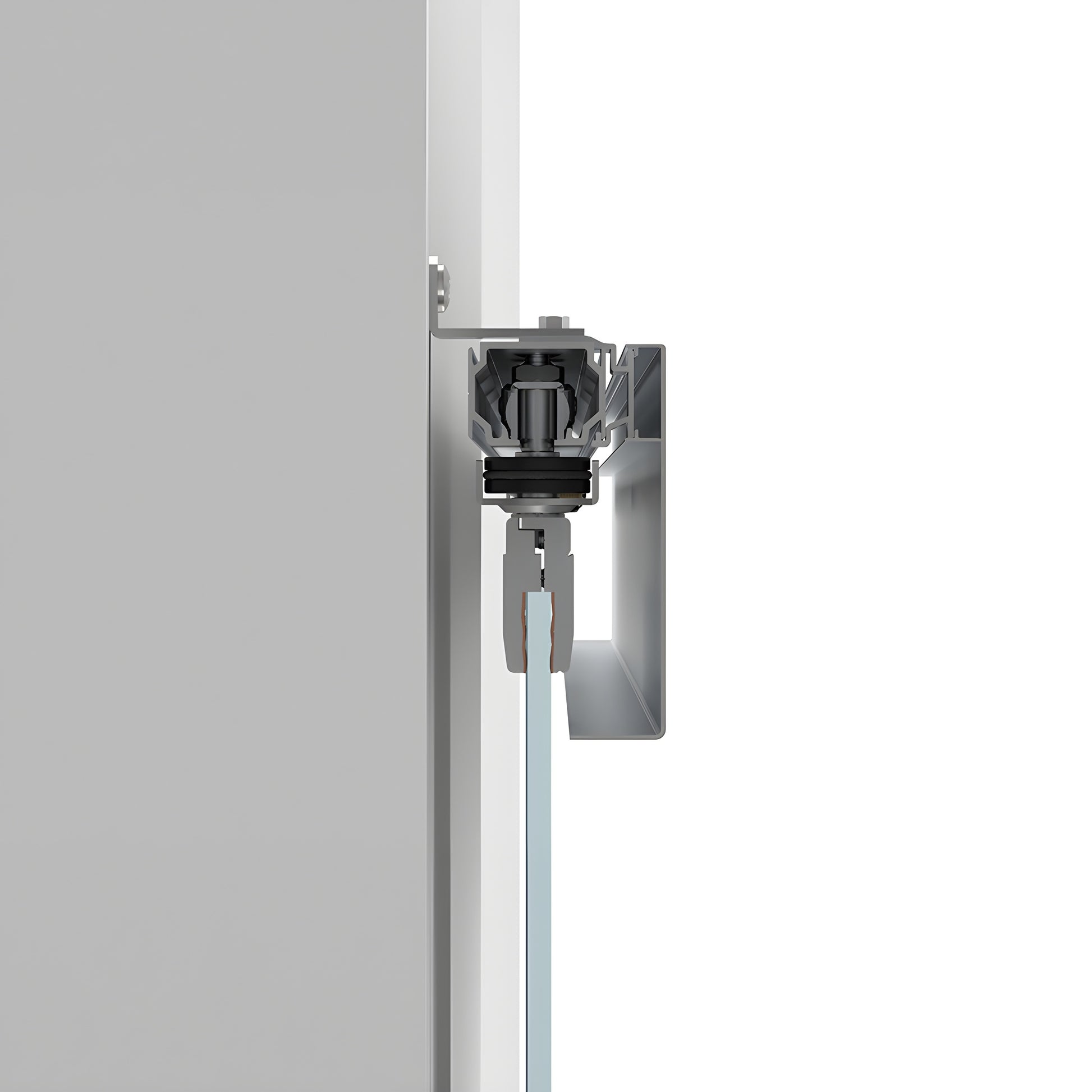

• Top-track design mounts to a structural wall; kit includes all hardware except glass and door pulls

These CRL50 Kits are engineered for synchronized movement of two bi-parting panels with the top track mounted to a structural wall. Operation of a single panel moves the other in smooth, synchronized fashion. Kits include all installation hardware except the glass and door pulls.

NOTE: Use monolithic tempered glass only. Laminated glass should not be used with CRL50/51 Series Kits.

Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Upgrade your commercial or residential glass door project with the CRL50 synchronized bi-parting kit — contact CRL Customer Service to order or request technical details.
