CRL50 Structural Ceiling Mount Kit for Single Glass Sliding Door
CRL50 Structural Ceiling Mount Kit for Single Glass Sliding Door
Regular price
$1,444.18 CAD
Regular price
Sale price
$1,444.18 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL50C
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
5/16 in. (8 mm)
Glazing Type
Tempered Insulated
Maximum Panel Weight
176 lbs. (80 kg)
Mounting Application
Ceiling
Top Hung
Yes
Track Length
118 in. (2997 mm)
Overview

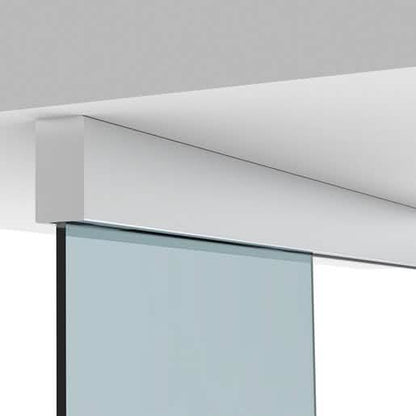

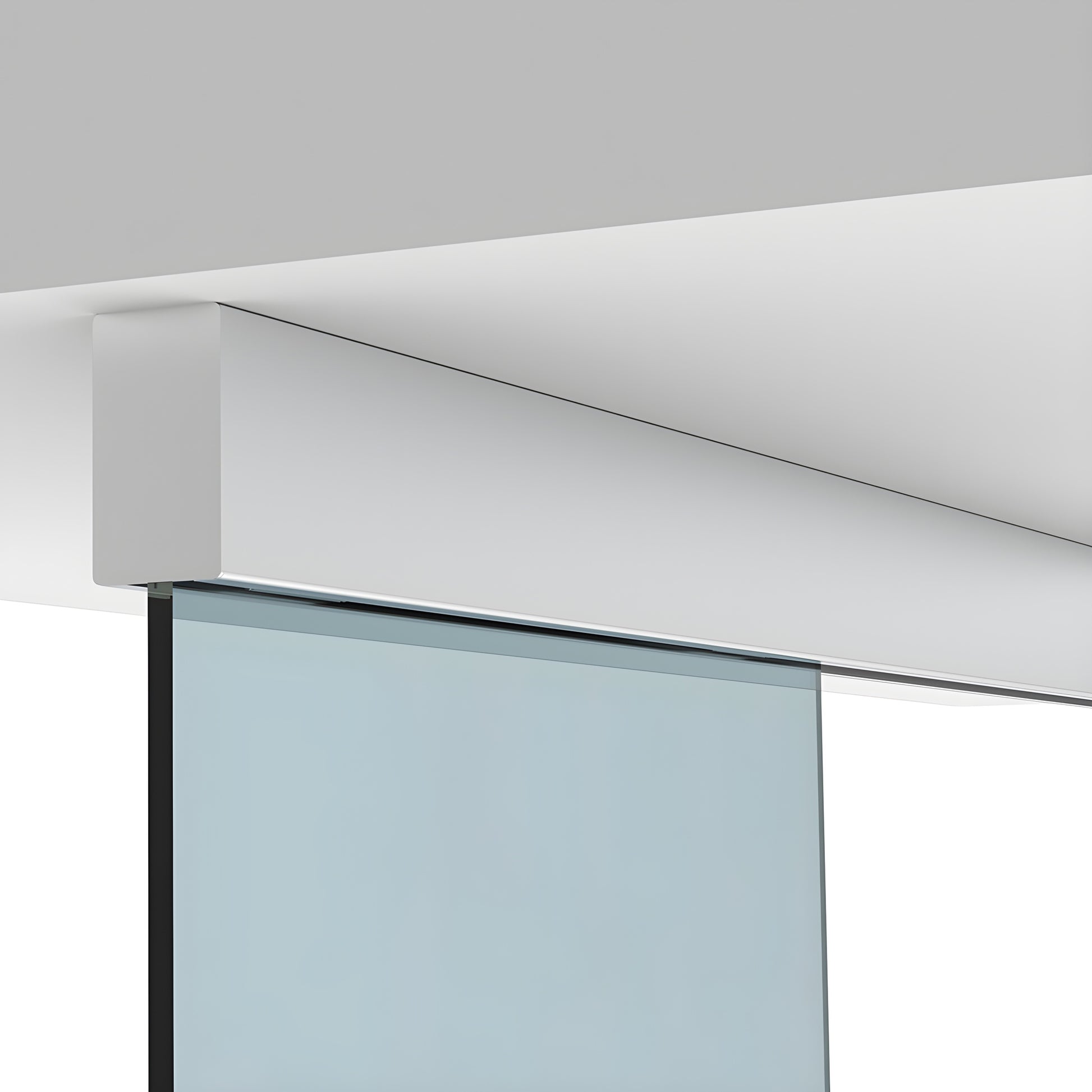

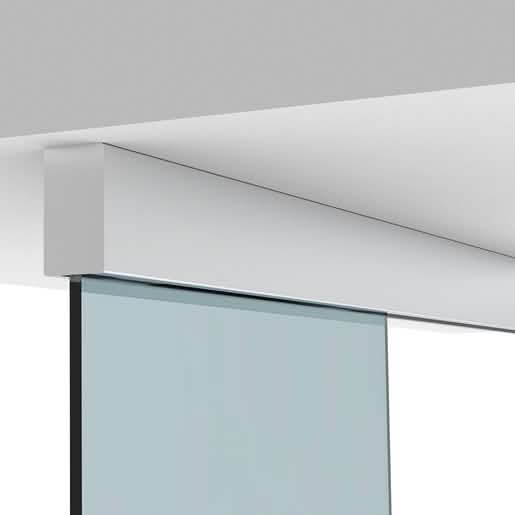

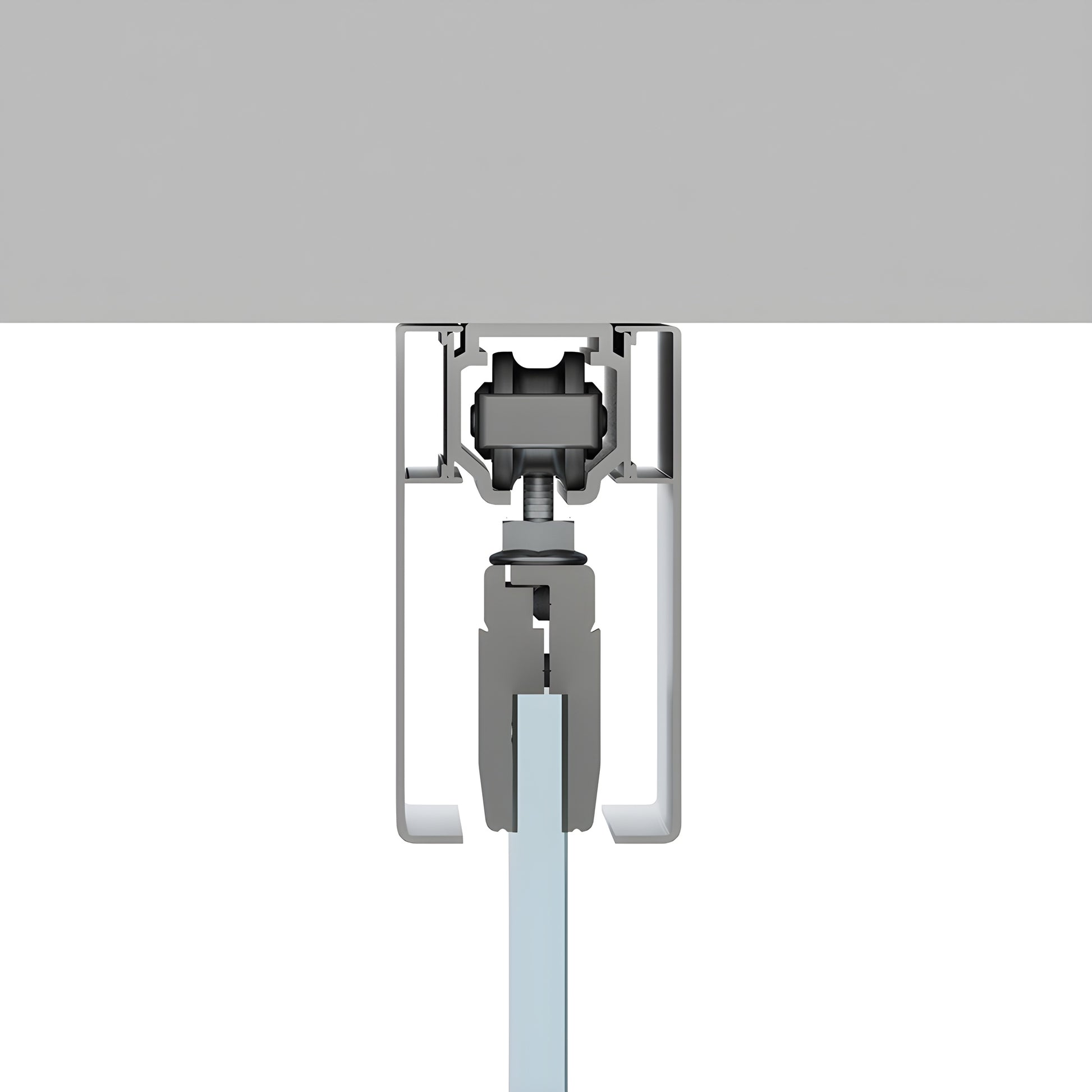

- CRL50C — CRL50 Series structural ceiling mount kit for single glass doors
- Satin anodized finish (optionally available in powder paint or custom cladding/architectural finishes)
- Fits 5/16" or 3/8" (8 mm or 10 mm) tempered glass
- Accommodates doors up to 59" (1.5 m) wide
There are three configurations of CRL50 Series Kits for single glass doors mounting to a structural ceiling. Each kit includes all hardware required for installation (tempered glass not included). These ceiling-mounted glass door hardware kits are designed for commercial and architectural applications where a satin anodized finish or custom architectural finish is desired.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Contact CRL Customer Service for custom finishes, exact shipping weight, or to order SKU CRL50C today.
Specifications
CAD Drawings - dwg
