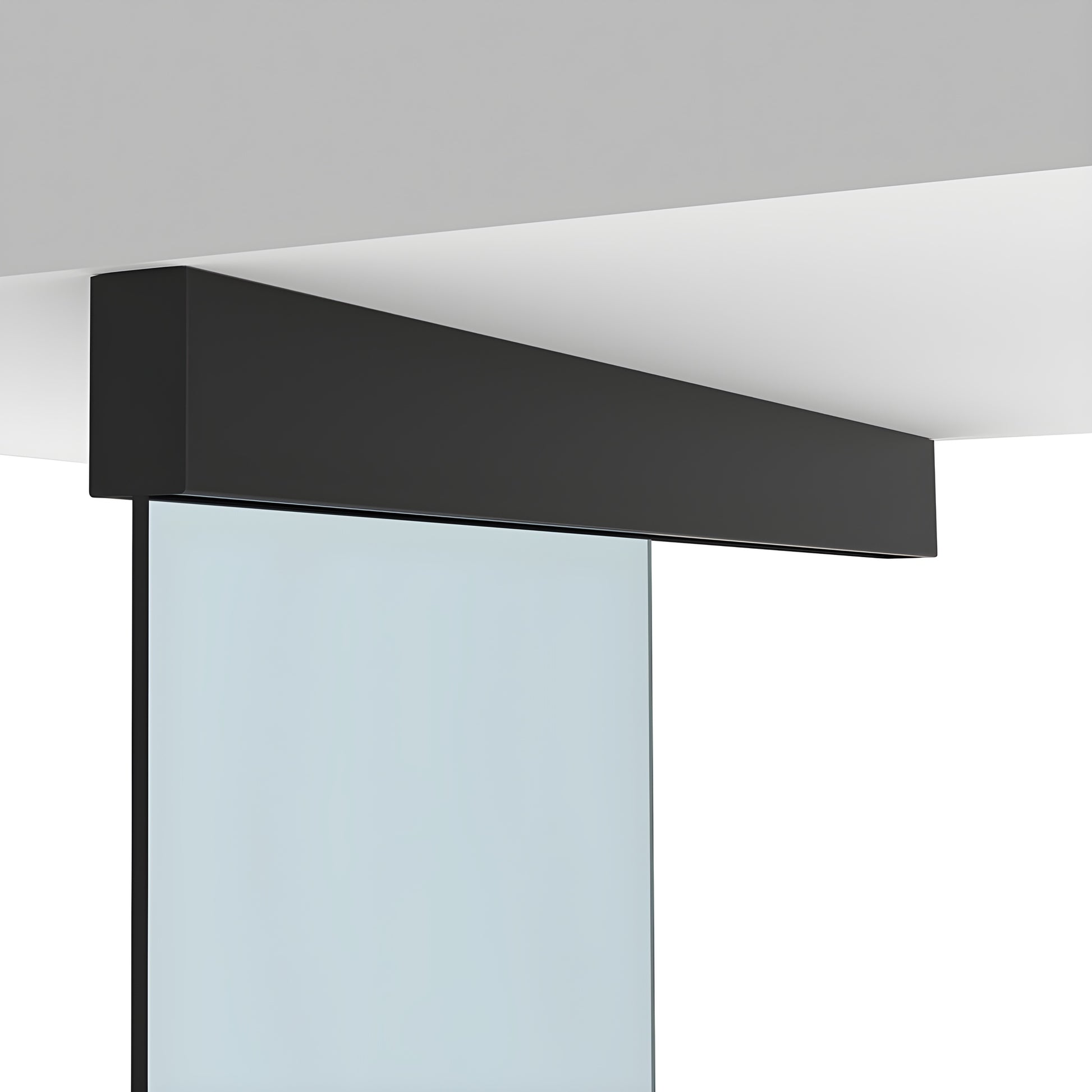

CRL70 Matte Black Single Sliding Door Ceiling-Mount Hardware Kit
CRL70 Matte Black Single Sliding Door Ceiling-Mount Hardware Kit
Regular price
$1,984.17 CAD
Regular price
Sale price
$1,984.17 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL70CMBL
Shipping Weight: 18.327 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 18.327 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Matte Black
Glazing Thickness
3/8 in. (10 mm)
Glazing Type
Tempered Insulated
Maximum Panel Weight
275 lbs. (125 kg)
Mounting Application
Ceiling
Top Hung
Yes
Track Length
118 in. (2997 mm)
Overview
- Fits 5/16" to 1/2" (8 to 12 mm) monolithic tempered glass
- Ceiling-mounted single glass door kit (monolithic tempered glass only)
- Supports doors up to 275 lb (125 kg) and a maximum door width of 59" (1.5 m)
CRL70 Series ceiling-mounted sliding glass door kits (SKU: CRL70CMBL) are available in three configurations for single glass doors that mount to a structural ceiling. Each kit includes all hardware required for installation except the tempered glass. Standard finish is satin anodized; optional powder paint or custom cladding in any architectural finish is available to match project requirements.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Glass is to be wet-glazed similar to other channel installations.
For pricing or to order the CRL70CMBL ceiling-mounted sliding glass door kit, contact CRL Customer Service or your local distributor today.
