CRL70 Satin Anodized Sliding Door Ceiling Mount Kit w/ Fixed Panel
CRL70 Satin Anodized Sliding Door Ceiling Mount Kit w/ Fixed Panel
Regular price
$1,706.36 CAD
Regular price
Sale price
$1,706.36 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL701C
Shipping Weight: 20.922 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 20.922 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
5/16 in. (8 mm)
Glazing Type
Tempered Insulated
Maximum Panel Weight
275 lbs. (124.7 kg)
Mounting Application
Ceiling
Top Hung
Yes
Track Length
118 in. (2997 mm)
Overview
- For 5/16" to 1/2" (8 to 12 mm) tempered glass
- Kits contain all necessary hardware for installation
- Use monolithic tempered glass (no laminated glass)
- Supports doors up to 275 lb (125 kg); maximum door width 59" (1.5 m)

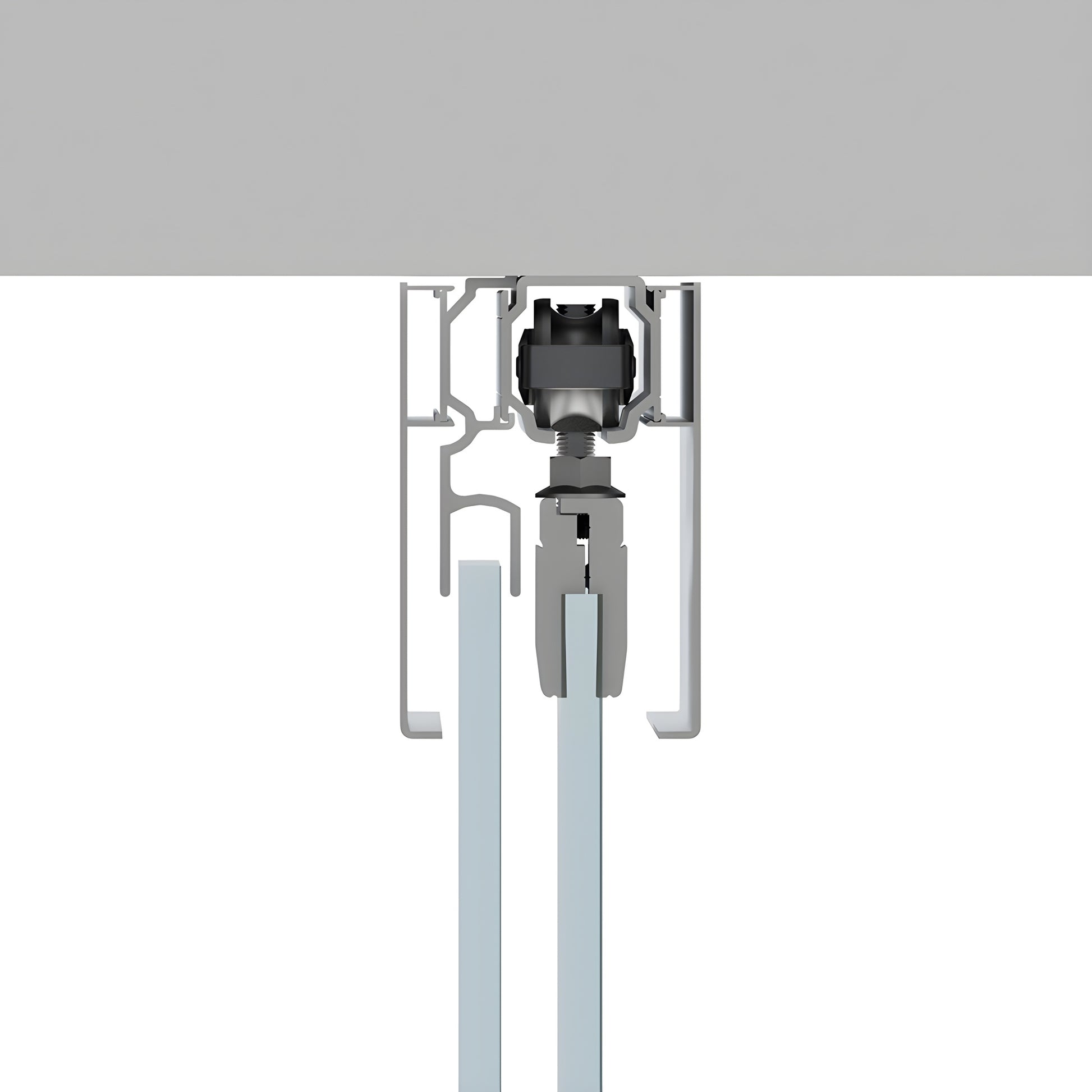

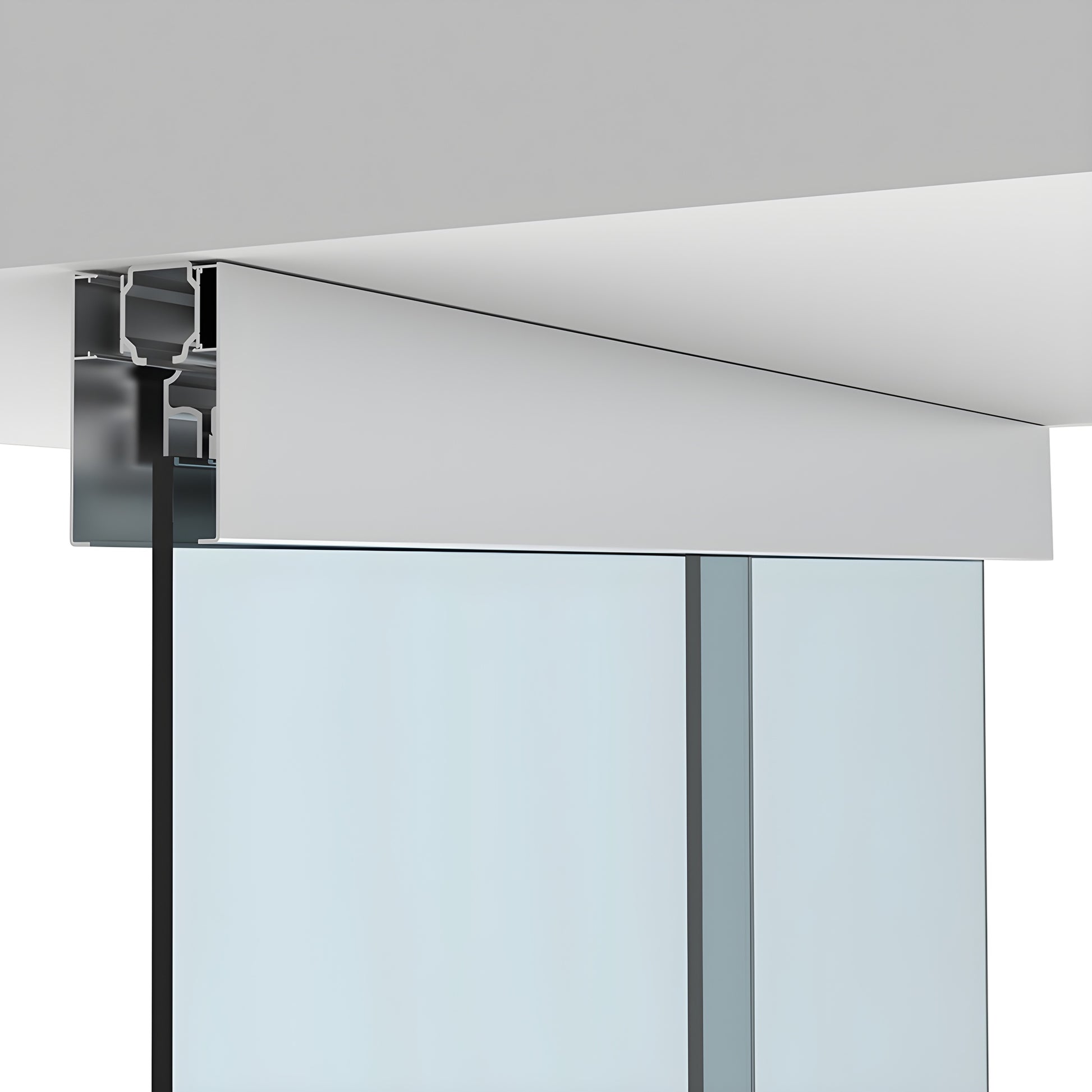

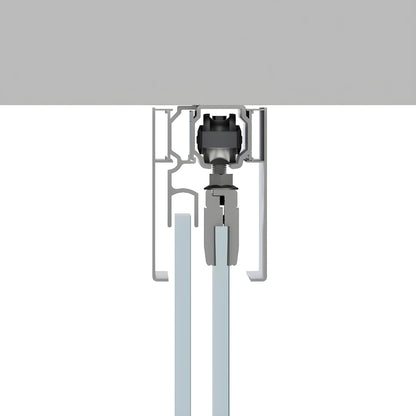

This SKU CRL701C configuration of the CRL70 Series Slider is a top-mounted sliding glass door kit engineered for single-door with fixed-panel applications where the top track attaches to a structural ceiling. The kit includes top track, adapters for a fixed panel, and two track covers to conceal the top track, adapters, and hanger assemblies for an attractive, simple installation. Pulls are ordered separately.
NOTE: Laminated glass should not be used. Kits ship as stock lengths of 118" (3 m) and require common-carrier freight. Multiple kits can be combined for quantity pricing.
Product Warning:
Glass must be wet-glazed similar to other channel installations.
Order the CRL701C top-mounted sliding glass door kit for a durable, high-capacity tempered glass sliding door solution — contact CRL or add to cart to get started.
Specifications
CAD Drawings - dwg
