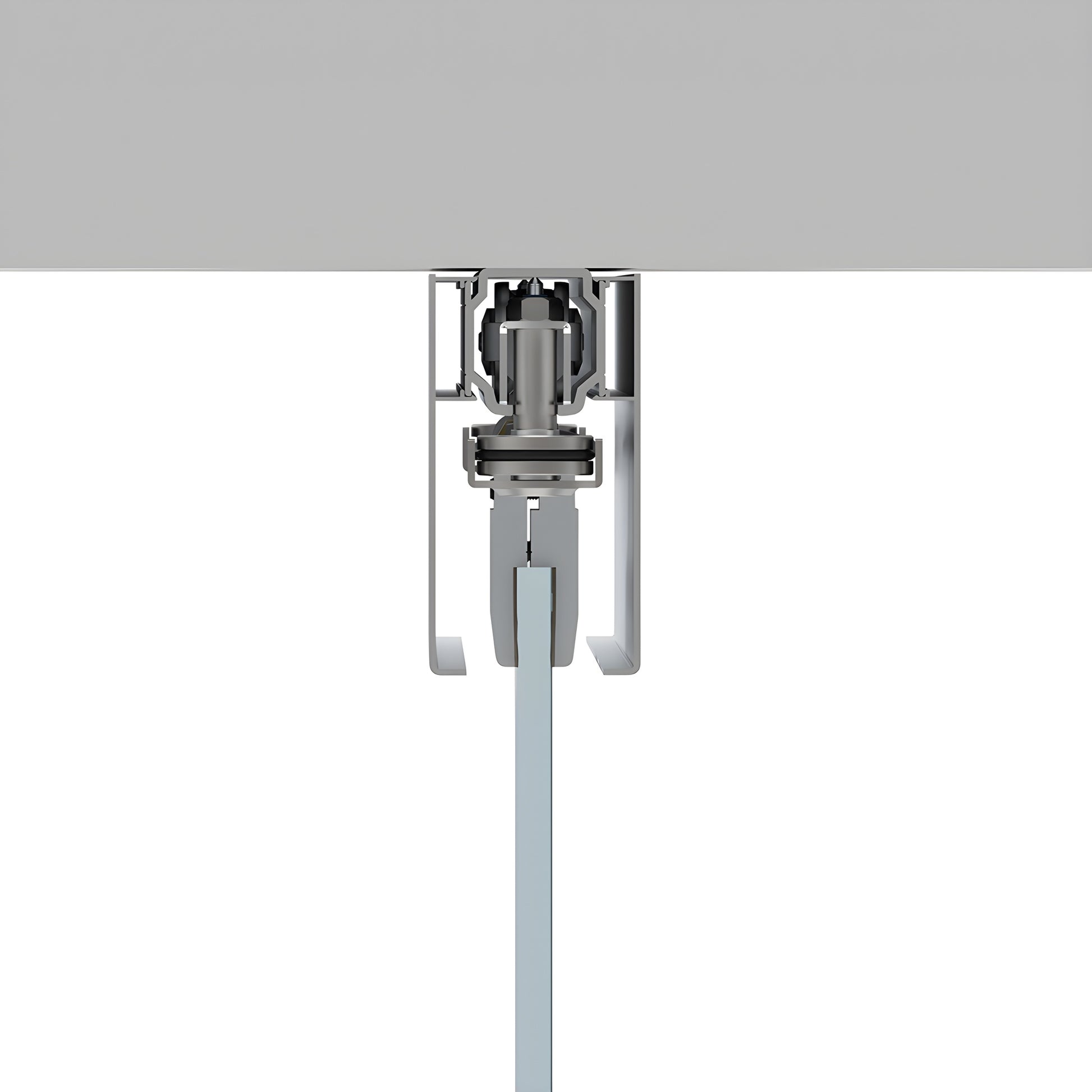

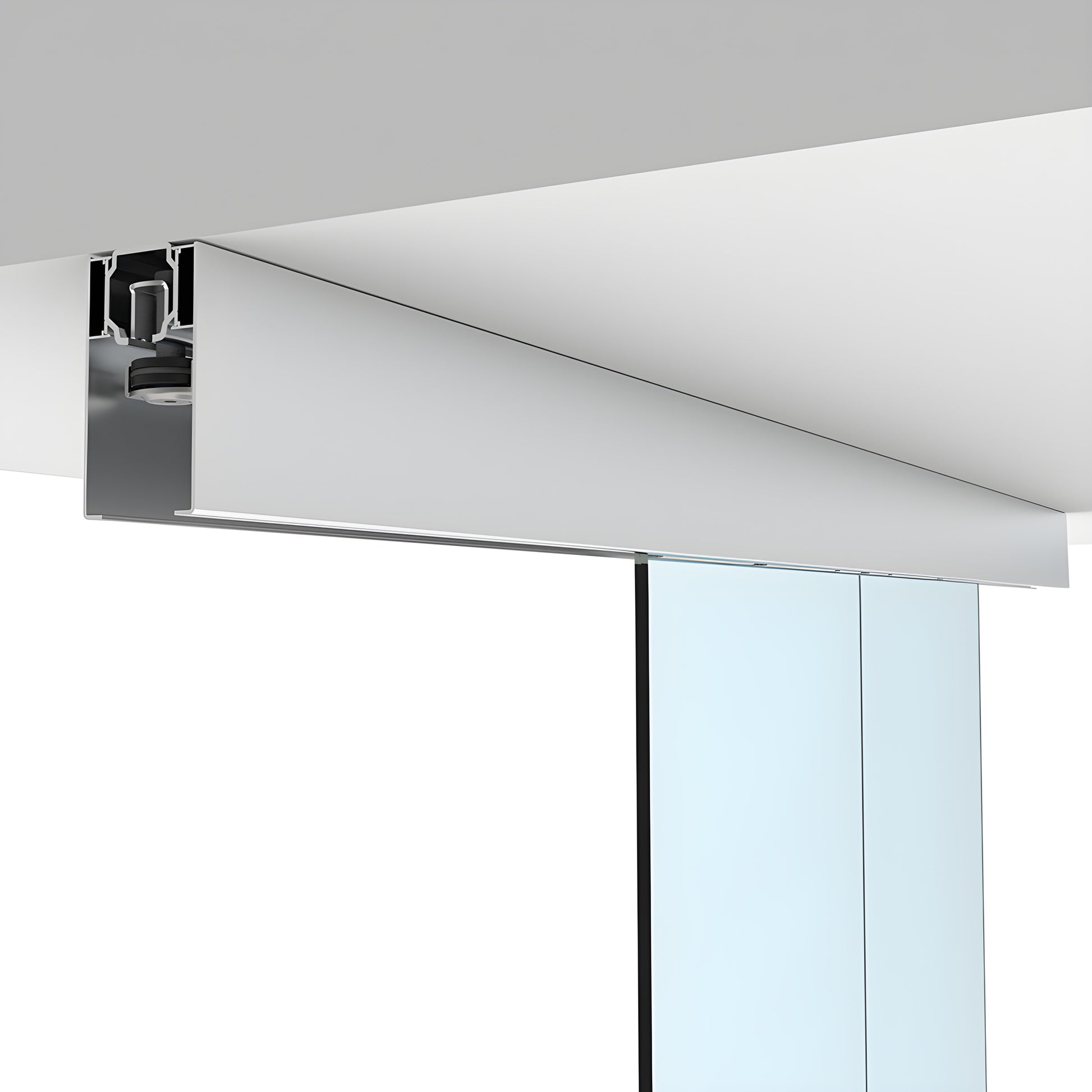

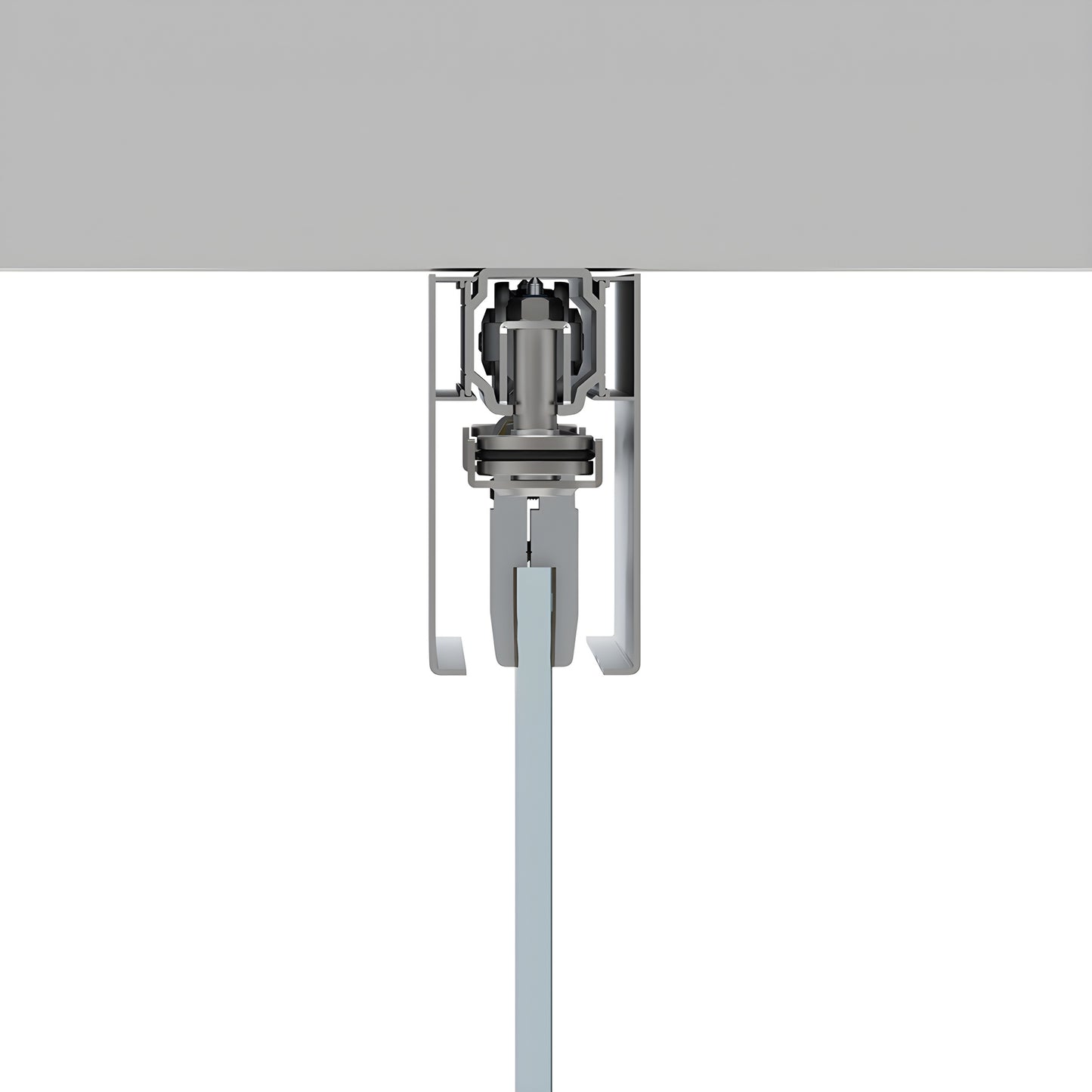

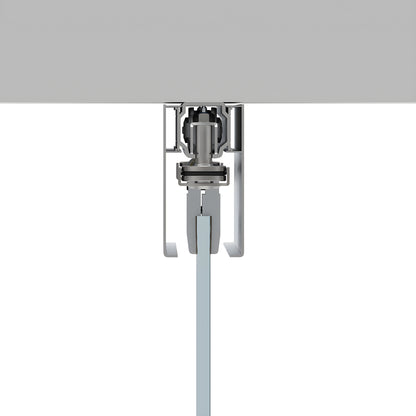

• CRL70CS2 ceiling-mounted satin anodized top-hung bi-parting pocket slider for tempered glass panels.
  • CRL70CS2 ceiling-mounted satin anodized top-hung bi-parting pocket slider for tempered glass panels.
1 2

CRL

CRL70 Synchronized Ceiling-Mount Bi-Parting Pocket Sliding Door Kit

CRL70 Synchronized Ceiling-Mount Bi-Parting Pocket Sliding Door Kit

$2,863.20 CAD
$2,863.20 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CRL70CS2
Shipping Weight: 125.984 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Anodized
Glazing Thickness
5/16 in. (8 mm)
Glazing Type
Tempered Insulated
Maximum Panel Weight
100 lbs. (45.4 kg)
Mounting Application
Ceiling
Top Hung
Yes
Track Length
118 in. (2997 mm)

Overview

  • Ceiling Mount Bi-Parting Pocket Slider Kit for Tempered Glass Doors (SKU: CRL70CS2)
  • Wall and ceiling mount kits available for 5/16" to 1/2" (8 to 12 mm) tempered glass
  • Satin anodized finish
  • Accommodates doors up to 275 pounds (125 kg); maximum door width 29-1/2" (750 mm)

This configuration of the CRL70 Series Slider provides synchronized bi-parting panel movement with the top track mounted to a structural ceiling. Kits include stock track lengths of 118" (3 m) and ship via common carrier. Multiple kits may be combined for quantity pricing.


NOTE: Laminated glass should not be used with the CRL70 Series kits.

Product Warning:

STRUCTURAL DISCLAIMER — Customers must consult a structural engineer to confirm product suitability for the intended use and site conditions. Installers must be qualified and familiar with local, state, and federal regulations, safety requirements, and appropriate fixing materials and procedures.

Glass should be wet-glazed similar to other channel installations.

Most shipping weights are approximate and have not been verified. If exact shipping weight or shipping cost information is required to complete your order, please contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors may vary depending on monitor settings.


For ordering, pricing, or technical support on the CRL70CS2 ceiling mount bi-parting pocket slider kit, contact CRL Customer Service or request a quote today.
