Custom Series 900 Custom KYNAR® Paint Hinged Left Swing Out Terrace Single Door with 3-3/4" Bottom Rail and Standard Threshold

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUTD91271L0
Pack Size1
Finish/Color:Custom Kynar

Description

Product Details

  • High Performance AW-PG 80-ATD Rated Door Accepts 1" (25 mm) Insulating Glass
  • Will Withstand Heavy Traffic and the Worst of Weather Conditions
  • Out-Swing Doors are Now Available with Matching Transoms, Sidelites, and Fixed Lites
  • Thermally Broken In-Swing or Out-Swing Singles or Pairs

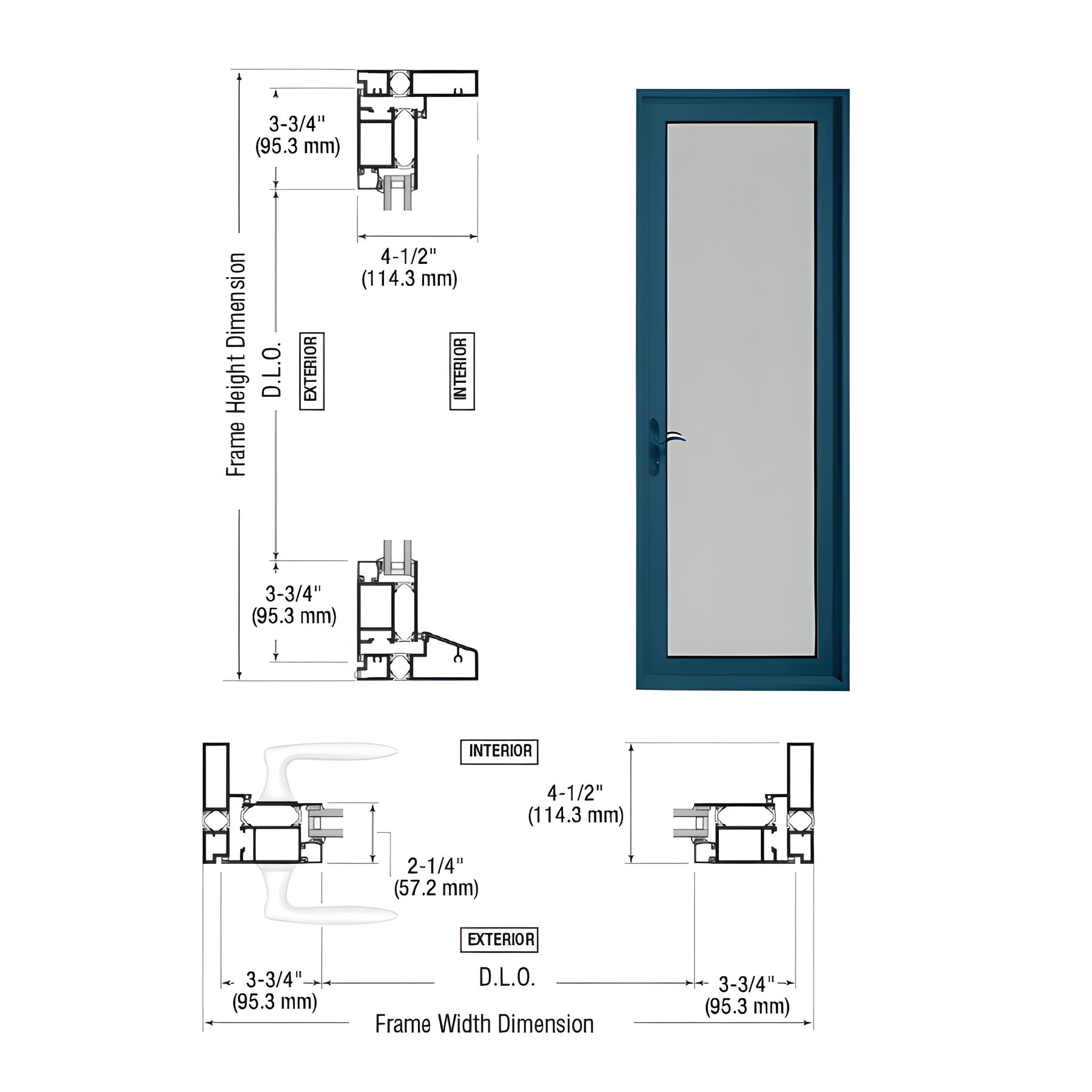

The Terrace Door is a custom thermally broken entrance built with a 1" x 4-1/2" (25 x 114 mm) frame, a medium stile 2-1/4" (57 mm) thick door with 3-3/4" (95 mm) stiles, 1-1/2 pair of offset pivot hinges, a 3-3/4" (95 mm) top rail, and a 3-3/4" (95 mm) bottom rail. Standard features include a five-point locking device and a standard matching finish aluminum threshold.

Specifications

Technical Resources

Brochures & Literature

Installation Instructions

BIM Objects - rvt

BIM Objects - pdf

Quote Request Forms

Specifications

CAD Drawings - pdf

CAD Drawings - dwg

Engineering & Test Reports

Glazing Charts

Numbering Keys
