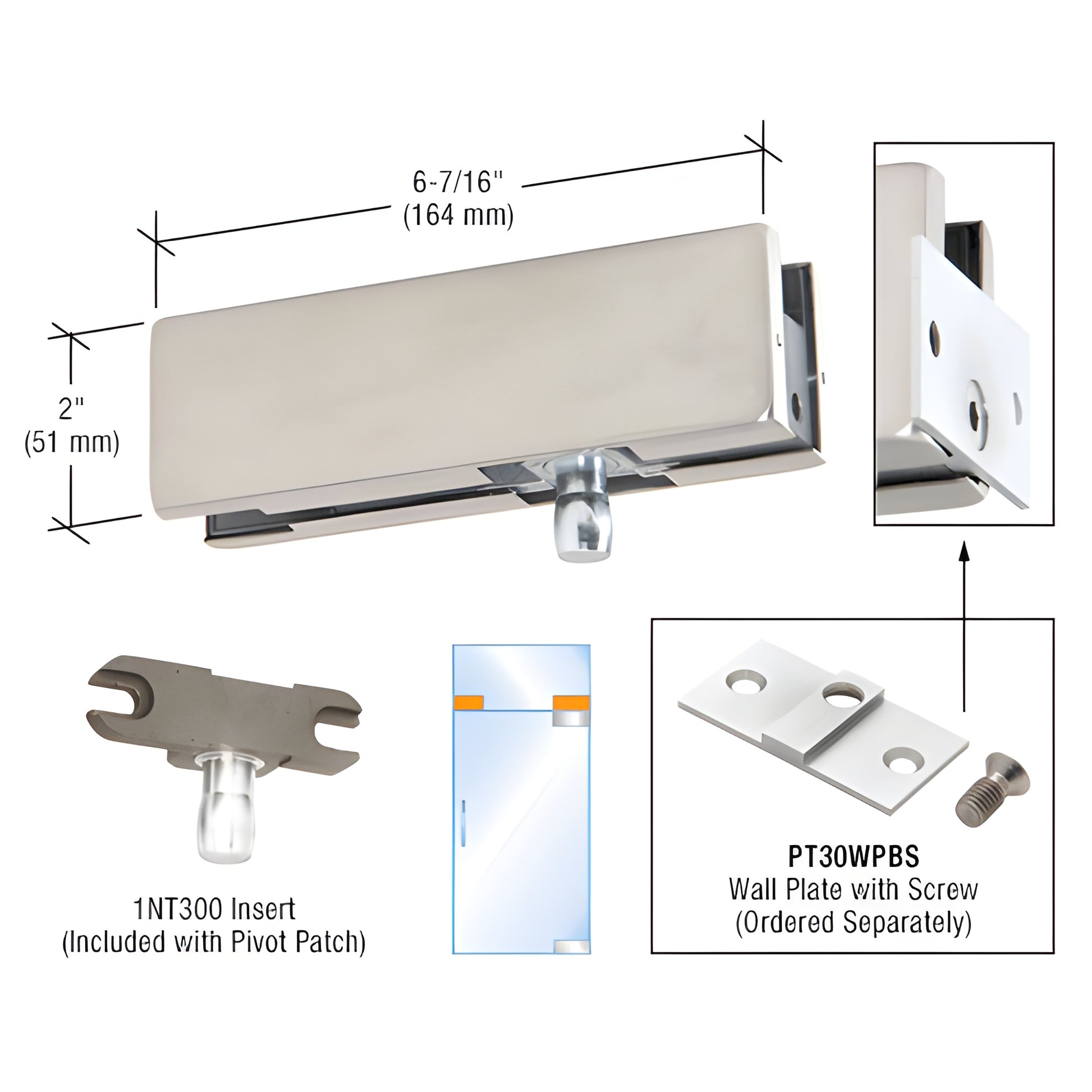

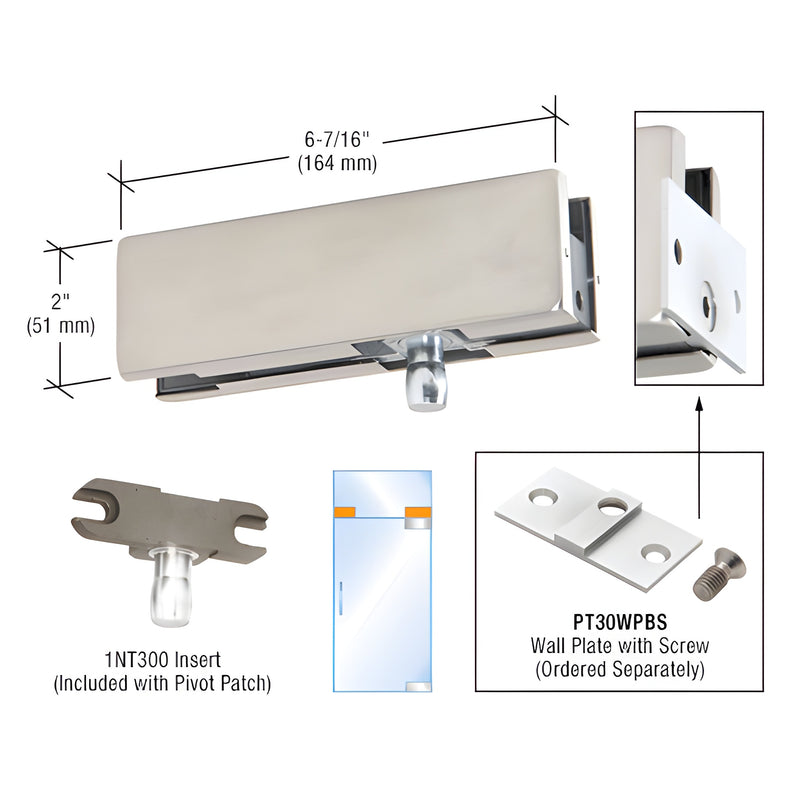

DORMAKABA® Brushed Stainless Wall-Mount Transom Patch Pivot Fitting
DORMAKABA® Brushed Stainless Wall-Mount Transom Patch Pivot Fitting
Regular price
$336.57 CAD
Regular price
Sale price
$336.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PT3034P1VBS
Shipping Weight: 1.57 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.57 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Insert Type
1NT300
Mounting Type
Wall Mount
Series
DORMAKABA®
Width
1-3/16 in. (30 mm)
With Insert
Yes
Overview
- For 3/4" (19 mm) Glass
- Works with 2-3/4" (70 mm) Pivot Setback Door Patch Fitting
- Use Monolithic Tempered Glass
DORMAKABA® Brushed Stainless Wall Mounted Transom Patch Fitting — wall-mounted transom patch fitting designed for pivot doors and compatible with a 2-3/4" (70 mm) pivot setback door patch fitting. Includes template and instructions for glass fabrication and installation.
NOTE: Glass fabrication is required. Use monolithic tempered glass and follow the provided template for safe, code-compliant installation.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the brushed stainless finish. See the Stainless Steel Disclaimer in Technical References for care and maintenance guidance.
SKU: PT3034P1VBS — Brushed stainless wall-mounted transom patch fitting for 3/4" (19 mm) monolithic tempered glass pivot doors.
Highlights: durable brushed stainless finish, pivot-compatible transom patch fitting, includes template and instructions for glass fabrication — ideal for commercial pivot door transom installations.
Order PT3034P1VBS today or contact CRL for fabrication and installation support.
