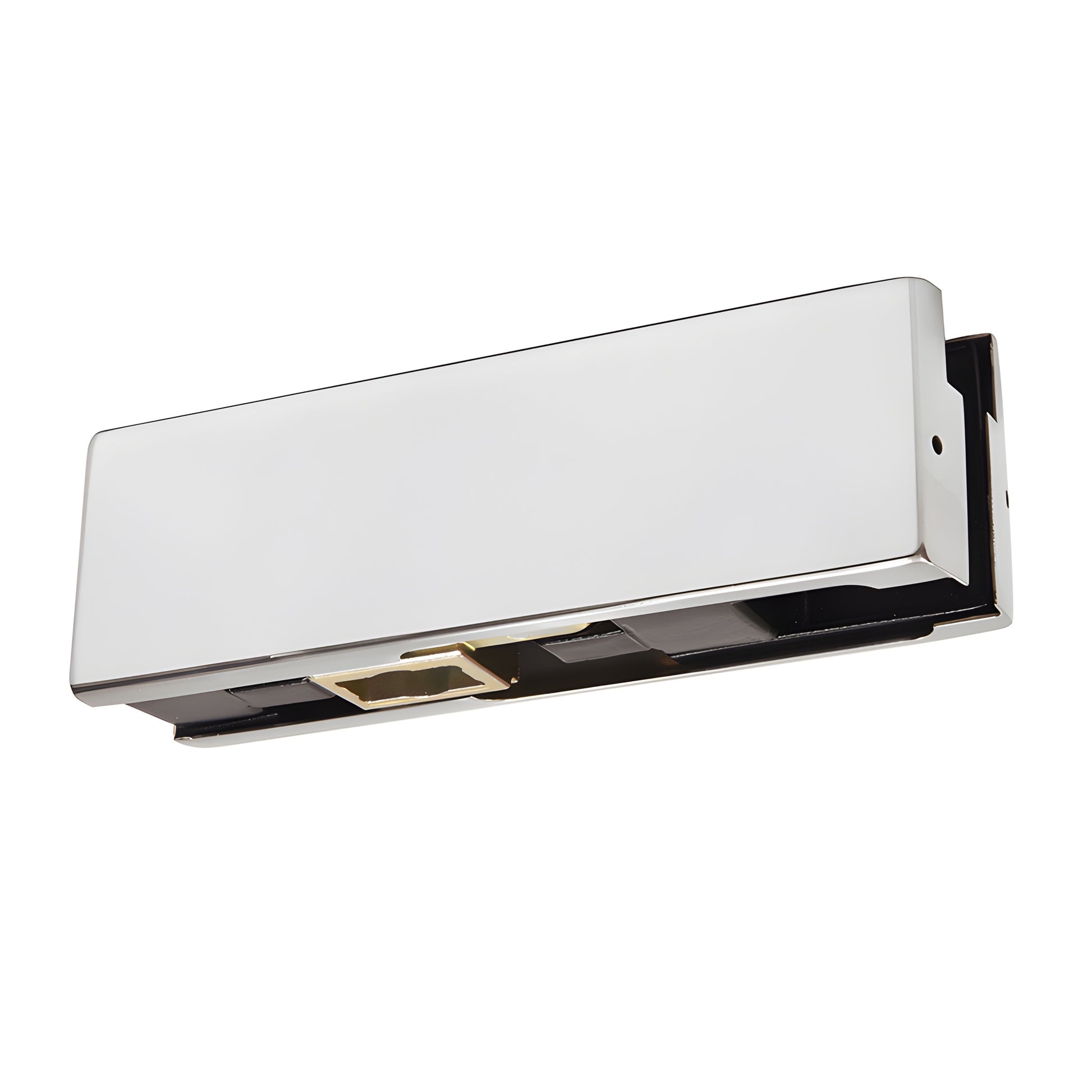

DORMAKABA® Polished Stainless Bottom Door Patch Fitting with Bottom Insert For 3/4" Glass

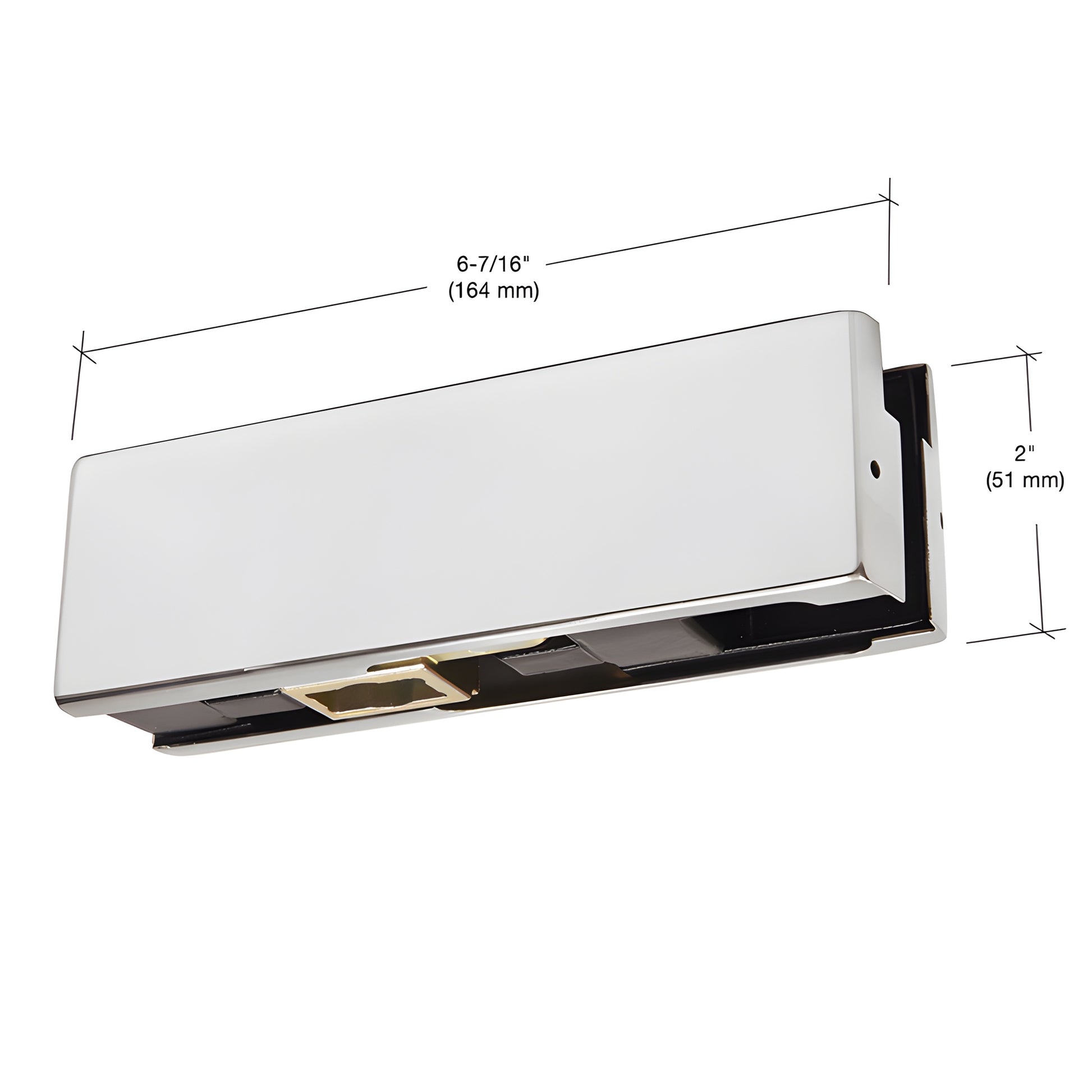

• 2-3/4" (70 mm) Pivot Setback
• For 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass

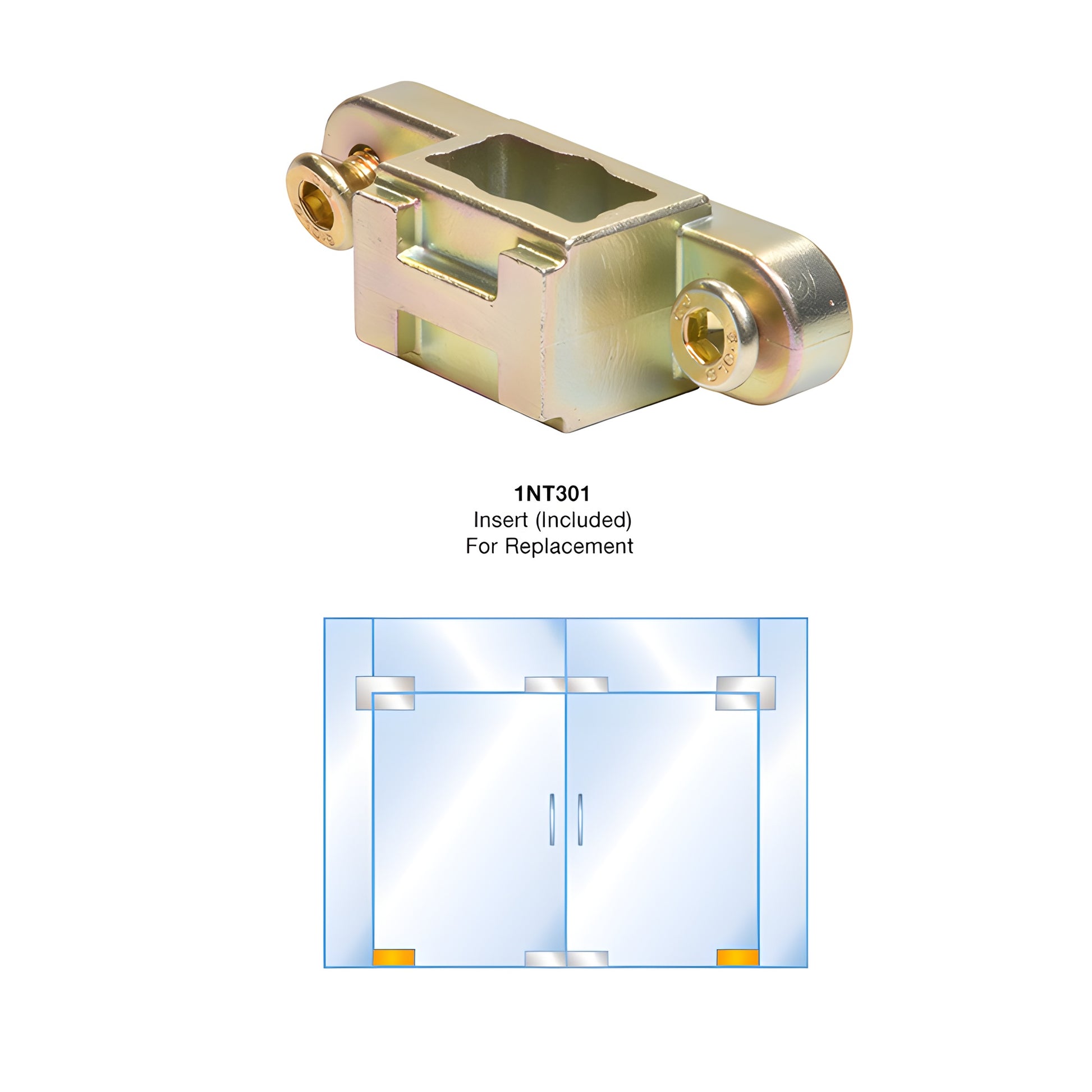

DORMAKABA® Bottom Patch Fittings

are used with our bottom door pivots or floor closers. It fits in the lower corner of the glass panel, and requires a hole and cut-out in the glass. Available in brushed or polished stainless steel finishes.

The following guidelines are to be used when making a door using this hardware:

Maximum Height: 102" (2.59 m)

Maximum Weight: 194 Lbs. (88 kg)

Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

One 3/4" (19 mm) Diameter

Hole and Corner Notch

Template and Instructions

These fittings are not for use with laminated glass.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
