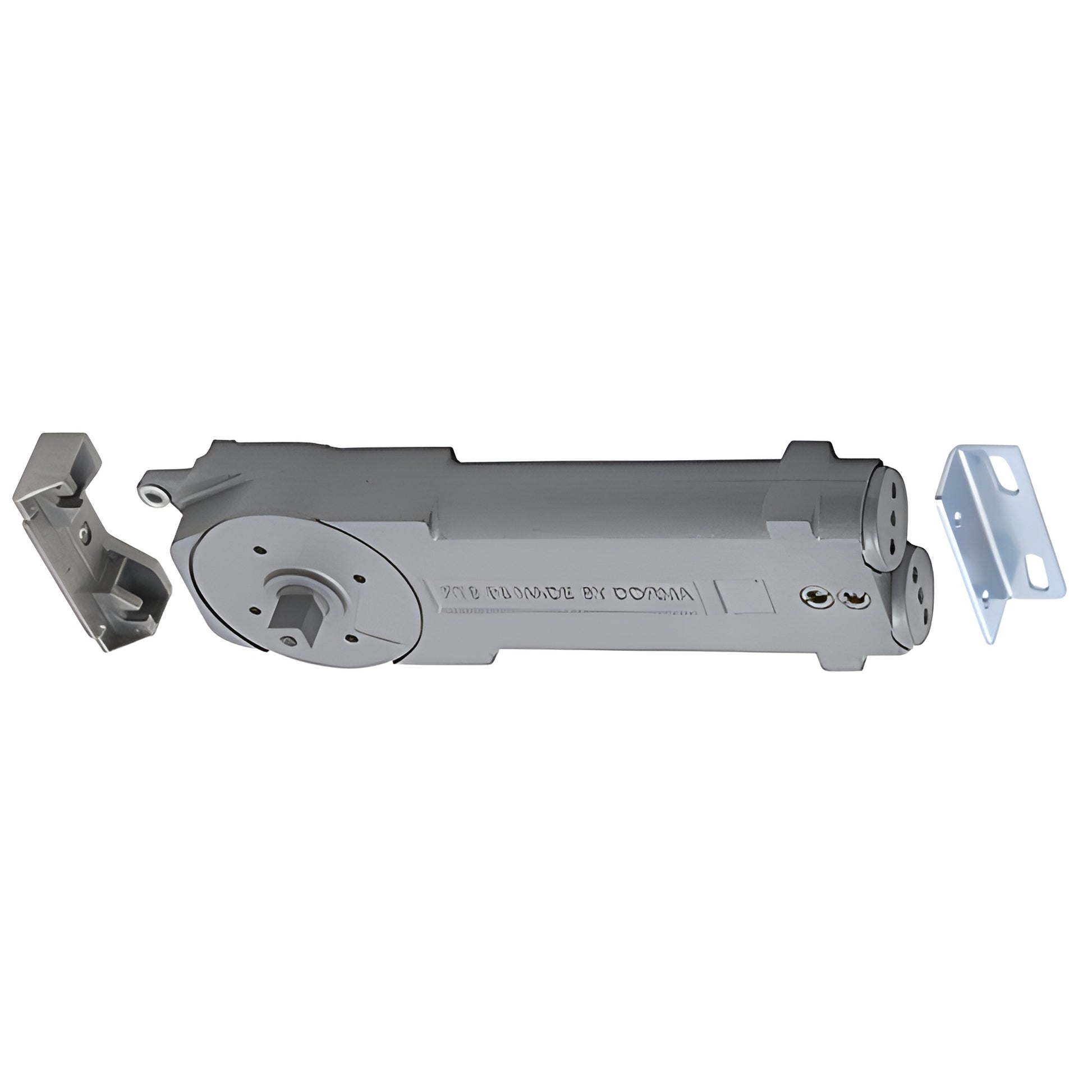

Dormakaba Concealed Overhead Door Closer 105° Hold-Open ADA 8.5 lb
Dormakaba Concealed Overhead Door Closer 105° Hold-Open ADA 8.5 lb
Regular price
$533.97 CAD
Regular price
Sale price
$533.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RTS88105H0BFE
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-1/2
Body Length
12-1/2
Body Width
3-1/2
Closer Type
Overhead Concealed
Door Height
96
Door Opening
105
Handing
Double Acting
Hold Open
Yes
Maximum Door Weight
250
Maximum Door Width - Exterior
36 Inches
Maximum Door Width - Interior
36 Inches
Recommended Door Type
Aluminum,Hollow Metal
Spindle
1/2
Spring Size
8.5
UL Listed
Yes
Overview
- Standard mounting clips included
- Recommended for doors up to 36" wide x 96" high
- Maximum door weight: 250 lbs.
- ADA Barrier-Free: 8.5 lb for exterior doors
The Dormakaba® Overhead Concealed Closer 105 Degree Hold Open (SKU: RTS88105H0BFE) is an overhead concealed closer engineered for ADA exterior doors that require a 105° hold-open and low opening force. This concealed door closer features dual-action control plus separate non-critical valves for independent adjustment of closing and latching speeds—ideal for commercial and institutional exterior doors where a low-profile, ADA-compliant overhead concealed closer is required. Each closer body ships with mounting clips, installation templates, and instructions.
Product Warning:
Although the Dormakaba RTS BFI/BFE Series closers meet ADA-specified opening force limits, site conditions and door size may prevent adequate spring power to fully control or close the door. Verify compatibility with your door and site before installation.
Order the Dormakaba RTS88105H0BFE overhead concealed closer for an ADA-compliant, low-profile 105° hold-open solution—add to cart or contact us for technical assistance.
