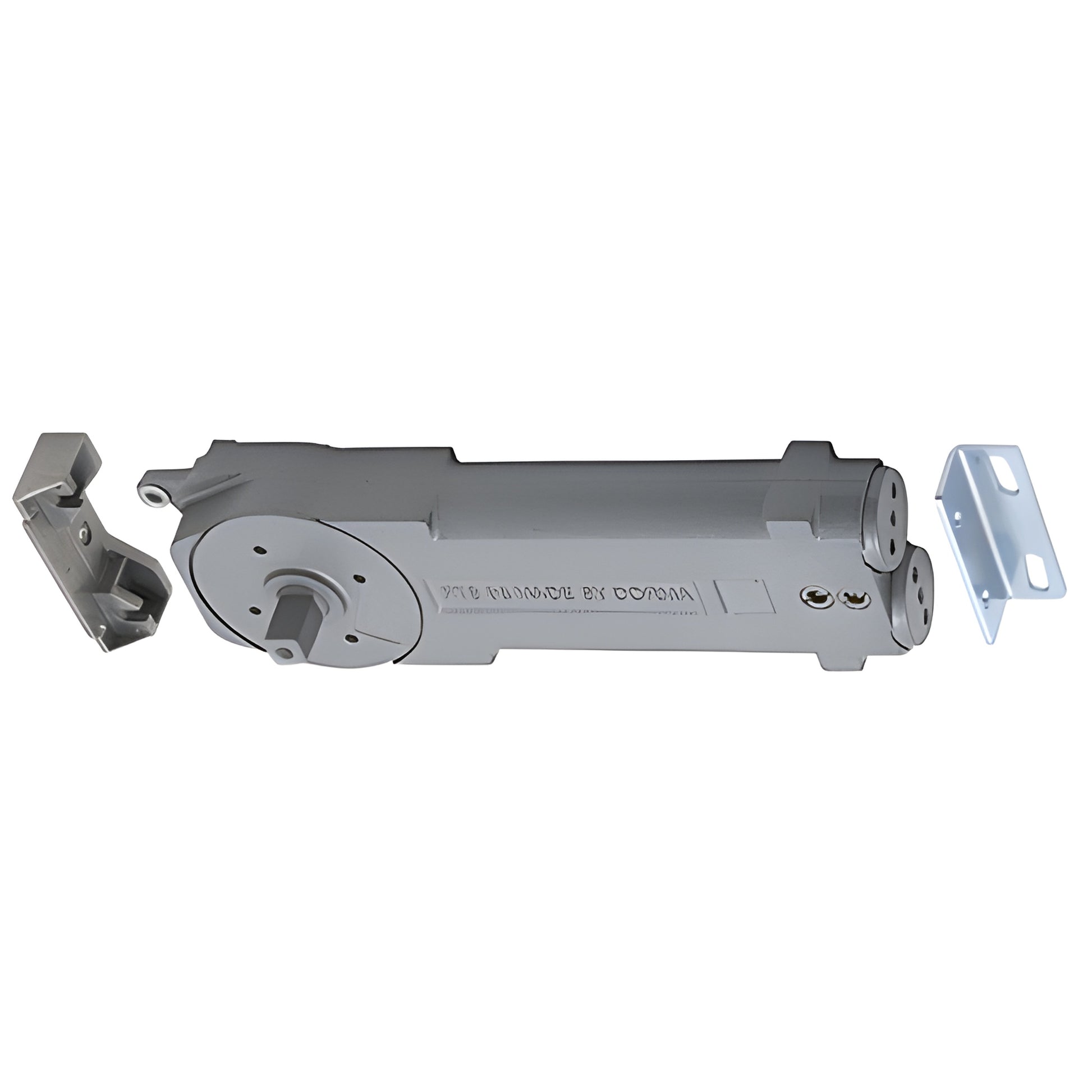

Dormakaba Overhead Concealed Door Closer 105° Hold-Open, 5 lb ADA
Dormakaba Overhead Concealed Door Closer 105° Hold-Open, 5 lb ADA
Regular price
$533.97 CAD
Regular price
Sale price
$533.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RTS88105XH0BF1
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-1/2
Body Length
11-1/2
Body Width
3-9/16
Brand
Dormakaba®
Closer Type
Overhead Concealed
Door Height
96
Door Opening
105
Handing
Double Acting
Hold Open
Yes
Maximum Door Weight
250
Maximum Door Width - Exterior
36 Inches
Maximum Door Width - Interior
36 Inches
Recommended Door Type
Aluminum, Hollow Metal
Spindle
3/4
UL Listed
Yes
Overview
- Extended spindle for use with patch fittings
- Standard mounting clips included
- Recommended for doors up to 36" (914 mm) wide x 96" (2438 mm) high
- Maximum door weight: 250 lbs.
- 5 lb. ADA barrier‑free rating for interior doors
The Dormakaba® Overhead Concealed Closer 105 Degree Hold Open (SKU: RTS88105XH0BF1) is engineered for ADA-compliant, low-force interior applications. Key features include an extended spindle for patch fittings, dual-action and non‑critical valves that allow independent adjustment of closing and latching speeds, and a factory package with mounting clips, templates, and installation instructions—ideal for retrofit and new‑build interior doors up to 36" x 96".
Product Warning:
Although Dorma® RTS BFI/BFE Series closers comply with ADA specified opening forces, they may not provide adequate spring power to control and close the door under all site conditions or with larger/heavier doors. Verify suitability for your door and mount prior to installation.
Buy or request a quote for the Dormakaba RTS88105XH0BF1 overhead concealed closer today.
