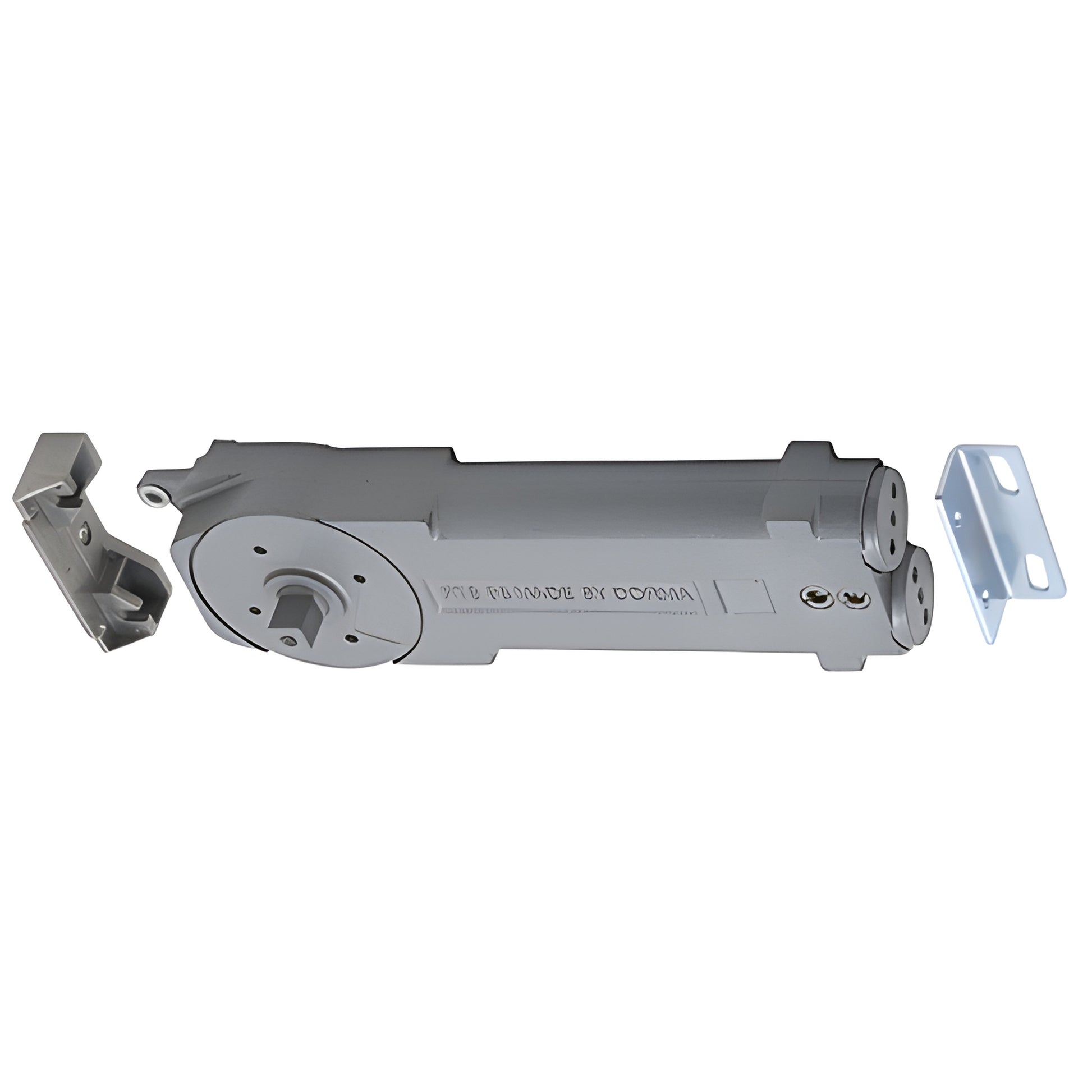

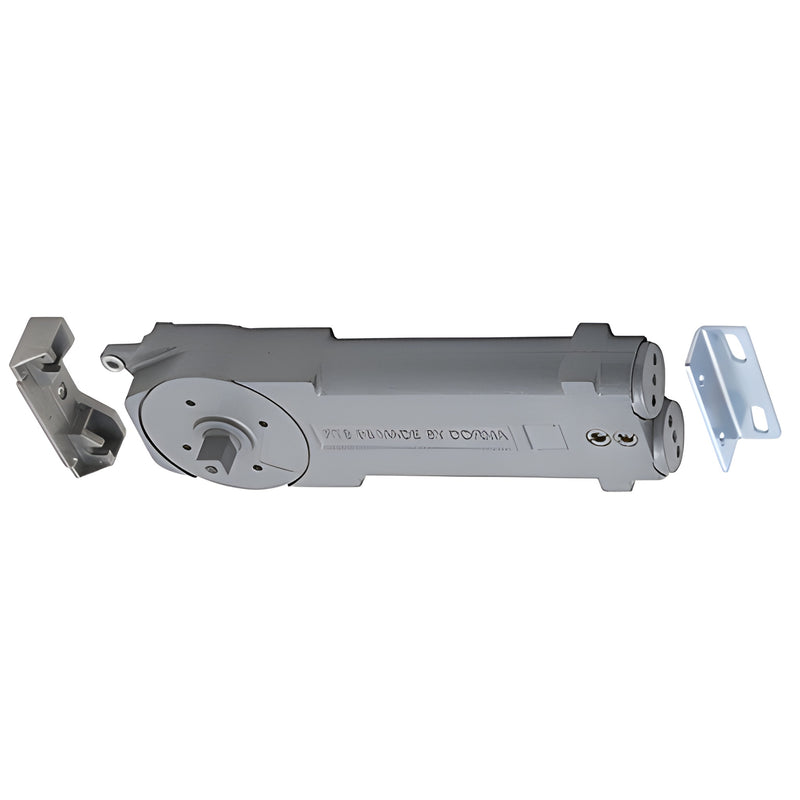

Dormakaba® Overhead Concealed Door Closer Size 3 90° Hold-Open
Dormakaba® Overhead Concealed Door Closer Size 3 90° Hold-Open
Regular price
$533.97 CAD
Regular price
Sale price
$533.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RTS8890H03
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-1/2
Body Length
11-1/2
Body Width
3-9/16
Brand
Dormakaba®
Closer Type
Overhead Concealed
Door Height
96
Door Opening
90
Handing
Double Acting
Hold Open
Yes
Maximum Door Weight
250
Recommended Door Type
Aluminum, Hollow Metal
Spindle
3/4
UL Listed
Yes
Overview
- Standard mounting clips, templates, and installation instructions included
- Recommended for doors 30" to 42" (762–1067 mm) wide × 96" (2438 mm) high
- Maximum door weight: 250 lbs
- Size 3 — Medium Duty
The Dormakaba® Overhead Concealed Closer 90 Degree Hold Open (SKU: RTS8890H03) is a concealed overhead door closer designed for commercial doors requiring a discreet, durable closer with a 90° hold-open feature. Dual-action and independent non-critical valves allow separate adjustment of closing and latching speeds for precise door control. Ideal for applications needing a low-profile, heavy-duty concealed closer with straightforward on-site adjustments.
Shop now to add a concealed 90° hold-open closer with independent speed control to your project.
