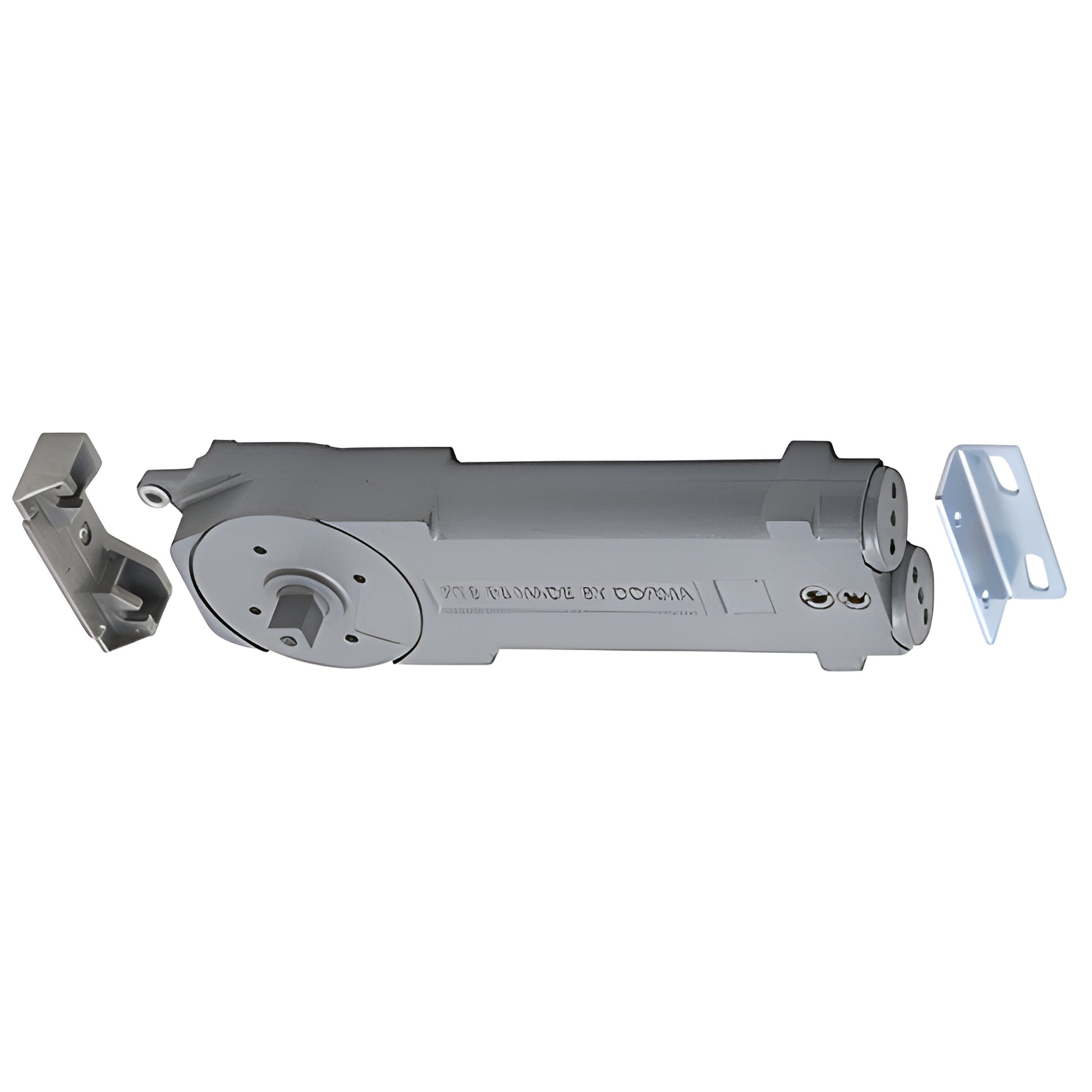

Dormakaba® Overhead Concealed Door Closer 90° No Hold Open Size 3
Dormakaba® Overhead Concealed Door Closer 90° No Hold Open Size 3
Regular price
$533.97 CAD
Regular price
Sale price
$533.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RTS8890NH03
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-1/2
Body Length
11-1/2
Body Width
3-9/16
Closer Type
Overhead Concealed
Door Height
96
Door Opening
90
Handing
Double Acting
Maximum Door Weight
250
No Hold Open
Yes
Recommended Door Type
Aluminum,Hollow Metal
Spindle
1/2
UL Listed
Yes
Overview
- Standard mounting clips included
- Recommended for doors 30" to 42" wide x 96" high
- Maximum door weight: 250 lbs
- Size 3 — Medium Duty closer
Dormakaba® Overhead Concealed Closer 90 Degree No Hold Open (SKU: RTS8890NH03) features dual-action operation and non-critical valves that let you adjust closing and latching speeds independently for precise control. Each concealed closer ships with mounting clips, templates, and installation instructions for faster, accurate fitting—ideal for commercial and high-traffic interior doors.
For a reliable medium-duty overhead concealed closer for 30"–42" x 96" doors, choose the Dormakaba RTS8890NH03—order now or contact us for technical support and shipping details.
