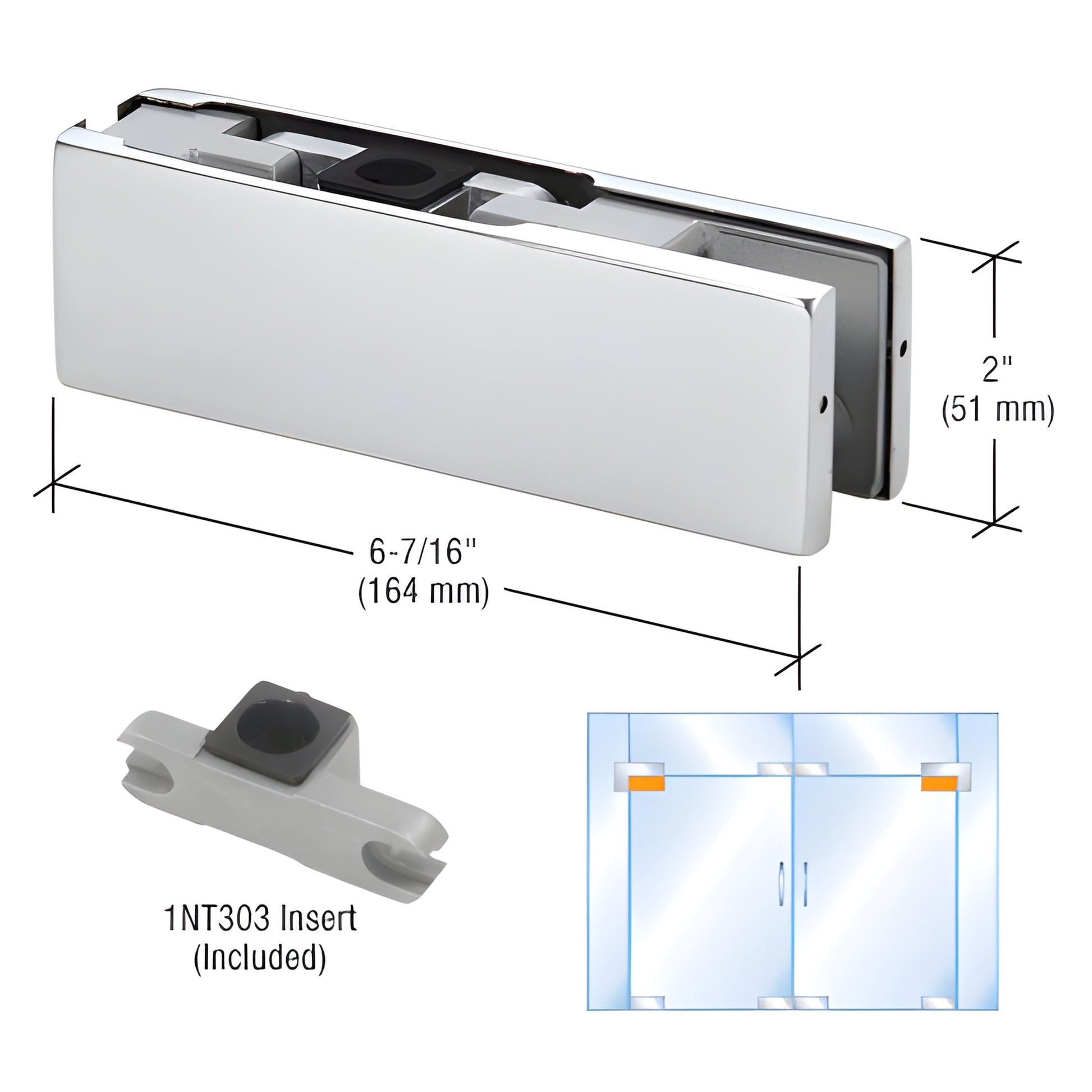

DORMAKABA Polished Stainless Top Patch Pivot for 3/4" Glass Door
DORMAKABA Polished Stainless Top Patch Pivot for 3/4" Glass Door
Regular price
$281.16 CAD
Regular price
Sale price
$281.16 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PT2034PS
Shipping Weight: 1.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Insert Type
1NT303
Pivot Setback
2-3/4
Series
DORMAKABA®
Type
Top
With Insert
Yes
Overview
- For 3/4" (19 mm) glass
- Use monolithic tempered glass
- 304 alloy stainless steel covers
- 2-3/4" (70 mm) pivot setback
DORMAKABA® Top Patch Fittings (SKU: PT2034PS) are premium glass door top-patch fittings designed for frameless swing gates and pivot doors. Installs in the upper corner of 3/4" tempered glass panels and requires one 3/4" (19 mm) hole plus a corner notch. Available in brushed and polished 304 stainless steel finishes for corrosion resistance and a clean architectural look.
Key benefits & differentiators:
- Compatible with all three CRL gate and door pivots — ideal for frameless glass pivot doors
- Durable 304 alloy stainless steel covers for long-lasting finish
- Precision fit for monolithic tempered 3/4" glass to maintain structural integrity
Door sizing guidelines:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limits, use full door rails.
Glass fabrication required:
One 3/4" (19 mm) diameter hole and corner notch in the glass panel.
Comes with:
Template and instructions for glass fabrication and installation.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. For more information, view the Stainless Steel Disclaimer in the Technical References section below.
Call or order online to add DORMAKABA Top Patch Fitting PT2034PS to your project.
Specifications
CAD Drawings - dwg
