Dormakaba BTS75V Floor Spring Door Closer, Size 1-4, 105° Hold-Open
Dormakaba BTS75V Floor Spring Door Closer, Size 1-4, 105° Hold-Open
Regular price
$1,344.86 CAD
Regular price
Sale price
$1,344.86 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BTS75V105H0
Shipping Weight: 12.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

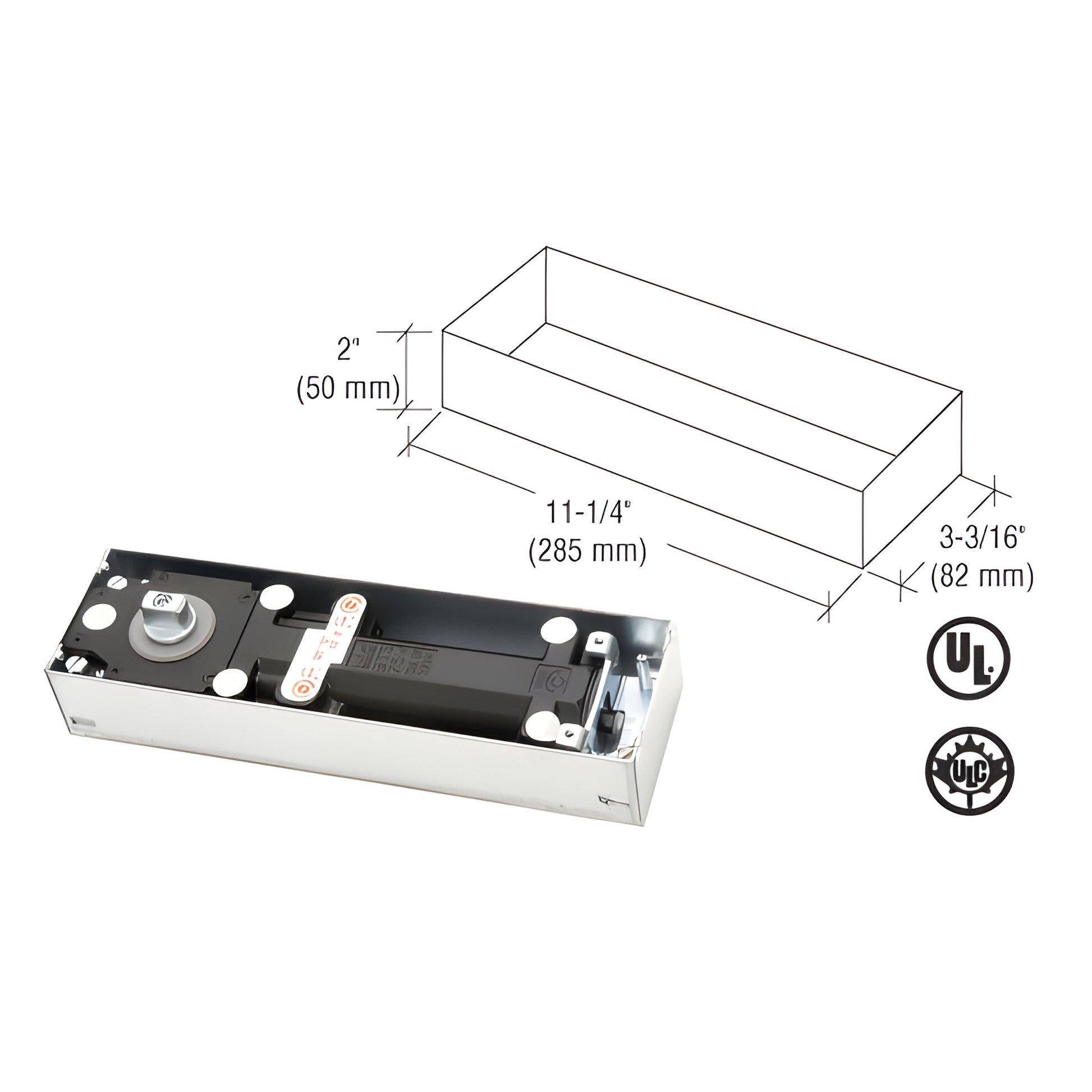

Body Height
2
Body Length
11-1/4
Body Width
3-1/6
Brand
Dormakaba
Closer Body With Box
Yes
Closer Type
Floor Closer
Handing
Double Acting
Hold Open
105°
Independent Closing and Latching Valves
Yes
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
42 Inches
Maximum Door Width - Interior
42 Inches
Maximum Weight Center Hung
260 Pounds
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Series
BTS75V
Similar
BTS802, J993HOD, J990NHOD, J904HOD
Spring Size
1.2.3.4
UL Listed
Yes
Overview
- Adjustable spring power: Size 1 to 4
- For commercial doors up to 42" (1067 mm) wide and weights up to 260 lbs.
- 25-year limited warranty
- ANSI A156.4 Grade 1; UL and CUL listed
The Dormakaba® BT75V Series floor-mounted door closers deliver compact, heavy-duty performance for commercial and institutional installations. The low-profile closer fits where larger body units won't, and the universal non-handed design with interchangeable spindles supports single- or double-acting, center-hung or offset applications while accommodating most floor coverings and threshold heights. Available in 90° or 105° hold-open and no-hold-open full-swing models to 175°. Optional accessories include cover plates, pivots, center-hung and offset arms.
Product Warning:
Spindle is not included. Spindles available to fit different heights/types: CRL9040S or CRL9050S.
SKU: BTS75V105H0
Durable, ANSI Grade 1 floor-mounted door closer for commercial doors — order SKU BTS75V105H0 or contact CRL Customer Service to buy.
