Dormakaba BTS75V Floor Mount Door Closer, Adj Power 1-4, 90° Hold-Open
Dormakaba BTS75V Floor Mount Door Closer, Adj Power 1-4, 90° Hold-Open
Regular price
$1,344.86 CAD
Regular price
Sale price
$1,344.86 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BTS75V90H0
Shipping Weight: 12.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

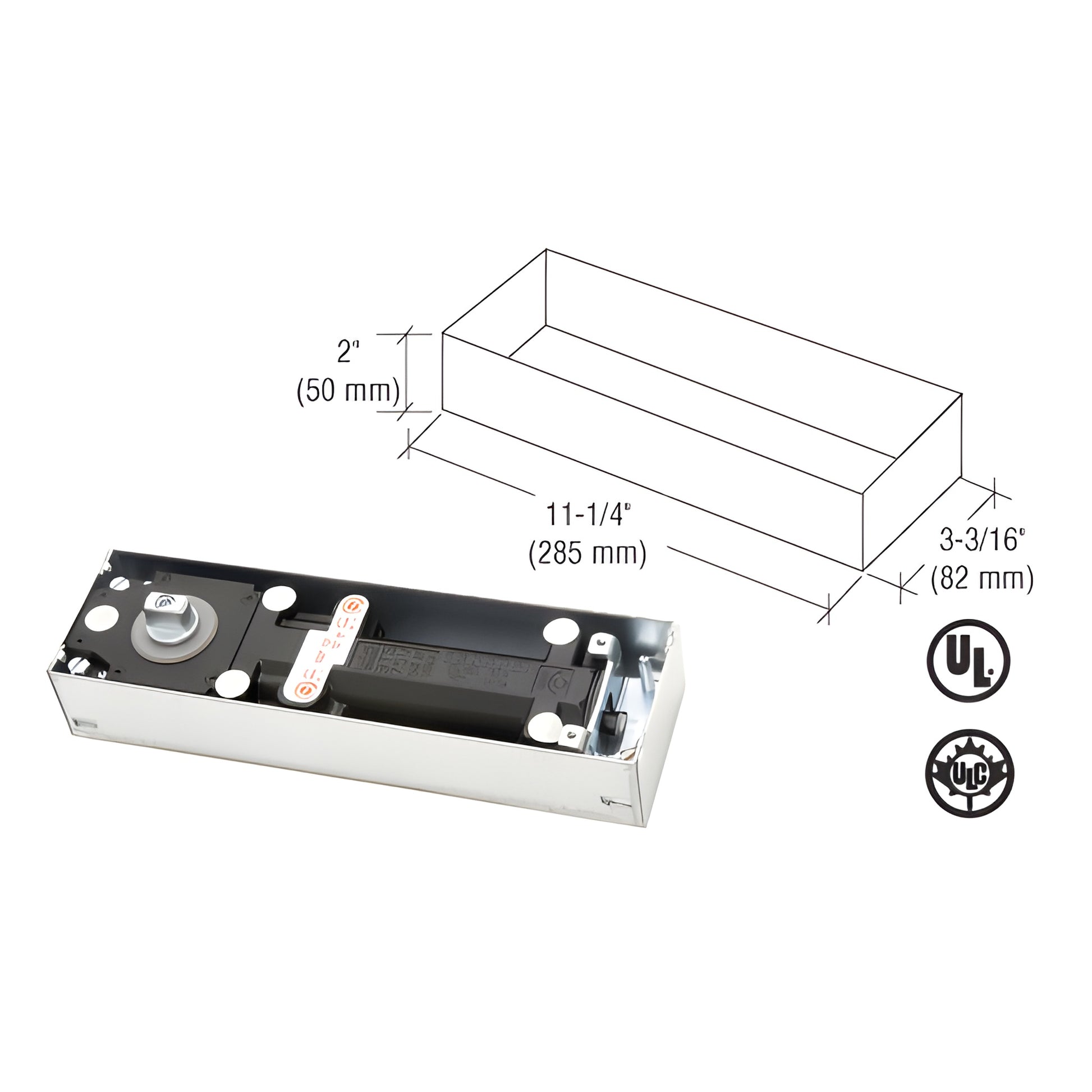

Body Height
2
Body Length
11-1/4
Body Width
3-1/6
Brand
Dormakaba
Closer Body With Box
Yes
Closer Type
Floor Closer
Handing
Double Acting
Hold Open
90°
Independent Closing and Latching Valves
Yes
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
42 Inches
Maximum Door Width - Interior
42 Inches
Maximum Weight Center Hung
260 Pounds
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Series
BTS75V
Similar
BTS802, J993HOD, J990NHOD, J904HOD
Spring Size
1.2.3.4
UL Listed
Yes
Overview
- Adjustable spring power: Size 1 to 4
- Fits doors up to 42" (1.07 m) wide; supports up to 260 lb (118 kg)
- 25‑year limited warranty
- ANSI A156.4 Grade 1; UL and CUL listed
The Dormakaba® BT75V Series Floor Mounted Door Closers (SKU: BTS75V90H0) are compact, floor-mounted door closers designed for flexible commercial and institutional installations. The small body size lets you install where larger closers won't fit. A universal, non-handed design with interchangeable spindles supports single- or double-acting doors, center-hung or offset applications, and accommodates most floor coverings and threshold heights. Models include 90º or 105º hold-open and no-hold-open full-swing versions up to 175º. Accessories available: cover plates, pivots, center-hung and offset arms.
Product Warning:
Closer body only — spindle not included. Spindles available: CRL9040S or CRL9050S to fit different heights and types.
Choose the Dormakaba BT75V for a compact, heavy-duty floor-mounted door closer with Grade 1 performance and long-term warranty—contact us to order or request spindle compatibility assistance.
