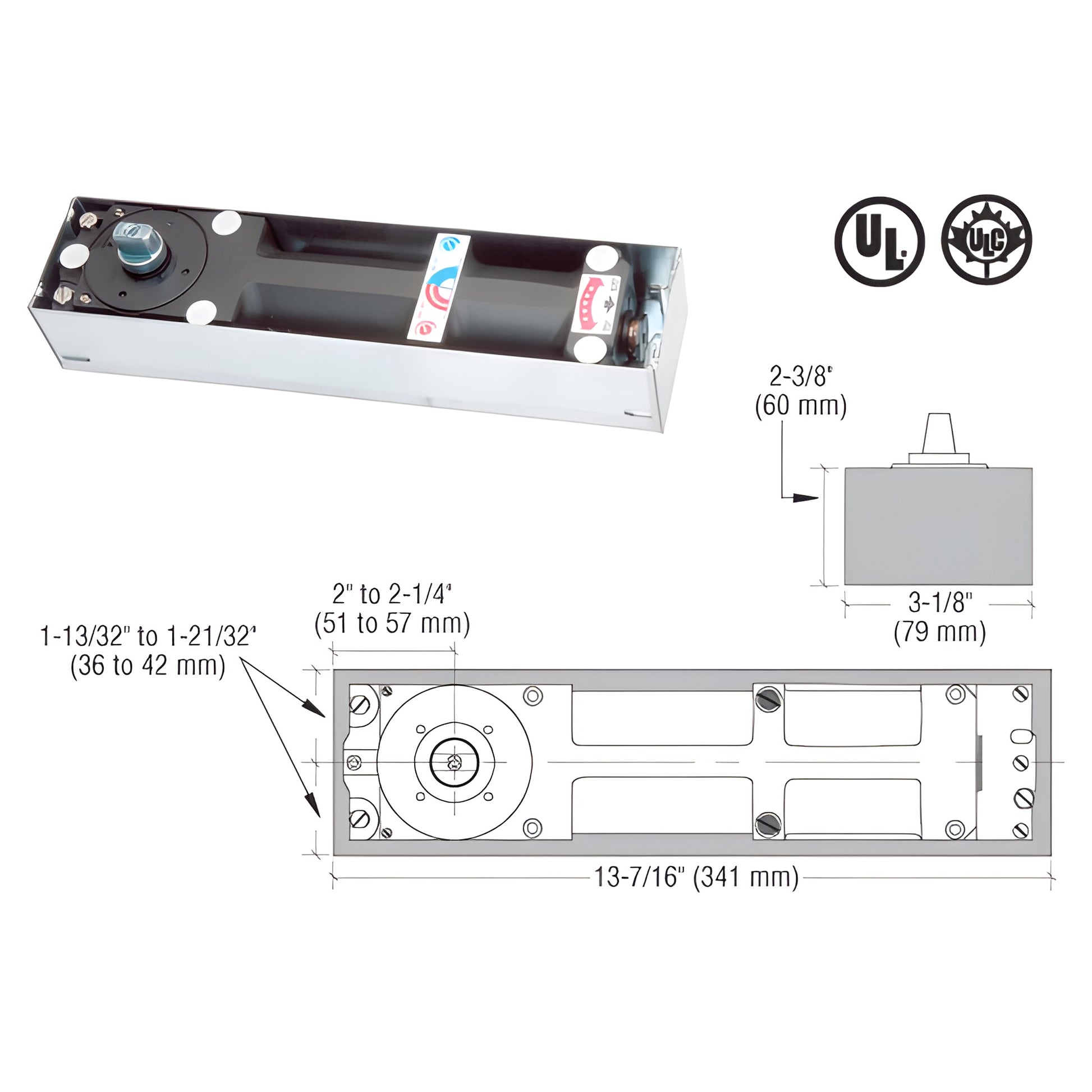

Dormakaba BTS80 S2 (EN4) Floor-Mounted Door Closer Body Cement Case

• 660 lb (299 kg) capacity — supports heavy commercial doors up to 660 Lb
• 54" (1.37 m) door applications
• Interchangeable spindle heights for varied threshold and floor-covering conditions
• Selective multi-point hold-open positions for controlled propping
• Variable delayed action for compliance with accessibility requirements
• 25 Year Limited Warranty
• UL Listed

The Dormakaba® BTS80 Series Floor Mounted Door Closers (SKU: BTS802) deliver a compact, non-handed floor-mounted door closer engineered for commercial and institutional use. Its small body fits where larger closers won't, while interchangeable spindles allow one mechanism to handle single- or double-acting, center-hung or offset doors — accommodating virtually any floor covering or threshold height. The selective multi-point hold-open and variable delayed action features make this a versatile floor-mounted door closer for heavy doors and high-traffic entryways. Cover plates, pivots, center-hung and offset arms are available as accessories.


NOTE: Designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.

SPECIFICATIONS:
Maximum Door Weight: 660 Lbs. (299 kg)
Maximum Interior Door Width: 48" (1.22 m)
Maximum Exterior Door Width: 42" (1.07 m)


Product Warning:

Closer body only — spindle is not included. Spindles available for different heights/types: CRL9040S or CRL9050S.


For pricing, spindle options, or to order the Dormakaba BTS802 floor-mounted door closer for heavy doors, contact sales or add to cart now.
